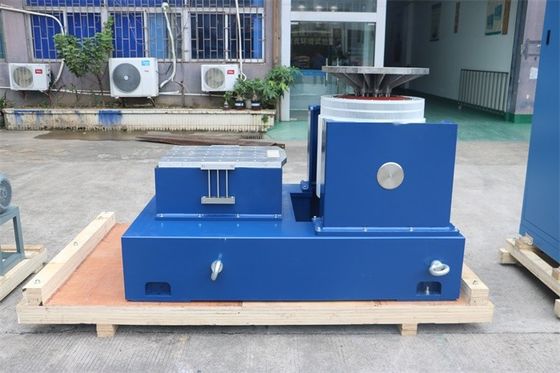

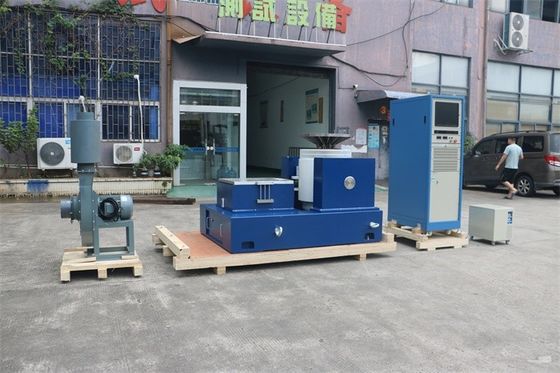

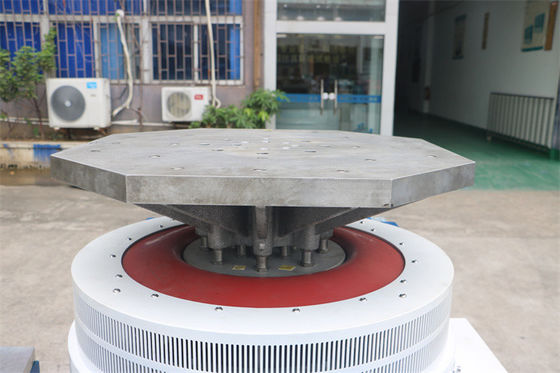

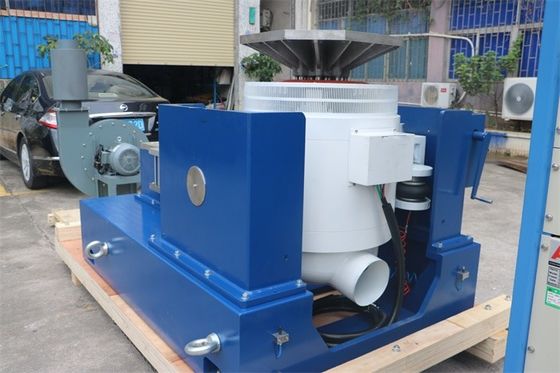

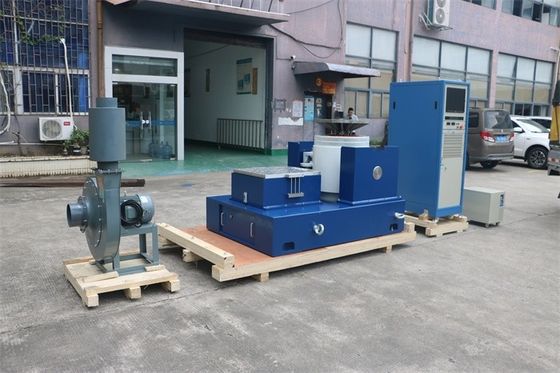

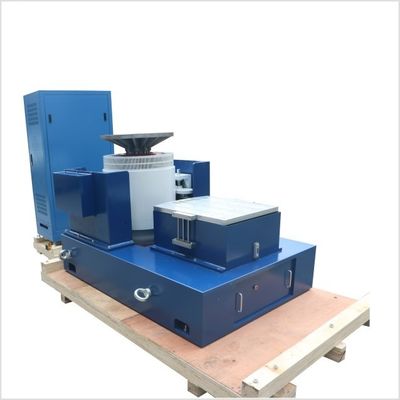

Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard

Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard
Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard

Large Image :  Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: CE
Model Number: VTS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now chat now
Detailed Product Description
Customized Support: OEM ODM Sine Force: 10kN
Random Force: 10kN Shock Force: 20kN
Frequency Range: 1-3000Hz Displacement: 51mm
Velocity: 2.0 Table Size: 1000x1000mm
Highlight:

Shock and Vibe Testing Electrodynamic Shaker

,

Shock And Vibe Testing Electrodynamic Shaker

,

Electrodynamic Vibration Testing Equipment

Electrodynamic Shaker For Shock And Vibe Testing Meets MIL-STD-810 Test Standard
Key Specifications
Attribute Value
Customized support OEM ODM
Sine force 10kN
Random force 10kN
Shock force 20kN
Frequency range 1-3000Hz
Displacement 51mm
Velocity 2.0
Table size 1000x1000mm
In the demanding fields of military, aerospace, and high-reliability industrial applications, ensuring equipment can withstand extreme environmental conditions is critical. Our Electrodynamic Shaker for Shock and Vibration Testing meets the exacting MIL-STD-810 test standard, providing a reliable solution for evaluating product resilience against shock and vibration.
Understanding the MIL-STD-810 Standard
The MIL-STD-810 standard, established by the United States Department of Defense, outlines environmental test methods for military equipment. It includes shock, vibration, temperature, humidity, and altitude tests. Compliance ensures products can function effectively in harsh environments, allowing manufacturers to identify weaknesses and enhance reliability.
Key Features
  • High-Performance Vibration Generation: Wide frequency range (5Hz to 3000Hz) with maximum displacement of ±75mm and accelerations over 100g
  • Precise Shock Simulation: Accurate control over pulse shape, duration, and amplitude for impact and explosion simulation
  • MIL-STD-810 Compliance: Designed and calibrated to meet strict military test requirements
  • User-Friendly Operation: PC-based control system with intuitive software for test setup and monitoring
  • Robust Construction: Sturdy alloy frame and durable components for long-term reliability
Technical Specifications
Parameter Value
Rated Sine/Random/Shock Force 5,000 kgf/5,000kgf/10,000 kgf
Frequency Range 5-2,800 Hz
Max/Continuous Displacement p-p 51mm/51 mm
Max. Velocity 2.0 m/s
Max.Sine/Random Acceleration 100/60g
Armature Diameter 440 mm
Fundamental Resonance Frequency 2,400 Hz(nom.)±5%
Allowable Armature Overturning Moment 1.000 Nm
Dimension (LxWxH) 1,650 mm x 1,130mm x 1,280mm
Weight (Uncrated) 4,500 kg
Applications
Military Equipment: Testing communication devices, weapons systems, and navigation equipment for field reliability.
Aerospace Components: Validating aircraft engines, avionics, and landing gear against flight conditions.
High-Reliability Industrial Products: Testing equipment for oil/gas, power generation, and transportation infrastructure.
Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard 0 Electrodynamic Shaker For Shock And Vibe Testing Meets MIL - STD - 810 Test Standard 1
Conclusion
Our Electrodynamic Shaker provides comprehensive testing solutions with high-performance vibration and shock generation, MIL-STD-810 compliance, and robust construction. Contact us to discuss custom testing solutions for your specific requirements.
