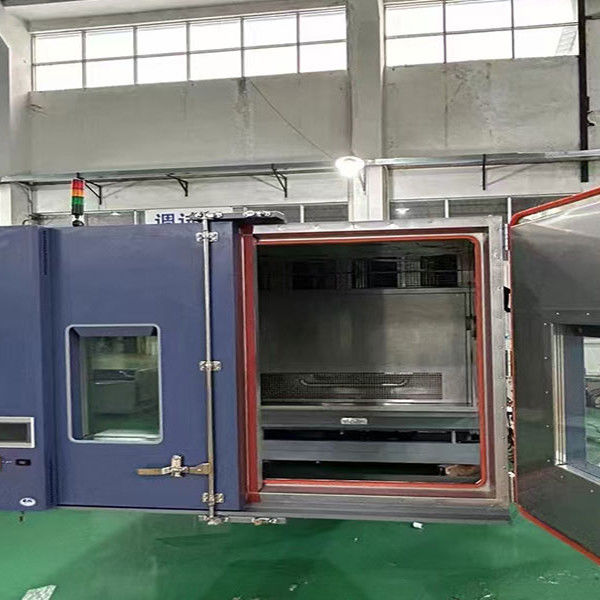

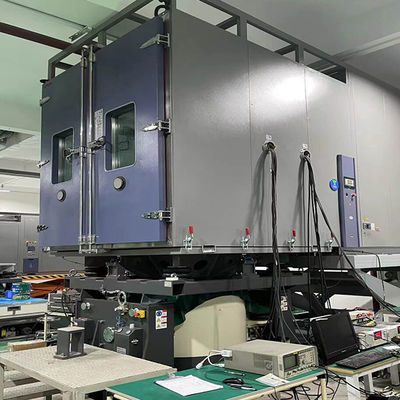

Customized Climate Vibration Test Chamber For Aerospace And Mil Std Defense Testing

In the aerospace and defense sectors, where the margin for error is infinitesimal, the Customized Climate Chamber with Vibration Test emerges as a technological marvel. Engineered to meet the exacting demands of these industries, it serves as a crucible for evaluating the performance and reliability of components and systems under the most extreme and realistic conditions.

This state-of-the-art chamber is purpose-built to create and control a highly customized climate environment while simultaneously subjecting test specimens to precise vibration stimuli. Tailored specifically for aerospace and Mil-Std defense testing, it caters to manufacturers, research institutions, and military organizations.

The chamber replicates the harsh and dynamic conditions that aerospace and defense equipment encounter during their operational lifespan, including extreme temperatures, humidity levels, rapid pressure changes experienced in high-altitude flight, and intense vibrations induced by rocket launches, missile flights, and military vehicle operations.

• Robust and Modular Construction
  Constructed with high-strength alloys or carbon steel, featuring durable stainless steel or aerospace-grade coating exterior, thermally efficient insulation interior, and precision sealing mechanisms with impact-resistant viewing window.
• Precision Climate Control System
  Achieves temperature range from -70°C to +150°C (±0.5°C) and humidity control from 5% to 95% RH (±3% RH) using high-capacity refrigeration units, heating elements, and advanced humidification systems governed by intelligent PID controllers.
• Advanced Vibration Testing System
  Generates vibration frequencies from 2Hz to 5000Hz with amplitudes up to 50mm using electrodynamic shakers and servo-hydraulic actuators, capable of executing complex vibration sequences and shock pulses.
• Intuitive Control and Data Acquisition
  Features user-friendly touchscreen interface for parameter configuration, real-time visualizations, comprehensive data acquisition system, and automated test report generation in industry-standard formats.
• Comprehensive Safety Systems
  Includes over-temperature/pressure protection, emergency stop buttons, fail-safe mechanisms, overload protection, displacement limit sensors, and continuous component monitoring for preventive maintenance.

• Temperature Range: -70°C to +150°C (±0.5°C)
• Humidity Range: 5% to 95% RH (±3% RH)
• Vibration Frequency: 2Hz to 5000Hz
• Vibration Amplitude: Up to 50mm
• Vibration Force: 2000kg.f (20kN)
• Refrigerant: Environmentally friendly R23/R404
