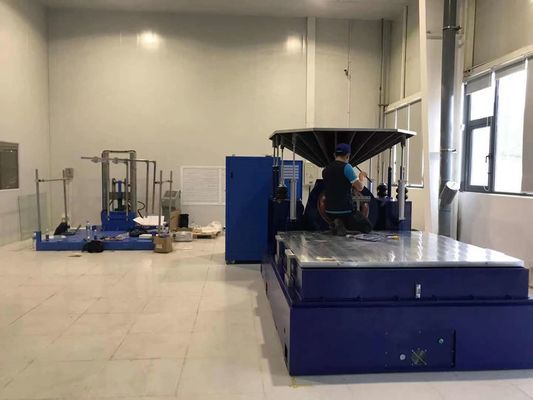

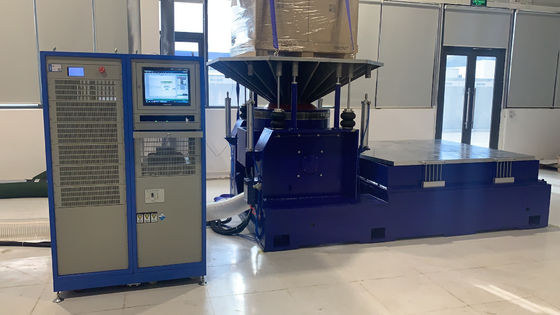

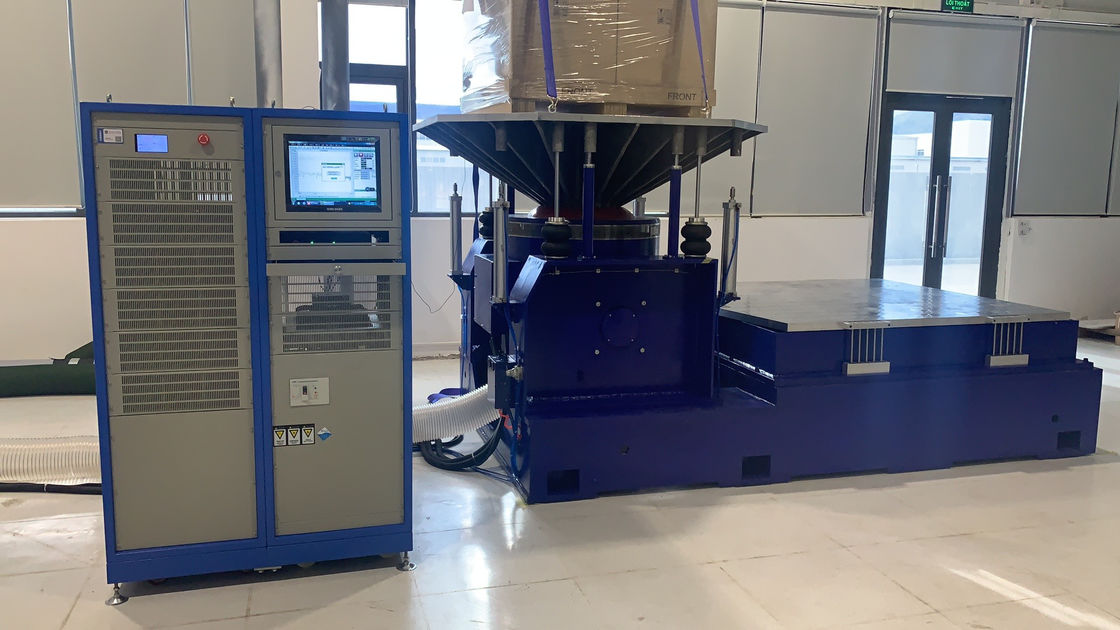

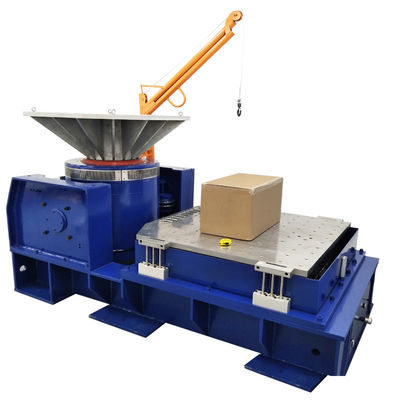

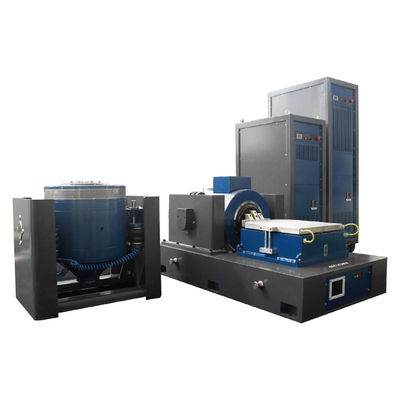

Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing

Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing
Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing

Large Image :  Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: CE
Model Number: VTS-40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now
Detailed Product Description
Customized Support: OEM ODM Sine Force: 40kN
Random Force: 40kN Shock Force: 80kN
Frequency Range: 1-3000Hz Displacement: 100mm
Velocity: 2.0 Table Size: 1500x1500mm
Highlight:

Electromagnetic Vibration Table

,

Vibration Testing Instrument

,

MIL STD Vibration Testing Instrument

Electromagnetic Vibration Table for MIL-STD Vibration Testing

In high-stakes military applications, equipment reliability is critical. Our electromagnetic vibration table is engineered to perform rigorous MIL-STD vibration testing, ensuring military gear can withstand extreme operational conditions.

Product Specifications
Attribute Value
Customized support OEM ODM
Sine force 40kN
Random force 40kN
Shock force 80kN
Frequency range 1-3000Hz
Displacement 100mm
Velocity 2.0
Table size 1500x1500mm
Key Features
  • High-Performance Vibration Generation: 5Hz to 3000Hz frequency range with precise control up to 100g acceleration
  • MIL-STD Compliance: Meets all requirements for sinusoidal, random, and shock vibration tests
  • Customizable Test Profiles: Programmable parameters for specific equipment requirements
  • Robust Construction: High-strength materials withstand demanding test conditions
  • Advanced Control System: PC-based software with real-time monitoring and data logging
Technical Specifications
Rated Force
Sine/Random: 4,000 kgf
Shock: 8,000 kgf
Frequency Range
5-3,000 Hz
Max. Displacement
100 mm p-p
Max. Velocity
2.0 m/s
Armature Details
Diameter: 440 mm
Mass: 30 kg
Load Capacity
Max. Vertical Load: 500 kg
Military Applications
  • Communication Equipment: Testing radios, satellite phones, and data transmission devices
  • Weapons Systems: Validating firearms, missile launchers, and artillery reliability
  • Navigation Systems: Ensuring GPS and surveillance equipment accuracy under vibration
  • Vehicle Components: Testing engines, suspension systems, and control panels
Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing 0 Vibration Testing Instrument Electromagnetic Vibration Table Runs MIL STD Vibration Testing 1

Our electromagnetic vibration table provides defense contractors and military organizations with a comprehensive solution for equipment validation. With MIL-STD compliance and customizable testing capabilities, it ensures military gear meets the highest reliability standards for field operations.

Tag:

Random Vibration Testing Equipment,

Shock Vibration Shaker Machine,

Spacecraft Components Vibration Table
