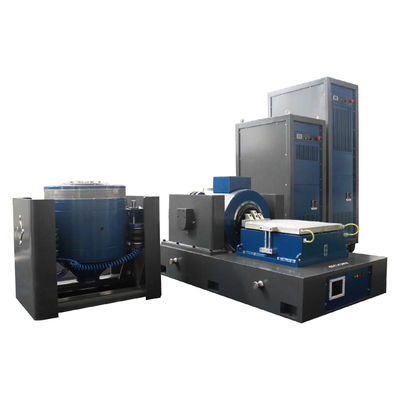

Electrodynamic Vibration System Runs MIL STD 810G Vibration Testing For Missiles Weapons

Large Image : Electrodynamic Vibration System Runs MIL STD 810G Vibration Testing For Missiles Weapons

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	CE
Model Number:	VTS-50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Sine Force:	50kN
Random Force:	50kN	Shock Force:	100kN
Frequency Range:	1-3000Hz	Displacement:	76mm
Velocity:	2.0	Table Size:	1200x1200mm
Highlight:	Electrodynamic Vibration System for Missiles , MIL STD 810G Vibration System , Electrodynamic Vibration System

Electrodynamic Vibration System for MIL-STD-810G Testing of Missiles & Weapons

Attribute	Value
Customized support	OEM ODM
Sine force	50kN
Random force	50kN
Shock force	100kN
Frequency range	1-3000Hz
Displacement	76mm
Velocity	2.0
Table size	1200x1200mm

Our advanced electrodynamic vibration system is engineered to conduct vibration testing in strict accordance with MIL-STD-810G, providing essential evaluation of missile and weapon resilience under various environmental conditions.

MIL-STD-810G Vibration Testing Importance

MIL-STD-810G simulates real-world vibrations encountered during transportation, launch, and flight. This testing identifies potential weaknesses in design and construction, enhancing performance, safety, and effectiveness of military assets while reducing field failure risks.

System Features

High-Power Vibration Generation: 5Hz to 3000Hz frequency range with precise control up to 100g acceleration
MIL-STD-810G Compliance: Executes all relevant vibration test procedures including sinusoidal, random, and shock tests
Customizable Test Profiles: Adjustable frequency, amplitude, duration, and waveform for specific weapon requirements
Robust Construction: High-strength materials with stable test platform and multiple attachment points
Advanced Control System: PC-based interface with real-time monitoring and data analysis capabilities

Technical Specifications

Parameter	Value
Rated Sine/Random/Shock Force	5,000 kgf/5,000kgf/10,000 kgf
Frequency Range	5-2,500 Hz
Max Displacement p-p	100mm/90mm
Max. Velocity	1.8mm
Max. Acceleration	83/60g
Armature Diameter	440 mm
Fundamental Resonance Frequency	2,100 Hz (nom.) ±5%
Max. Vertical Load Support	500 kg

Applications

Missile Guidance Systems: Tests sensors and control electronics under vibration to ensure targeting accuracy

Weapon Fuzing Systems: Evaluates detonation mechanisms to prevent premature or failed detonations

Propulsion Systems: Assesses engine, nozzle, and fuel system durability under launch conditions

Strategic Testing Solution

Our electrodynamic vibration system provides comprehensive MIL-STD-810G compliance for missile and weapon testing, offering customizable profiles, robust construction, and advanced control to enhance product reliability and military effectiveness.
