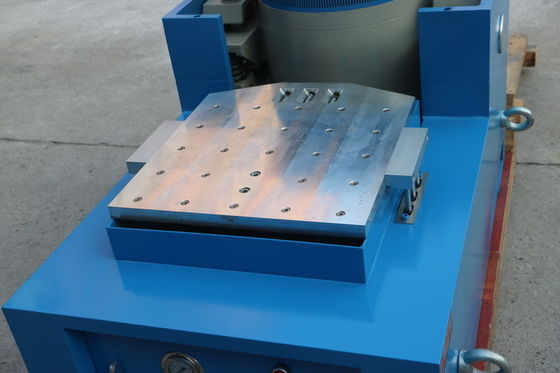

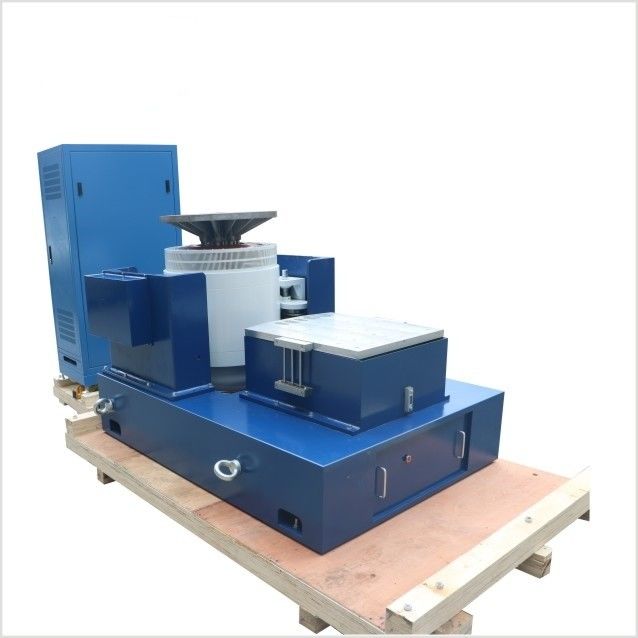

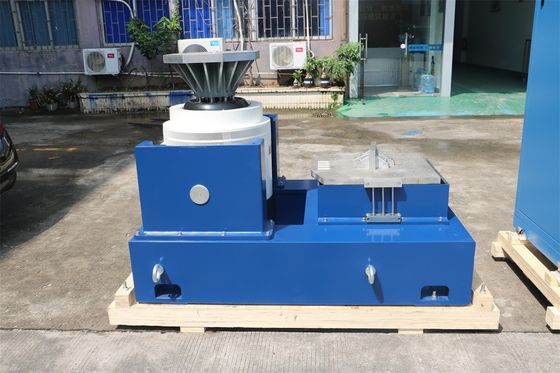

Vibration Shaker System for Sine Burst Test, Random and Sine Vibration Testing

Large Image : Vibration Shaker System for Sine Burst Test, Random and Sine Vibration Testing

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	CE
Model Number:	VTS-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Sine Force:	20kN
Random Force:	20kN	Shock Force:	40kN
Frequency Range:	1-3000Hz	Displacement:	76mm
Velocity:	2.0	Table Size:	1200x1200mm
Highlight:	Sine Burst Vibration Shaker System , Sine Vibration Shaker System , Random Vibration Shaker System

Vibration Shaker System for Sine Burst, Random and Sine Vibration Testing

Key Specifications

Attribute	Value
Customized support	OEM ODM
Sine force	20kN
Random force	20kN
Shock force	40kN
Frequency range	1-3000Hz
Displacement	76mm
Velocity	2.0
Table size	1200x1200mm

Comprehensive Vibration Testing Solution

In today's demanding product development environment, vibration testing has become essential across aerospace, automotive, electronics, and consumer goods industries. Our vibration shaker system provides complete testing capabilities for sine burst, random, and sine vibration tests to evaluate product reliability under real-world conditions.

Testing Capabilities

Sine Burst Testing: Identifies resonance frequencies through short-duration, high-amplitude sine waves, crucial for aerospace components and mechanical systems.
Random Vibration Testing: Simulates complex real-world vibration patterns encountered during transportation and operation, essential for electronics and industrial equipment.
Sine Vibration Testing: Evaluates product response to specific frequencies over time, critical for automotive components and vibration-sensitive applications.

System Components

The electrodynamic or hydraulic vibration shaker system consists of:

High-power amplifier for vibration generation
Precision controller for test parameter management
Rigid shaker table for uniform vibration transfer
Accelerometers for real-time vibration measurement

Technical Specifications

Rated Sine/Random/Shock Force	3,000 kgf/3,000kgf/6,000 kgf
Frequency Range	5-3,000 Hz
Max./Continuous Displacement p-p	51 mm/51 mm
Max.Velocity	2.0 m/s
Max.Sine/Random Acceleration	100/60g
Armature Diameter	440 mm
Fundamental Resonance Frequency	2t500Hz(nom.)±5%
Allowable Armature Overturning Moment	500 Nm
Armature Mass	30 kg
Inserts Size (Standard)	M10
Load Attachment Points (Standard)	17
Natural Frequency-Thrust Axis	<3Hz
Max. Vertical Load Support	500 kg
Stray field @152 mm above table	≤1mT (10 gauss)
Dimension LxWxH	1,270 mmx980mmx1,135mm
Weight (Uncrated)	2,500 kg

System Features

High-Precision Control: ±0.1% frequency accuracy and ±1% amplitude accuracy for reliable test results
Wide Dynamic Range: Accommodates both sensitive microelectronics and heavy-duty industrial components
Robust Construction: High-strength steel components with safety features for continuous operation

Industry Applications

Our vibration shaker system serves critical testing needs across multiple industries:

Aerospace: Testing aircraft components for resonance and flight vibration resistance
Automotive: Evaluating engine mounts, suspension systems, and interior components
Electronics: Ensuring device reliability during transportation and operation

Reliable Testing Solution

Our vibration shaker system provides comprehensive testing capabilities to ensure product reliability across industries. With precise control, robust construction, and versatile testing options, it delivers accurate results for quality assurance and product development needs.
