Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles

Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles
Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles

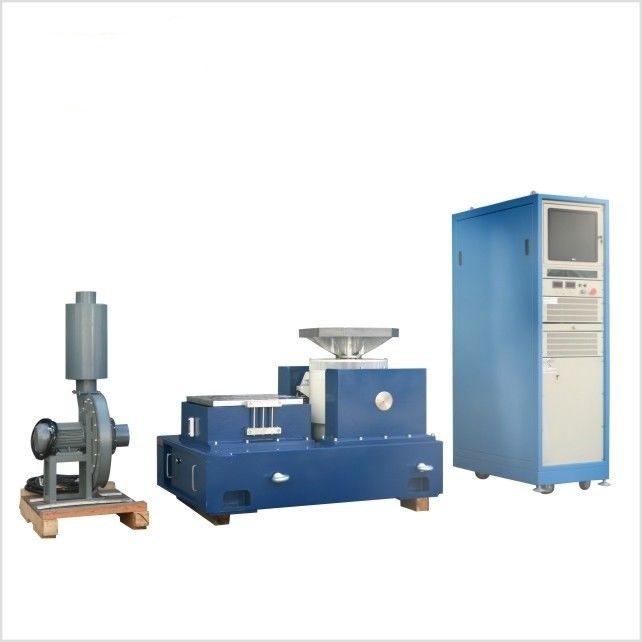

Large Image :  Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: CE
Model Number: VTS-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now
Detailed Product Description
Customized Support: OEM ODM Sine Force: 20kN
Random Force: 20kN Shock Force: 40kN
Frequency Range: 1-3000Hz Displacement: 76mm
Velocity: 2.0 Table Size: 1200x1200mm
Highlight:

Wheeled Vehicles Shaker Table

,

Electrodynamic Shaker Table

,

Slip Table Vibration Testing Shaker Table

Electrodynamic Shaker Table for Slip Table Vibration Testing of Wheeled Vehicles
Key Specifications
Attribute Value
Customized support OEM ODM
Sine force 20kN
Random force 20kN
Shock force 40kN
Frequency range 1-3000Hz
Displacement 76mm
Velocity 2.0
Table size 1200x1200mm
Advanced Vibration Testing Solution

Our electrodynamic shaker table provides precise simulation of real-world vibration scenarios for wheeled vehicles, enabling comprehensive testing of vehicle components and full-scale prototypes in controlled laboratory conditions.

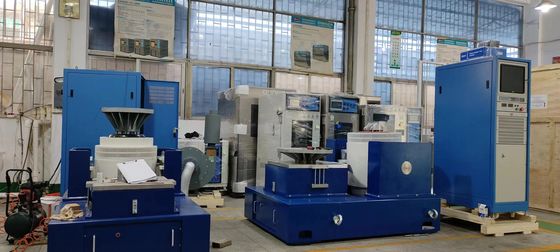

Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles 0
Technical Specifications
Rated Force
Sine: 3,000 kgf
Random: 3,000 kgf
Shock: 6,000 kgf
Frequency Range
5-3,000 Hz
Displacement
Max/Continuous: 51 mm p-p
Velocity & Acceleration
Max Velocity: 2.0 m/s
Max Sine/Random Acceleration: 100/60g
Physical Dimensions
1,270 mm × 980 mm × 1,135 mm
Weight: 2,500 kg (Uncrated)
Load Capacity
Max Vertical Load Support: 500 kg
Armature Mass: 30 kg
Key Features
  • High-precision vibration control with ±0.1% frequency accuracy
  • Wide frequency range (1-3000Hz) for comprehensive testing scenarios
  • Robust construction with high-strength materials for durability
  • Customizable vibration profiles for different vehicle types
  • Advanced safety features including overload protection
Applications

Our electrodynamic shaker table is ideal for testing various wheeled vehicles including:

  • Passenger vehicle components (seats, infotainment systems, airbag sensors)
  • Commercial vehicle durability testing (engine mounts, transmission systems)
  • Off-road vehicle performance evaluation (chassis, suspension, tires)

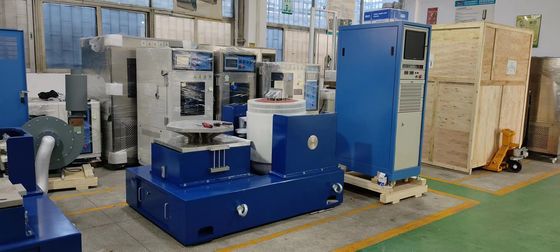

Electrodynamic Shaker Table For Slip Table Vibration Testing Of Wheeled Vehicles 1
Comprehensive Testing Solution

This electrodynamic shaker table enables automotive manufacturers to evaluate and improve vehicle reliability, safety, and performance through accurate vibration simulation. The system's precise control and robust construction make it an essential tool for quality assurance in wheeled vehicle development.
