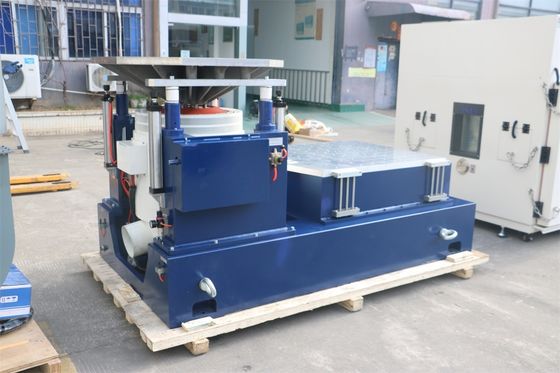

Vibration Shaker Machine For IEC 60068 - 2 - 6 Sine Sweep Vibration Testing

Large Image : Vibration Shaker Machine For IEC 60068 - 2 - 6 Sine Sweep Vibration Testing

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	CE
Model Number:	VTS-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Sine Force:	20kN
Random Force:	20kN	Shock Force:	40kN
Frequency Range:	1-3000Hz	Displacement:	76mm
Velocity:	2.0	Table Size:	1200x1200mm
Highlight:	Sine Sweep Vibration Shaker Machine , Vibration Shaker Machine

Vibration Shaker Machine For IEC 60068 - 2 - 6 Sine Sweep Vibration Testing

Product Specifications

Attribute	Value
Customized support	OEM ODM
Sine force	20kN
Random force	20kN
Shock force	40kN
Frequency range	1-3000Hz
Displacement	76mm
Velocity	2.0
Table size	1200x1200mm

Key Performance Features

High-Precision Frequency Control

±0.1% accuracy for reliable resonant frequency identification

Precise Amplitude Control

±1% accuracy of set acceleration value for exact test conditions

Robust Construction

High-strength materials withstand demanding vibration testing

Technical Specifications

Rated Forces

Sine/Random: 3,000 kgf
Shock: 6,000 kgf

Frequency Range

5-3,000 Hz

Max Displacement

51 mm peak-to-peak

Max Velocity

2.0 m/s

Armature Details

Diameter: 440 mm
Mass: 30 kg

Dimensions

1,270 × 980 × 1,135 mm
Weight: 2,500 kg

Product Overview

The IEC 60068-2-6 compliant vibration shaker machine is engineered for precise sine sweep vibration testing, essential for evaluating product durability under real-world vibration conditions. This system provides controlled laboratory simulation of dynamic vibration scenarios encountered during transportation, storage, and operation.

Standard Compliance

This vibration testing system meets all requirements of IEC 60068-2-6 for sine sweep vibration testing, including precise frequency range control, defined sweep rates, and specified amplitude levels. The standardized testing process ensures consistent evaluation across industries and simplifies compliance certification.

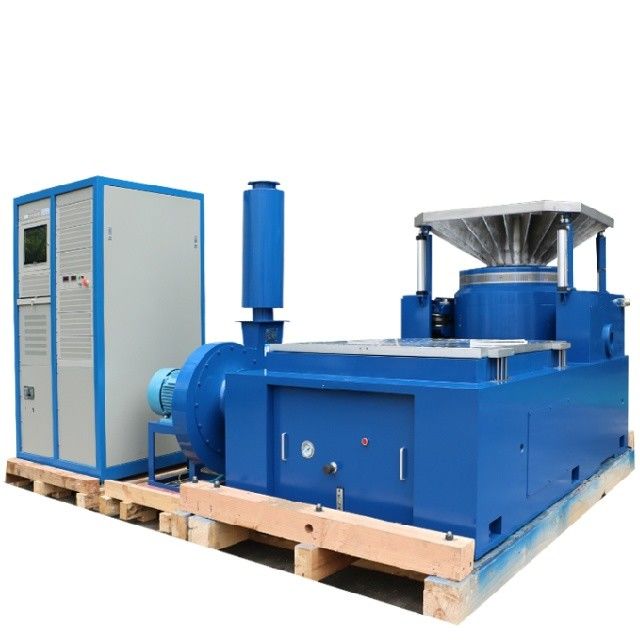

System Components

The vibration shaker machine consists of:

Electrodynamic or hydraulic vibration generator
High-performance power amplifier
Precision controller with real-time parameter adjustment
Accelerometer sensors for vibration measurement
1200×1200mm testing table with secure mounting points

Industry Applications

Electronics Testing

Evaluate component durability in smartphones, servers, and other electronic devices. Identify resonant frequencies that could cause circuit board cracks or component dislodgment.

Automotive Component Testing

Simulate engine vibration patterns and road conditions for testing engine components, dashboards, and interior assemblies to prevent operational failures and annoying rattles.

Aerospace Testing

Verify structural integrity of aircraft components under varying flight conditions, ensuring safety and reliability of critical aerospace systems.

Testing Capabilities

Our vibration shaker machine provides comprehensive testing solutions with:

Precision sine sweep vibration testing per IEC 60068-2-6
Customizable test profiles for specific product requirements
Real-time monitoring and adjustment of vibration parameters
Safety features including overload protection and emergency stop
Support for both electrodynamic and hydraulic vibration generation
