Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing

Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing
Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing

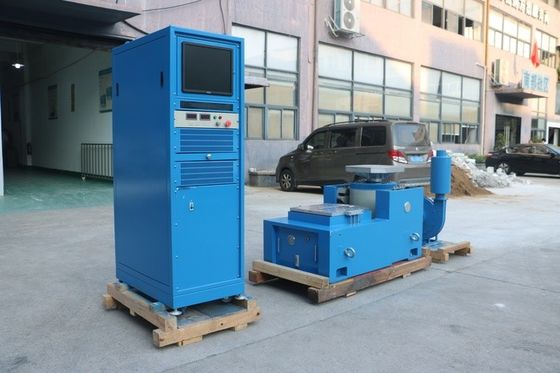

Large Image :  Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: CE
Model Number: VTS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now chat now
Detailed Product Description
Customized Support: OEM ODM Sine Force: 20kN
Random Force: 20kN Shock Force: 40kN
Frequency Range: 1-3000Hz Displacement: 76mm
Velocity: 2.0 Table Size: 1200x1200mm
Highlight:

Sinusoidal Vibration Table

,

Slip Table Vibration Table

,

ECSS Vibration Table

Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing
Product Specifications
Attribute Value
Customized support OEM ODM
Sine force 20kN
Random force 20kN
Shock force 40kN
Frequency range 1-3000Hz
Displacement 76mm
Velocity 2.0
Table size 1200x1200mm
Advanced Vibration Testing for Aerospace Applications
In the aerospace industry, ensuring the reliability and durability of spacecraft and related components is paramount. Our random vibration table with slip table performs ECSS-E-10-03A sinusoidal vibration testing to evaluate performance under launch, in-orbit, and re-entry conditions.
Simulating Launch and In-Orbit Conditions
Spacecraft experience intense vibrations during launch and in-orbit operations. Our testing equipment accurately replicates these conditions to identify potential weaknesses in satellite electronics, structural elements, and propulsion systems before launch.
ECSS-E-10-03A Standard Compliance
Our equipment meets all requirements of the ECSS-E-10-03A standard for frequency range, amplitude levels, and test duration, ensuring your aerospace products can withstand extreme space conditions.

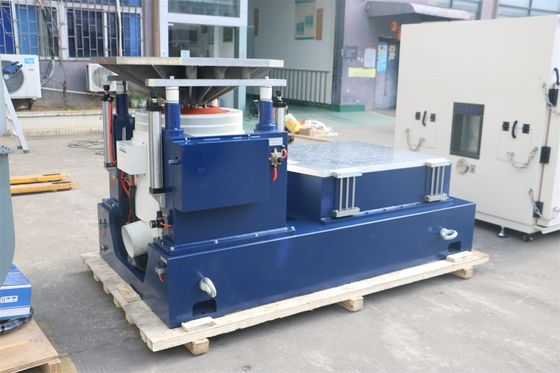

Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing 0
Technical Features
Rated Sine/Random/Shock Force: 2,200 kgf/2.000 kgf/4,400 kgf
Frequency Range: 5-3.000 Hz
Max. Displacement p-p: 76 mm
Max. Velocity: 2.0 m/s
Max. Sine/Random Acceleration: 88/60g
Armature Diameter: 340 mm
Fundamental Resonance Frequency: 2,700 Hz (nom.) ± 5%
Allowable Armature Overturning Moment: 500 Nm
Armature Mass: 25 kg
Inserts Size (Standard): M10
Load Attachment Points: 21
Natural Frequency-Thrust Axis: <3Hz
Max. Vertical Load Support: 400 kg
Stray field @ 152 mm above table: ≤1mT (10 gauss)
Dimensions (LxWxH): 1,160 mm x 880mm x 1.050mm
Weight (Uncrated): 1700 kg
Key Performance Advantages
  • High-precision vibration generation with minimal distortion
  • Versatile slip table for multi-directional movement simulation
  • Robust construction with high-strength materials
  • Advanced safety features for operator and specimen protection
  • Precisely controlled frequency and amplitude parameters
  • Capable of executing complex vibration profiles
The slip table feature enables testing of components with relative movement requirements, providing more comprehensive simulation of real-world aerospace conditions.
Aerospace Testing Applications
Satellite Component Testing
Ideal for evaluating satellite structures, electronic boards, and payload systems to ensure they withstand launch vibrations and in-orbit conditions.
Launch Vehicle Evaluation
Tests engine mounts, fuel lines, and control systems to verify performance under extreme launch vibrations.
Space Probe Quality Assurance
Ensures reliability of communication systems, scientific instruments, and thermal control systems for long-distance space missions.

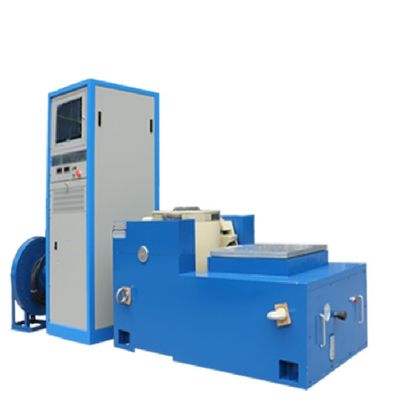

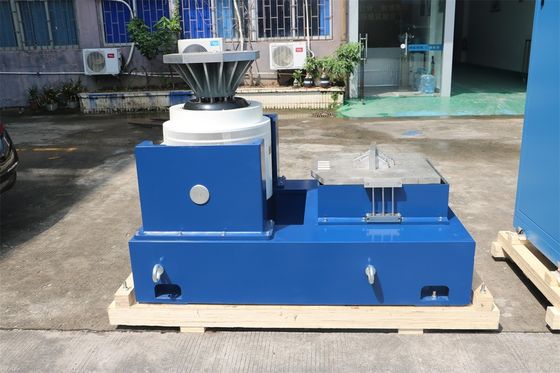

Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing 1 Random Vibration Table With Slip Table Runs ECSS - E - 10 - 03A Sinusoidal Vibration Testing 2
Reliable Testing Solution for Aerospace
Our random vibration table with slip table is an essential tool for aerospace component testing, providing accurate simulation of launch and in-orbit vibration conditions. With precise control, versatile capabilities, and robust construction, this equipment enhances the development and quality assurance of spacecraft, satellites, and space probes to meet ECSS-E-10-03A standards.
