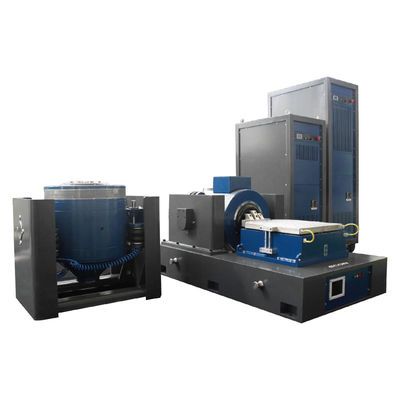

Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry

Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry
Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry

Large Image :  Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: CE
Model Number: VTS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now chat now
Detailed Product Description
Customized Support: OEM ODM Sine Force: 50kN
Random Force: 50kN Shock Force: 50kN
Frequency Range: 1-3000Hz Displacement: 100mm
Velocity: 2.0 Table Size: 1500x1500mm
Highlight:

Electrodynamic Vibration Shaker System

,

MIL STD 810 Vibration Shaker System

,

Defense Vibration Shaker System

Electrodynamic Vibration Shaker System for MIL-STD-810 Vibration Testing
In the demanding defense and military industry, equipment reliability is critical. Our electrodynamic vibration shaker system is engineered to perform MIL-STD-810 vibration testing, ensuring military equipment resilience in extreme environments.
Product Specifications
Customized support OEM ODM
Sine force 50kN
Random force 50kN
Shock force 50kN
Frequency range 1-3000Hz
Displacement 100mm
Velocity 2.0
Table size 1500×1500mm
MIL-STD-810 Compliance for Military Applications
The MIL-STD-810 standard outlines environmental test methods for military equipment, simulating real-world vibrations encountered during transportation and operation. Our system helps identify potential weaknesses to ensure flawless performance in critical situations.
System Features
  • High-Performance Vibration Generation: 5Hz to 3000Hz frequency range with precise control up to 100g acceleration and ±50mm displacement
  • MIL-STD-810 Compliance: Executes all relevant test procedures including sinusoidal, random, and shock-induced vibration tests
  • Customizable Test Profiles: Adjustable frequency, amplitude, and duration for specific equipment requirements
  • Robust Construction: High-strength test platform with multiple attachment points for various equipment sizes
  • User-Friendly Control: PC-based system with intuitive software for real-time monitoring and data analysis
Technical Specifications
Rated Sine/Random/Shock Force 5,000 kgf/5,000kgf/10.000 kgf Armature Mass 8 kg
Frequency Range 5-2,500 Hz Inserts Size (Standard) M10
Max/Continuous Displacement p-p 100mm/90mm Load Attachment Points (Standard) 17
Max. Velocity 1.8mm Natural Frequency - Thrust Axis <3Hz
Max.Sine/Random Acceleration 83/60g Max. Vertical Load Support 500 kg
Armature Diameter 440 mm Stray field @152 mm above table ≤lmT (10 gauss)
Fundamental Resonance Frequency 2,100 Hz (nom.) ±5% Dimension L×W×H 1,650 mm×1,130mm×1,28(him
Weight (Uncrated) 1,000 Nm 4,500 kg
Military Applications
Communication Equipment: Ensures radios and satellite devices maintain functionality under vibration
Weapons Systems: Validates accuracy and reliability of firearms and missile systems
Navigation/Surveillance: Tests GPS devices and reconnaissance equipment for harsh environments
Vehicle/Aircraft Components: Simulates operational vibrations for engines, avionics, and control systems

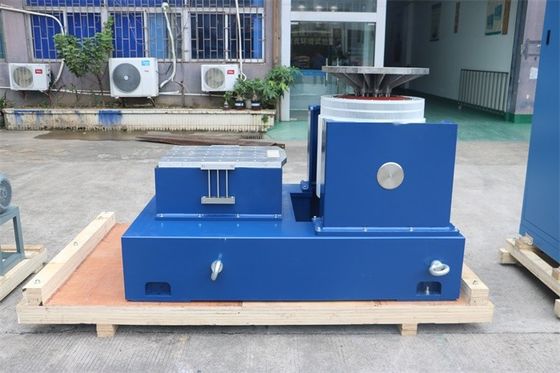

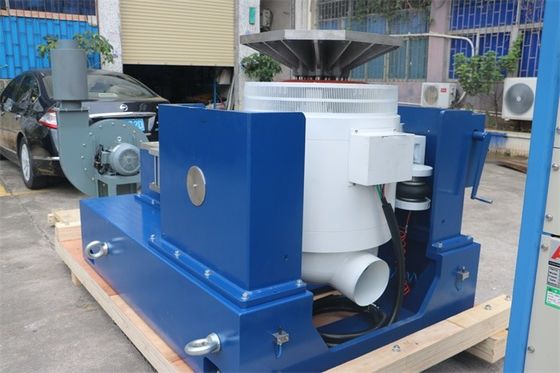

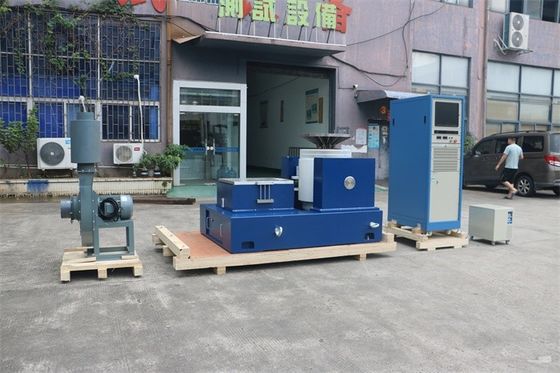

Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry 0 Electrodynamic Vibration Shaker System Performs MIL STD 810 Vibration Testing For Defense And Military Industry 1
Strategic Testing Solution
Our electrodynamic vibration shaker system provides defense organizations with a comprehensive solution for MIL-STD-810 compliance testing. With its advanced capabilities and robust construction, it enhances equipment reliability while reducing field failure risks in military operations.

Tag:

Random Vibration Testing Equipment,

Shock Vibration Shaker Machine,

Spacecraft Components Vibration Table
