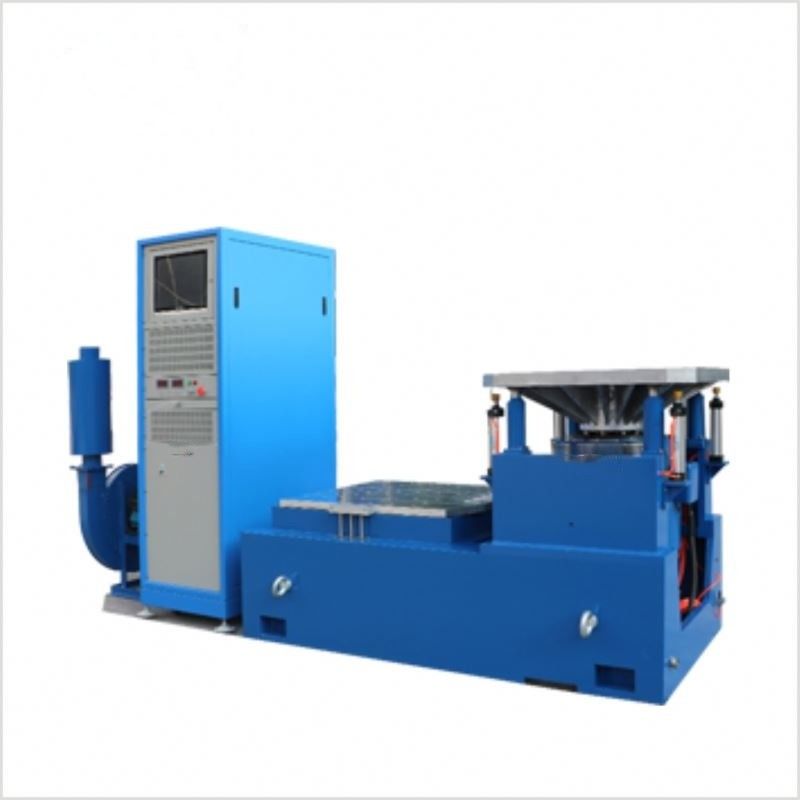

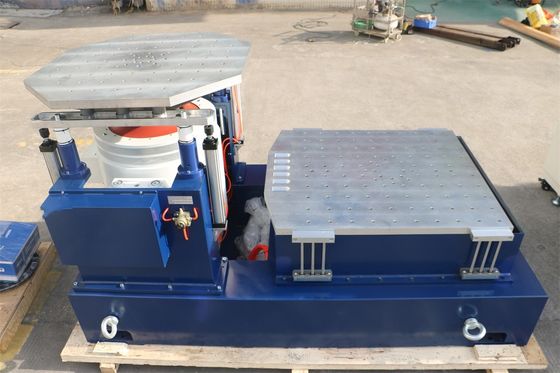

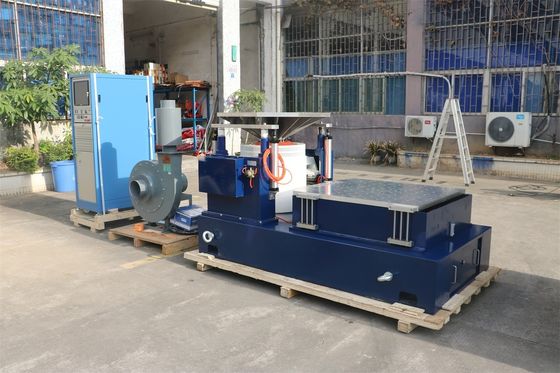

Multi Axis Electrodynamic Vibration Shaker For Aerospace Vibration Testing

Large Image : Multi Axis Electrodynamic Vibration Shaker For Aerospace Vibration Testing

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	CE
Model Number:	VTS-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Sine Force:	70kN
Random Force:	70kN	Shock Force:	140kN
Frequency Range:	1-3000Hz	Displacement:	76mm
Velocity:	2.0	Table Size:	1200x1200mm
Highlight:	Electrodynamic Vibration Shaker , Multi Axis Vibration Shaker , Aerospace Vibration Shaker

Multi Axis Electrodynamic Vibration Shaker For Aerospace Vibration Testing

Product Specifications

Attribute	Value
Customized support	OEM ODM
Sine force	70kN
Random force	70kN
Shock force	140kN
Frequency range	1-3000Hz
Displacement	76mm
Velocity	2.0
Table size	1200x1200mm

Advanced Aerospace Vibration Testing Solution

Our state-of-the-art Multi Axis Electrodynamic Vibration Shaker is engineered to meet the stringent demands of aerospace vibration testing, providing manufacturers and researchers with a powerful tool to ensure component integrity under extreme conditions.

Key Features

High-Frequency Vibration Generation: 1 Hz to 2,000 Hz range for comprehensive component testing
Precise Vibration Control: Up to 100 g acceleration and ±50 mm displacement with excellent waveform control
Customizable Test Profiles: Programmable multi-axis testing for diverse aerospace components
Robust Construction: High-strength, vibration-dampening materials for accurate test results
User-Friendly Control: PC-based system with intuitive software for real-time monitoring and data analysis

Technical Specifications

Rated Sine/Random/Shock Force	7,000 kgf/7,000 kgf/14000 kgf
Frequency Range	5-2,500 Hz
Max. Displacement p-p	76mm/63 mm
Max. Velocity	1.9mfc
Max. Sine/Random Acceleration	100/60g
Armature Diameter	450 mm
Natural Frequency-Thrust Axis	<3Hz
Max. Vertical Load Support	1000 kg (2000 kg option available)

Aerospace Applications

Avionics Systems Testing

Ensures reliability of flight control computers, communication systems, and navigation equipment under harsh vibration conditions.

Aircraft Structural Components

Evaluates structural integrity of wings, fuselage sections, and landing gear through multi-axis vibration simulation.

Satellite Components

Tests solar panels, antennas, and instruments under launch and orbital vibration conditions.

Our Multi Axis Electrodynamic Vibration Shaker provides aerospace manufacturers with a comprehensive testing solution to enhance product quality, reduce in-flight failures, and gain competitive advantage in the global aerospace market.
