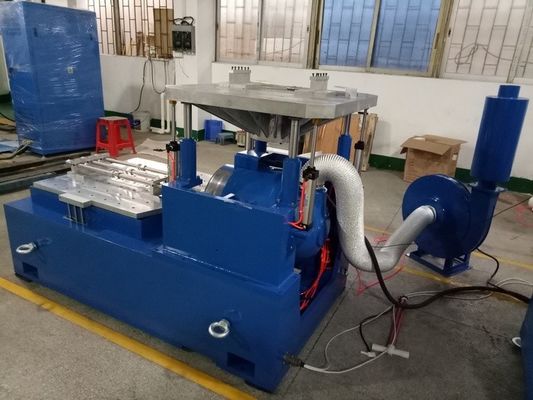

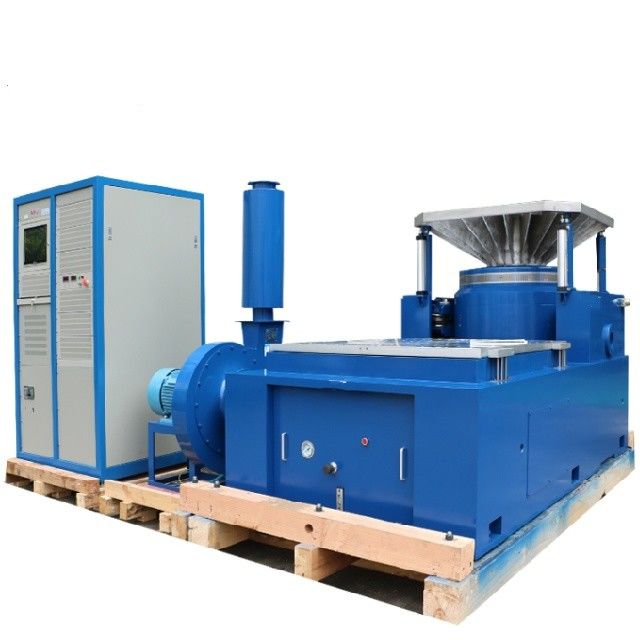

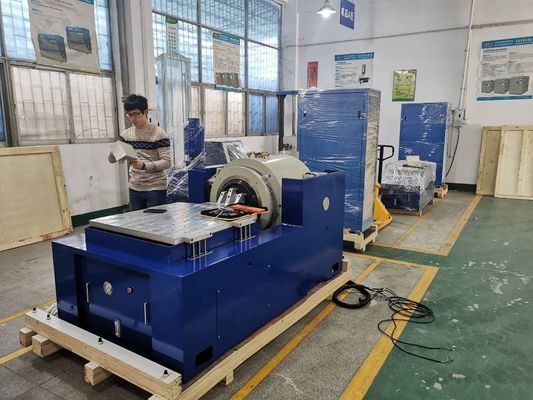

Shock And Vibration Test Equipment For Automotive Vibration Testing

Large Image : Shock And Vibration Test Equipment For Automotive Vibration Testing

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	CE
Model Number:	VTS-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Sine Force:	10kN
Random Force:	10kN	Shock Force:	20kN
Frequency Range:	1-3000Hz	Displacement:	76mm
Velocity:	2.0	Table Size:	1200x1200mm
Highlight:	Shock Vibration Test Equipment , Automotive Vibration Test Equipment , Automotive Vibration Testing Equipment

Shock And Vibration Test Equipment For Automotive Vibration Testing

In the automotive industry where safety, performance, and durability are critical, our advanced Shock and Vibration Test Equipment provides comprehensive solutions for ensuring component reliability under vibration and shock conditions.

Key Specifications

Attribute	Value
Customized support	OEM ODM
Sine force	10kN
Random force	10kN
Shock force	20kN
Frequency range	1-3000Hz
Displacement	76mm
Velocity	2.0
Table size	1200x1200mm

Advanced Testing Capabilities

Precise Vibration Generation

Our equipment generates accurate vibration profiles across 5 Hz to 3000 Hz, simulating real-world conditions from engine idling to rough road vibrations. With precise control up to 100 g acceleration and ±50 mm displacement.

Realistic Shock Simulation

Capable of generating shock pulses with adjustable duration (0.1 ms to 60 ms) and amplitude (up to 1000 g), replicating impacts from potholes, collisions, and sudden mechanical forces.

Customizable Test Profiles

Engineers can create tailored test parameters for different components - from high-intensity shock tests for safety components to long-term vibration endurance tests for less sensitive parts.

Robust Test Platform

Features a high-strength, vibration-dampening platform with multiple attachment points, designed to withstand extreme testing conditions while maintaining stability.

Intuitive Control System

PC-based software provides real-time monitoring, data logging, and analysis capabilities with user-friendly interfaces for parameter input and test management.

Technical Specifications

Rated Sine/Random/Shock Force	1,100 kgf/1,100 kgf/2.200 kgf
Frequency Range	5-3.000 Hz
Max./Continuous Displacement p-p	51 mm/51 mm
Max. Velocity	2.0 m/s
Max.Sine/Random Acceleration	100/60g
Armature Diameter	235 mm
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%
Allowable Armature Overturning Moment	300 Nm
Armature Mass	11kg
Inserts Size (Standard)	M8
Load Attachment Points (Standard)	17
Natural Frequency-Thrust Axis	<3Hz
Mac Vertical Load Support	300 kg
Stray field @ 152 mm above table	≤1mT (10 gauss)
Dimension LxWxH	940 mmx715 mmx780 mm
Weight (Uncrated)	1.000 kg

Automotive Testing Applications

Engine Components: Testing pistons, crankshafts, and engine mounts for durability and performance
Suspension and Braking Systems: Evaluating shock absorbers, control arms, and brake calipers under road-induced vibrations
Interior and Exterior Trim: Identifying structural weaknesses in dashboards, door trims, bumpers, and mirrors
Electronic Components: Ensuring reliability of sensors, infotainment systems, and control units in harsh conditions

Our Shock and Vibration Test Equipment provides automotive manufacturers with precise testing capabilities to enhance product quality, reduce warranty costs, and gain competitive advantage through reliable component performance.
