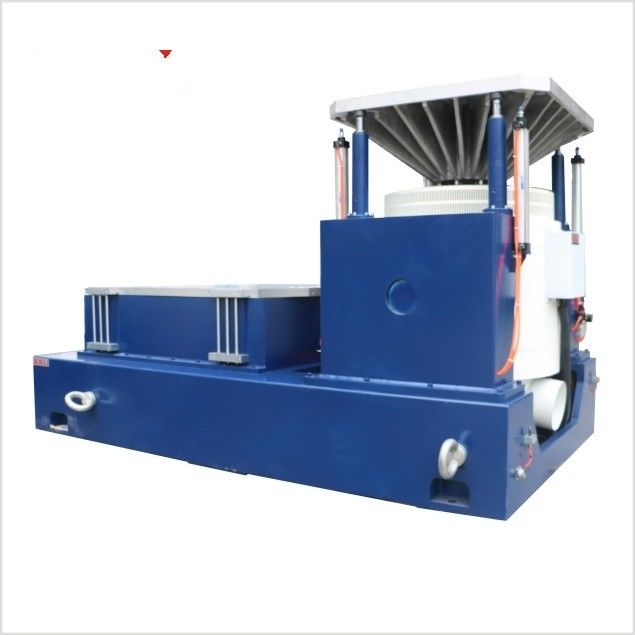

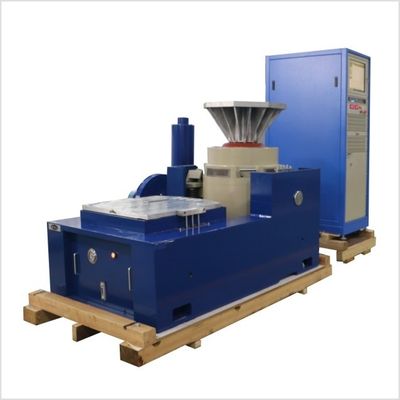

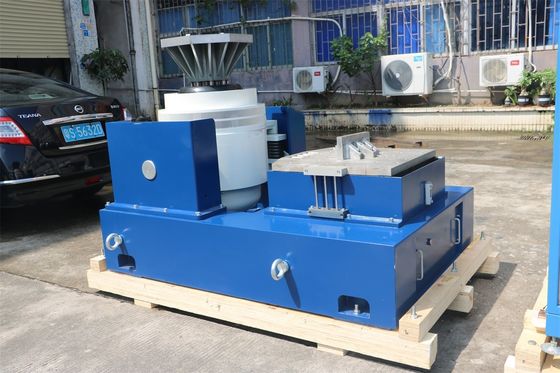

10kN Vibration Shaker System For Electronics Vibration Testing

Large Image : 10kN Vibration Shaker System For Electronics Vibration Testing

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	CE
Model Number:	VTS-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Sine Force:	10kN
Random Force:	10kN	Shock Force:	20kN
Frequency Range:	1-3000Hz	Displacement:	76mm
Velocity:	2.0	Table Size:	1200x1200mm
Highlight:	Electronics Vibration Shaker System , 10kN Vibration Shaker System , 10kN Vibration Testing System

10kN Vibration Shaker System For Electronics Vibration Testing

Product Specifications

Attribute	Value
Customized support	OEM ODM
Sine force	10kN
Random force	10kN
Shock force	20kN
Frequency range	1-3000Hz
Displacement	76mm
Velocity	2.0
Table size	1200x1200mm

Precision Vibration Testing for Electronics Reliability

In the fast-evolving electronics industry where miniaturization and high-performance are standard, our 10kN Vibration Shaker System provides manufacturers with a powerful tool to enhance product quality through rigorous vibration testing.

Key System Features

Precise Vibration Generation: Wide frequency range (5-3000Hz) with maximum acceleration of 100g and displacement of ±50mm
High-Force Output: 10kN capacity for testing larger electronic assemblies
Customizable Test Profiles: Programmable frequency, amplitude, and duration settings
Stable Test Platform: Vibration-dampening surface with multiple attachment points
Intuitive Control System: PC-based software with real-time monitoring and data analysis

Technical Specifications

Rated Force

1,100 kgf (Sine/Random), 2,200 kgf (Shock)

Frequency Range

5-3,000 Hz

Max Displacement

51 mm peak-to-peak

Max Velocity

2.0 m/s

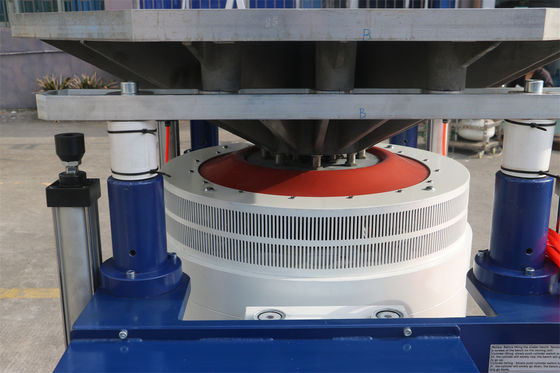

Armature Details

235 mm diameter, 11kg mass

Dimensions

940 × 715 × 780 mm (L×W×H)

Industry Applications

Consumer Electronics: Testing smartphones, tablets, and wearables for component security
Automotive Electronics: Simulating vehicle vibration conditions for infotainment and control systems
Industrial Electronics: Evaluating reliability of control panels and power supplies in harsh environments

Enhanced Product Reliability

Our 10kN Vibration Shaker System provides electronics manufacturers with comprehensive testing capabilities to identify design weaknesses, reduce field failures, and improve product durability under real-world vibration conditions.
