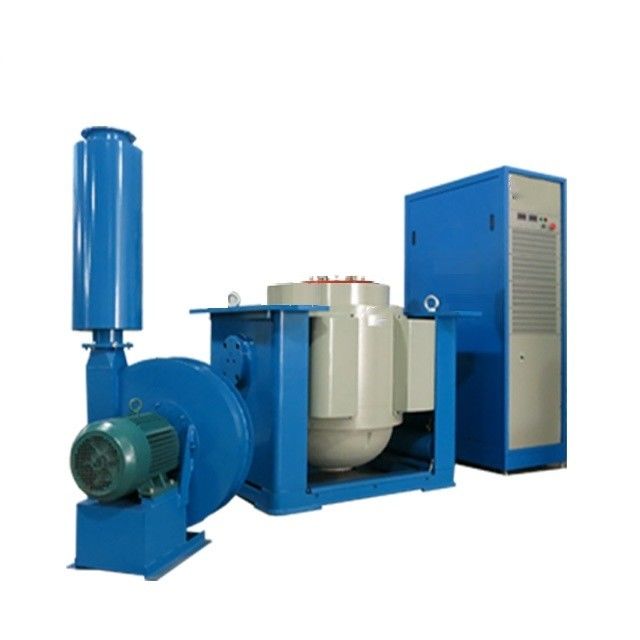

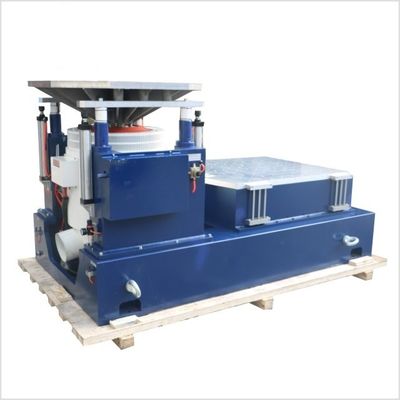

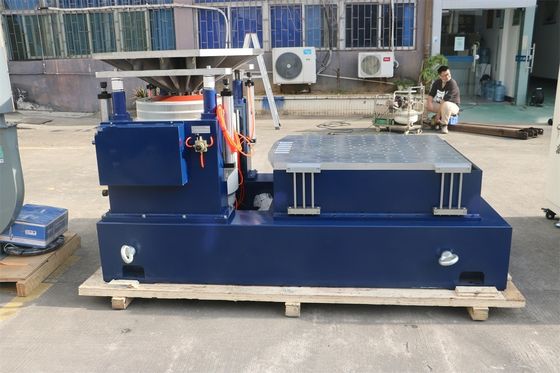

70kN Vibration Test System Meets MIL STD 810 Shock and Vibration Test
Key Specifications
| Attribute |
Value |
| Customized support |
OEM ODM |
| Sine force |
70kN |
| Random force |
70kN |
| Shock force |
140kN |
| Frequency range |
1-3000Hz |
| Displacement |
76mm |
| Velocity |
2.0 |
| Table size |
1500x1500mm |
In the high-stakes worlds of military, aerospace, and rugged industrial applications, equipment reliability under extreme conditions is non-negotiable. Our 70kN Vibration Test System is engineered to meet MIL STD 810 shock and vibration test requirements, providing a robust solution for evaluating product resilience.
MIL STD 810 Standard Compliance
The MIL STD 810 standard by the U.S. Department of Defense establishes environmental test methods for military equipment. Our system precisely simulates real-world conditions including vehicle transportation vibrations, aircraft impacts, and explosive shocks to ensure products function reliably in demanding scenarios.
System Features
High-Power Vibration Generation
70kN force output with 5-3000Hz frequency range accurately replicates military and industrial vibration scenarios. Features maximum acceleration of 100g and displacement of ±50mm for comprehensive testing.
Precise Shock Simulation
Generates shock pulses with adjustable duration (0.1-200ms) and amplitude up to 800g, realistically simulating explosions, collisions, and sudden drops.
Customizable Test Profiles
Create tailored test profiles with specific frequency, amplitude, shock characteristics, and duration to match unique product requirements.
User-Friendly Operation
PC-based control interface with intuitive software for real-time monitoring, data logging, and performance analysis.
Durable Construction
Sturdy alloy frame and low-friction moving parts ensure reliable performance in continuous testing environments.
Technical Specifications
Rated Force
7,000 kgf (Sine/Random)
14,000 kgf (Shock)
Frequency Range
5-2,500 Hz
Displacement
76mm peak-to-peak
63mm continuous
Acceleration
100g (Sine)
60g (Random)
Dimensions
1,650 × 1,130 × 1,280 mm
Applications
- Military Equipment: Communication devices, weapons systems, and navigation equipment testing
- Aerospace Components: Aircraft engines, avionics systems, and landing gear validation
- Industrial Products: Equipment for oil/gas, mining, and construction environments
System Benefits
Our 70kN Vibration Test System provides comprehensive MIL STD 810 compliance testing with high-power vibration generation, precise shock simulation, and customizable profiles. The robust construction and user-friendly interface make it an ideal solution for military, aerospace, and industrial testing requirements.
