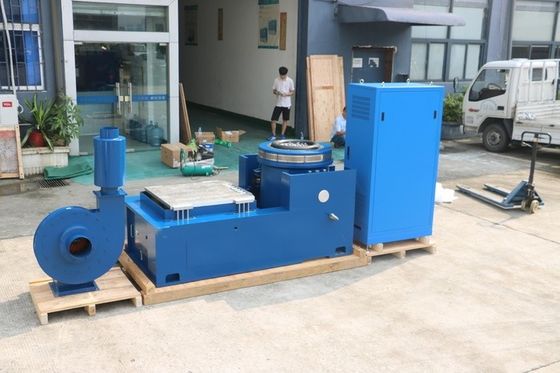

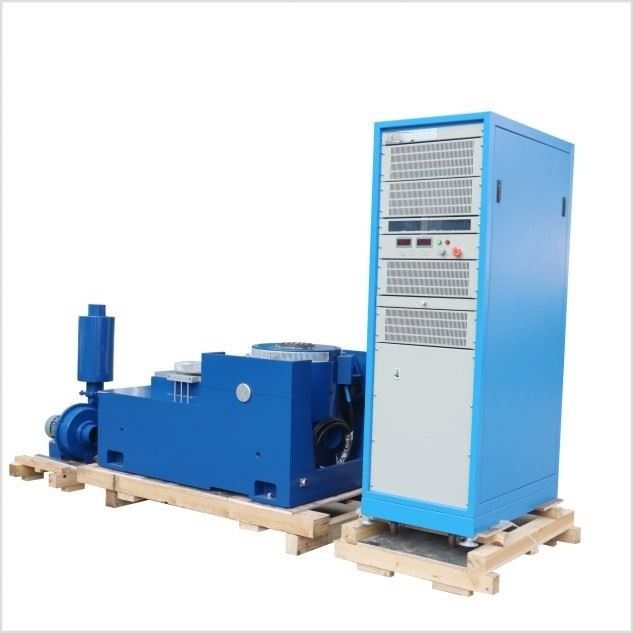

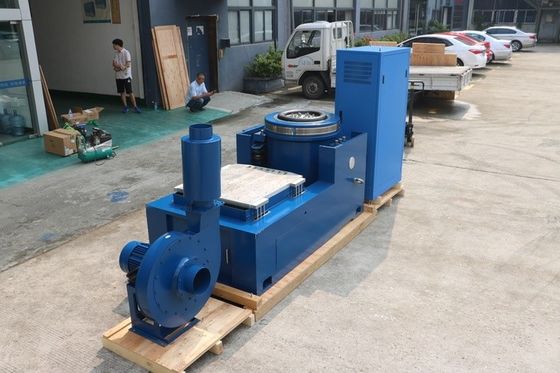

Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test

Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test
Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test

Large Image :  Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: CE
Model Number: VTS-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now chat now
Detailed Product Description
Customized Support: OEM ODM Sine Force: 20kN
Random Force: 20kN Shock Force: 40kN
Frequency Range: 1-3000Hz Displacement: 51mm
Velocity: 2.0 Table Size: 500x500mm
Highlight:

Slip Table Vibration Testing Machine

,

Vibration Testing Machine

,

MIL STD 810G Vibration Testing Machine

Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test
Attribute Value
Customized support OEM ODM
Sine force 20kN
Random force 20kN
Shock force 40kN
Frequency range 1-3000Hz
Displacement 51mm
Velocity 2.0
Table size 500x500mm
Our advanced Vibration Testing Machine equipped with a Slip Table is engineered to execute MIL STD 810G vibration tests with precision, offering a reliable solution for evaluating product resilience in extreme vibration conditions.
Decoding the MIL STD 810G Standard
The MIL STD 810G standard encompasses environmental test methods to simulate real-world vibration scenarios for military and high-reliability equipment. Compliance ensures product reliability in harsh operational environments by identifying potential design flaws.
Key Features
  • Precise Vibration Generation: Wide frequency range (5 Hz to 3000 Hz) with maximum acceleration of 100 g and displacement of ±50 mm

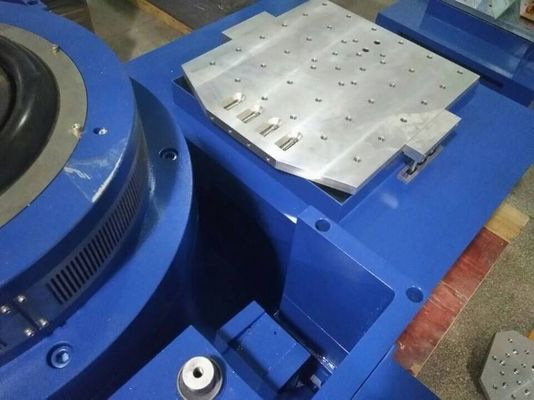

  • Slip Table Advantage: Simulates complex multi-axis vibrations with 1000 kg load capacity
  • MIL STD 810G Compliance: Executes sinusoidal, random, and shock-induced vibration tests
  • User-Friendly Interface: PC-based control with intuitive software for parameter input and real-time monitoring
  • Robust Construction: Sturdy alloy frame and durable moving parts for long-term reliability
Technical Specifications
Rated Sine/Random/Shock Force 2.400 kgf/2,200 kgf/4,500 kgf
Frequency Range 5-3,000 Hz
Max.Continuous Displacement p-p 51 mm/51 mm
Max. Velocity 2.0/ms
Max.Sine/Random Acceleration 100/60g

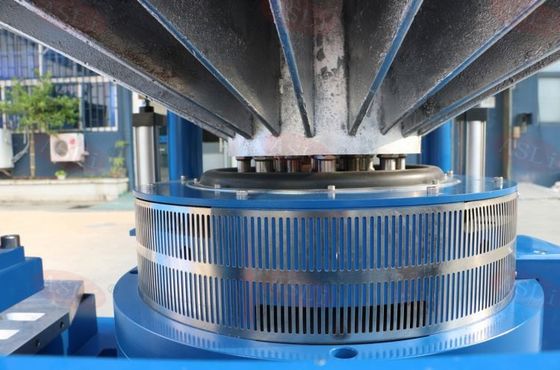

Armature Diameter 335 mm
Fundamental Resonance Frequency 2.600 Hz (nom.) ± 5%
Allowable Armature Overturning Moment 500 Nm
Armature Mass 24 kg
Inserts Size (Standard) M10
Load Attachment Points (Standard) 21
Natural Frequency-Thrust Axis <3Hz
Max. Vertical Load Support 300 kg
Stray field @152 mm above table ≤1mT (10 gauss)
Dimension LxWxH 1,160 mmx880mmx 1,050mm
Weight (Uncrated) 1.700 kg
Industry Applications
Military Equipment: Communication devices, weapons systems, and navigation equipment
Aerospace Components: Avionics systems, engine parts, and landing gear
Rugged Industrial Products: Control panels, sensors, and power distribution units for harsh environments
Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test 0 Vibration Testing Machine With Slip Table For MIL STD 810G Vibration Test 1
Our Vibration Testing Machine offers a comprehensive solution for MIL STD 810G compliance testing with precise vibration generation, multi-axis simulation, and robust construction. Contact us to discuss custom testing solutions for your specific requirements.
