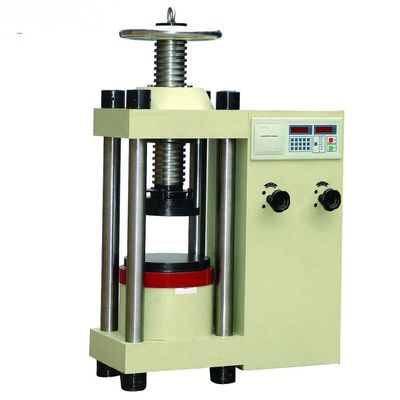

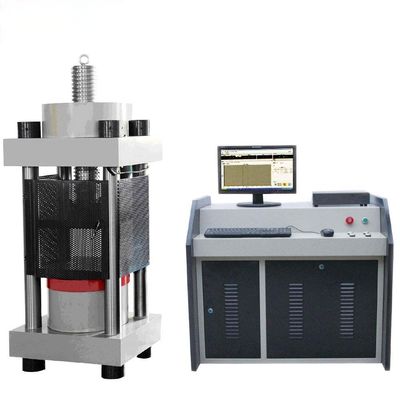

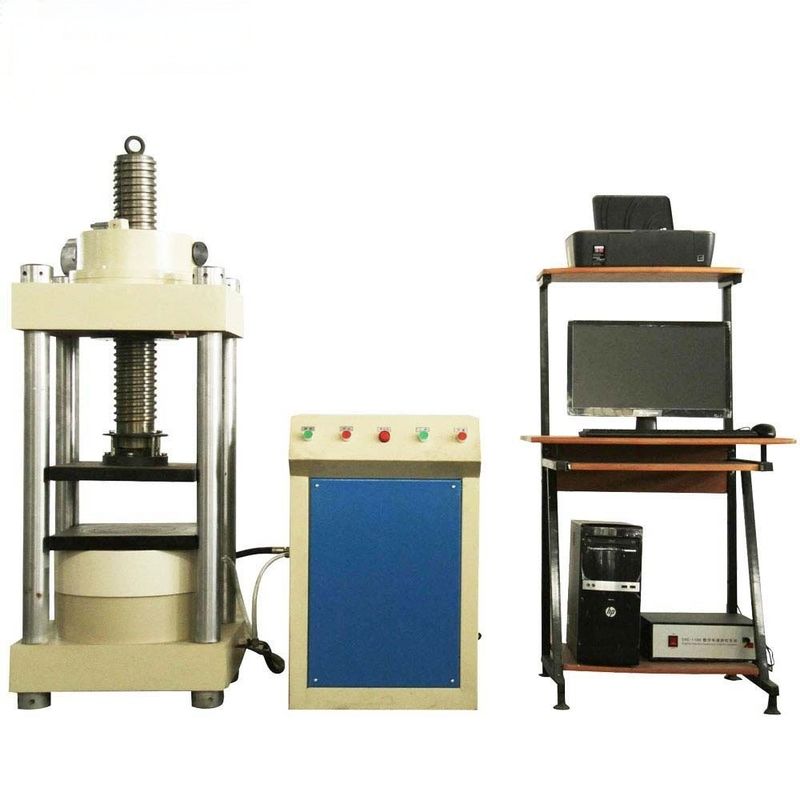

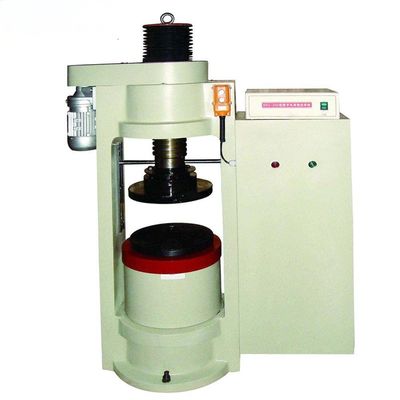

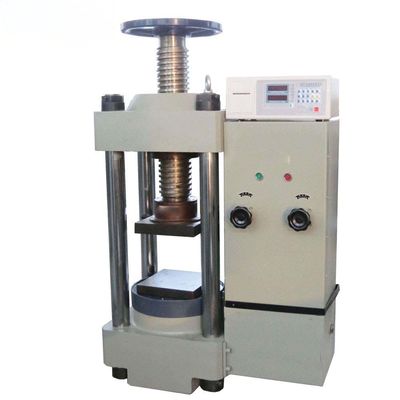

Concrete Press Crushing Compression Test Machine Customized 300kN

In the construction and building materials industry, the compressive strength of concrete is a fundamental parameter that determines the quality and durability of structures. Our sophisticated testing machine accurately assesses the compressive properties of concrete specimens up to 300kN.

Engineered to apply compressive force on concrete samples (cubes, cylinders, or prisms), this device determines the maximum compressive load before failure - a crucial indicator of concrete quality for construction applications. Essential for architects, engineers, and quality control laboratories to verify compliance with strength standards.

• Robust Steel Frame: Heavy-duty construction with high-strength alloy steel for exceptional rigidity and stability during high-force testing.
• Precision Hydraulic System: Smooth, consistent pressure generation with hardened steel piston and adjustable loading rates (0.1kN/s to 10kN/s).
• Accurate Measurement: High-accuracy load cell (±1% full scale) with 0.1kN resolution and digital display for real-time readings.
• Advanced Control: Intuitive touchscreen interface with data acquisition (1000 samples/sec) for detailed load-displacement analysis.
• Safety Features: Emergency stop button and protective polycarbonate enclosure meeting industry safety standards.

• Maximum Load Capacity: 300kN (suitable for standard 150mm cubes and 100×200mm cylinders)
• Loading Rate Range: 0.1kN/s to 10kN/s adjustable
• Force Measurement Accuracy: ±1% of full scale
• Displacement Resolution: 0.01mm
• Testing Space: 300×300×500mm (custom configurations available)

• Quality control in concrete production facilities
• Construction site material verification
• Research and development of new concrete formulations
• Compliance testing with ASTM, EN, and other international standards

• Pre-Sales: Technical consultations, demonstrations, and test method selection assistance
• After-Sales: Installation, maintenance, calibration, and emergency repair services
• Training: Comprehensive operator training and 24/7 technical support
• Upgrades: Software updates and system enhancements
