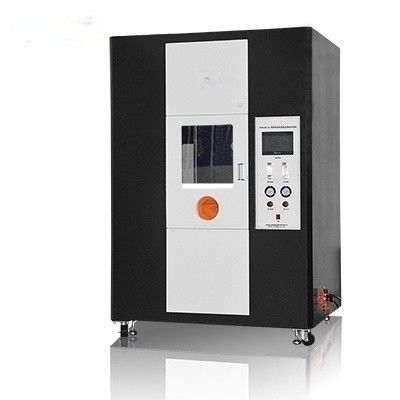

Single Cable Wire Flame Testing Equipment IEC60332 For Electrical Conductors

1. Product Name and Purpose

2. Product Features

• Robust and Controlled Testing Setup
  • The testing machine is constructed with a sturdy frame and a high-temperature-resistant chamber. The chamber is made from refractory materials that can withstand the intense heat generated during the test. It has a precisely designed ventilation system to regulate the air flow and oxygen supply, which is crucial for accurately simulating real-world fire conditions. The interior of the chamber is smooth and non-combustible to prevent any interference with the sample's combustion.
  • The sample holder is adjustable and can securely grip different sizes and types of cables and wires. It ensures that the sample is held in a perfect vertical position, allowing the flame to interact with it in a consistent manner. The holder is also made from heat-resistant materials to endure the high temperatures without deformation or damage.
• Precision Flame Generation and Measurement Systems
  • The machine is equipped with a calibrated burner that can produce a vertical flame of a specific height and temperature. The flame height is adjustable, typically ranging from a few centimeters to a dozen centimeters, to meet the requirements of different test scenarios. The burner is connected to a gas supply system with precise flow control, ensuring a stable and reproducible flame.
  • The measurement system includes highly sensitive sensors and a data acquisition unit. It can accurately measure the afterflame time, which is the duration the sample continues to burn after the flame source is removed. The char length, indicating the extent of damage along the sample, is also precisely measured. The flame spread rate is calculated based on the time it takes for the flame to travel a certain distance along the cable or wire. These measurements are recorded in real-time and can be used to generate detailed reports and graphs for in-depth analysis.
• Safety Features and Compliance
  • The IEC60332 Single Cable And Wire Burning Test Machine is equipped with multiple safety features. It has an emergency stop button that can immediately halt the test in case of any abnormality. The gas supply system has a safety shut-off valve that activates in case of a leak or overpressure. The chamber is enclosed with a safety shield to prevent the escape of flames or hot gases, protecting the operator and the surrounding environment. The machine is designed to comply with all relevant safety and environmental regulations, ensuring a safe and reliable testing process.

3. Specific Parameters

• Test chamber/fume hood	Volume: 1.0 M³
  Combustion blowtorch	1KW pre-mixed combustion nozzle (manufactured according to GB/T5169.14-2017 standard), blue flame center height: 46 - 78mm, total flame height: 148 - 208mm. Made of pure copper
  Air source
  - Compressed air	Use 0.7Mpa, 500W air compressor (user-provided)
  - Flow meter	Mass flow meter is used
  - Pressure	0 ~ 0.15Mpa pressure gauge display
  - Regulating valve	Adjust pressure and flow
  Gas source
  - Gas	Propane gas, purity not less than 95% (customer-provided)
  - Flow meter	Mass flow meter is used
  - Pressure	0 ~ 0.15Mpa pressure gauge display
  - Regulating valve	Adjust pressure and flow
  Length of tested wire and cable	600 ± 25mm
  Outer diameter of tested wire and cable	1 - 30 mm
  Metal cover	Height: 1200mm, width: 300mm, depth: 450mm
  Ignition method	High pressure automatic ignition
  Fire supply time	Can be set from 0.1 ~ 99.99s/m, flame stops burning when set time is reached
  Flame delay time	Automatically record with a resolution of 0.01s

4. Product Functions

• Accurate Fire Resistance Evaluation
  • The primary function of the testing machine is to provide a detailed and accurate assessment of the fire resistance of single cables and wires. By precisely measuring the flame spread rate, afterflame time, and char length, it determines how well the cable or wire can withstand the thermal stress and prevent the fire from spreading. This information is invaluable for manufacturers to improve their product designs and select more suitable materials. For instance, if a wire has a high flame spread rate, the manufacturer can explore alternative insulation materials or conductor coatings to enhance its fire resistance.
  • The measurement of these parameters also helps in understanding the combustion behavior of the cable or wire. It can identify whether the insulation melts, drips, or produces excessive smoke during combustion, which are all important factors in assessing its overall fire hazard.
• Compliance with Safety Standards and Regulations
  • The cable and wire industry is highly regulated, and compliance with standards like IEC60332 is essential. This testing machine is a reliable tool for ensuring that products meet the required safety levels. Manufacturers can use it to conduct tests and obtain accurate results that prove their cables and wires comply with the standard. This facilitates market access and 增强消费者信心.
  • Regulatory bodies rely on the test results from this equipment to enforce safety regulations. They can use the data to determine whether a particular cable or wire is suitable for use in different applications. For example, in high-rise buildings or in areas with a high fire risk, only cables and wires that pass the strict fire resistance tests are allowed to be installed.
• Research and Development Support
  • In the field of cable and wire research and development, the IEC60332 Single Cable And Wire Burning Test Machine is an invaluable asset. It allows engineers and scientists to study the effects of different materials, designs, and manufacturing processes on the flammability of cables and wires. For example, they can test the performance of new flame-retardant additives in insulation materials or evaluate the impact of cable construction techniques on fire resistance.
  • The detailed data provided by the testing machine serves as a roadmap for innovation. It helps researchers to optimize cable and wire designs, select more suitable materials, and develop new fire-resistant technologies. This, in turn, leads to the production of safer and more reliable electrical conductors for a wide range of applications.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The IEC60332 Single Cable And Wire Burning Test Machine is manufactured under strict quality control procedures. Each component is carefully sourced and inspected for quality and performance. The assembly process is carried out by highly trained technicians in a clean and controlled environment, ensuring the proper alignment and functionality of all parts.
  • The calibration of the burner, sensors, and measurement systems is a critical and regular part of the manufacturing process. It is performed using traceable reference standards to guarantee the accuracy and reproducibility of the test results. Rigorous quality audits and inspections are conducted at various stages of production to maintain the highest level of product quality.
• Quality Certification and Validation
  Our testing machine has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the IEC60332 standard and other relevant safety and performance standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.
