ASTM D1360 Fire Retardant Paints Coatings Test Apparatus For Paint Industry

Large Image : ASTM D1360 Fire Retardant Paints Coatings Test Apparatus For Paint Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	SBB20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Origin:	China
Material:	Stainless Steel	Usage:	Combustion Equipment
Application:	Test	Function:	Independent Research And Development
Highlight:	Fire Retardant Paints Coatings Test Apparatus , ASTM D1360 Fire Retardant Paints Tester , Paint Industry Fire Retardant Paints Tester

ASTM D1360 Fire Retardant Paints Coatings Test Apparatus For Paint Industry

Customized support

OEM ODM

Origin

China

Material

Stainless Steel

Usage

Combustion equipment

Application

Function

Independent research and development

Standardized Fire Retardant Testing Solution

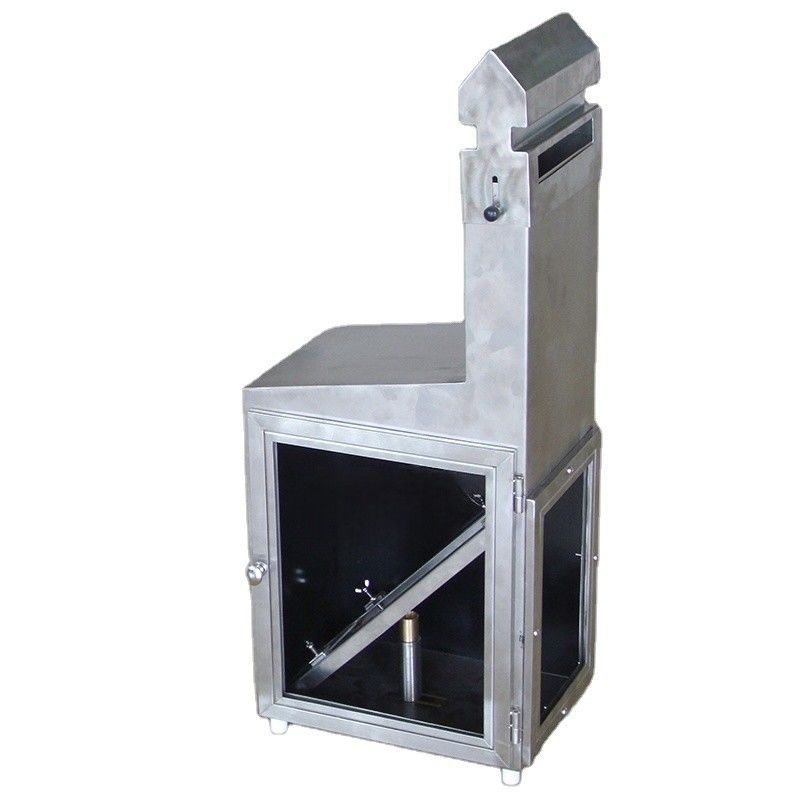

The ASTM D1360 Fire Retardant Paints Coatings Test Apparatus (Cabinet Method) is a precision instrument designed to evaluate the fire-retardant properties of paints and coatings in controlled laboratory conditions. This essential testing equipment serves research laboratories, paint manufacturers, and quality control departments.

Key Features and Technical Specifications

Robust Construction

Constructed with high-grade stainless steel and refractory alloys to withstand extreme heat and corrosive gases. Features heat-resistant glass viewing window and secure sealing mechanisms.

Precision Measurement System

Equipped with advanced optical sensors for flame spread measurement, smoke density sensors, and temperature monitoring. Includes intuitive user interface and comprehensive data acquisition.

Controlled Testing Environment

Adjustable ignition system with regulated fuel supply and ventilation control to simulate various fire scenarios. Maintains uniform heat distribution for consistent results.

Technical Parameter	Specification
Test station	1 station
Test board size	L300 x W150 thickness is (5±0.2) mm
Fuel	Chemically pure grade ethanol

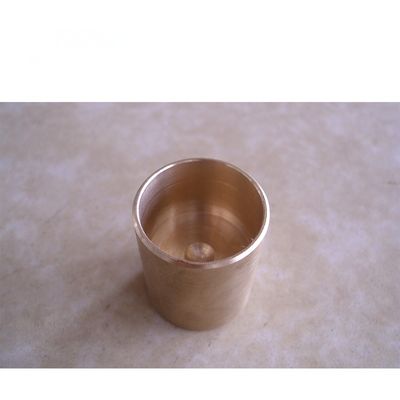

Fuel cup	Brass material, outer diameter 24mm, height 17mm

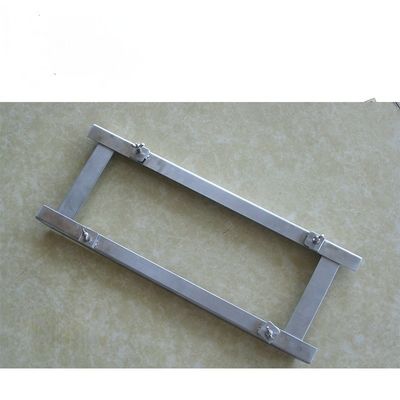

Specimen holder	Tilted 45±3 degrees
Combustion chamber size	L340 x W250 x H860 (mm)

Comprehensive Testing Capabilities

Accurate measurement of flame spread rate, smoke production, and char formation
Compliance verification with ASTM D1360 and other international standards
Support for research and development of new fire retardant formulations
Quality assurance testing for manufacturing processes

Industry Applications

This testing apparatus serves critical roles in multiple industries:

Paint manufacturing and formulation development
Building materials and construction safety compliance
Automotive and transportation fire safety testing
Research institutions and regulatory bodies

Quality Assurance and Support

Manufactured under strict quality control procedures with regular calibration using traceable standards. Our comprehensive support includes:

Pre-sales technical consultation and demonstrations
On-site installation and commissioning
Training programs for operators
Ongoing maintenance and technical support
Software updates and system upgrades

Enhancing Fire Safety Standards

The ASTM D1360 Fire Retardant Paints Coatings Test Apparatus provides reliable, standardized testing to improve fire protection in painted surfaces. Its precise measurements and robust construction make it an essential tool for developing safer coatings and verifying compliance with critical safety regulations.
