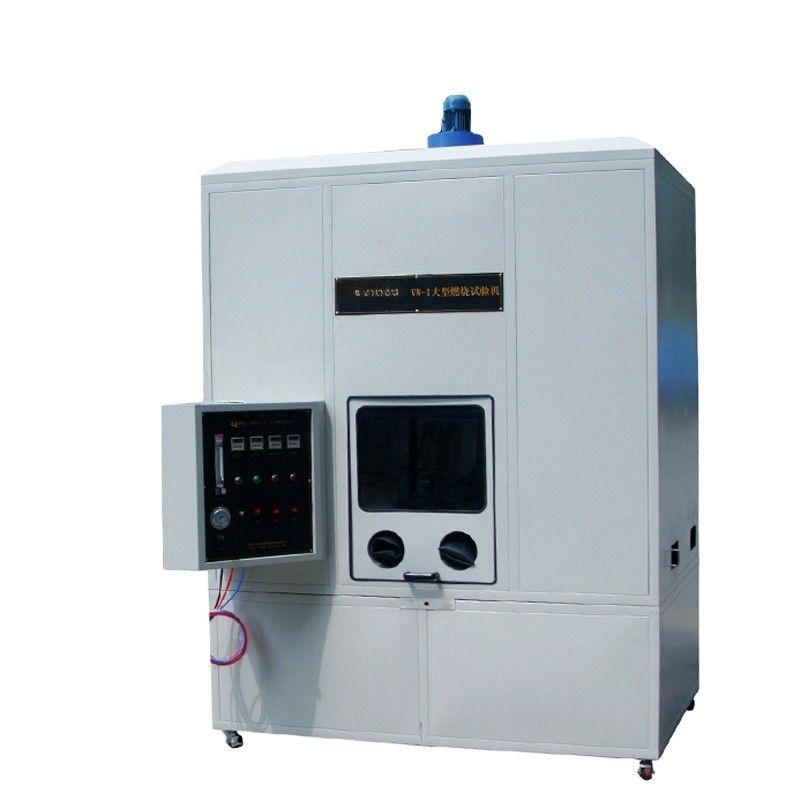

Wire And Cable Flame Testing Equipment Large Combustion Chamber Customized

Large Image : Wire And Cable Flame Testing Equipment Large Combustion Chamber Customized

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	SBB20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Origin:	China
Material:	Stainless Steel	Usage:	Combustion Equipment
Application:	Test	Function:	Independent Research And Development
Highlight:	Wire Cable Flame Testing Equipment , Customized Flame Testing Equipment , Customized Combustion Chamber

Wire And Cable Flame Testing Equipment Large Combustion Chamber Customized

Customized support	OEM ODM
Origin	China
Material	Stainless Steel
Usage	Combustion equipment
Application	Test
Function	Independent research and development

Large Combustion Chamber / Wire and Cable Flammability Testing Equipment

In the world of wire and cable manufacturing and fire safety assessment, the Large Combustion Chamber stands as a vital tool. It is engineered to meticulously evaluate the flammability characteristics of wires and cables under diverse and controlled conditions, playing a crucial role in ensuring the safety and reliability of electrical installations.

Product Name and Purpose

The Large Combustion Chamber is a specialized apparatus designed to conduct comprehensive flammability tests on wires and cables. It is an essential asset in production facilities, quality control laboratories, and research institutions. By subjecting wire and cable specimens to a precisely regulated combustion environment and monitoring key parameters such as flame spread rate, smoke generation, and combustion time, it determines the fire resistance capabilities of electrical conductors.

Product Features

Spacious and Durable Combustion Chamber: Constructed from high-grade refractory materials and robust steel frames with a precisely calibrated ventilation system for controlled air flow and oxygen supply.

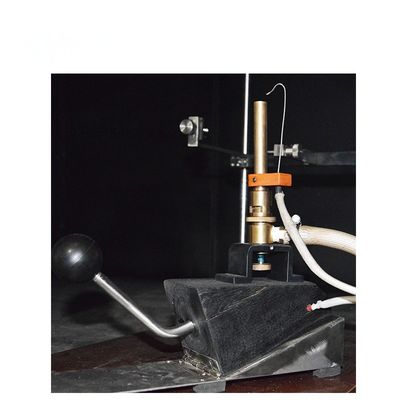

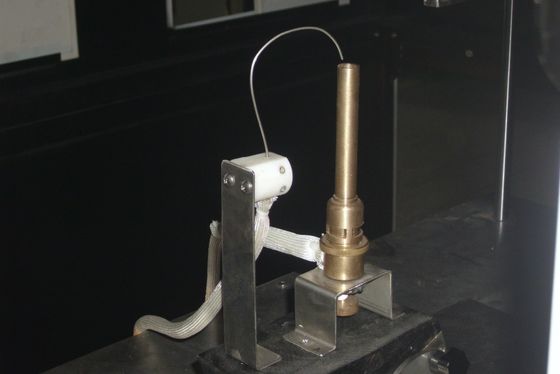

Precision Ignition and Measurement Systems: Features reliable ignition sources with adjustable flame characteristics and advanced sensors for accurate measurement of flame spread, smoke production, and combustion time.
Safety and Environmental Protection: Equipped with fail-safe gas shut-off valves, explosion-proof casing, and systems to capture and treat harmful combustion by-products.

Specific Parameters

Test chamber volume	4.32 m³
Color - Outside	Square steel frame structure, thickened 1.5mm steel plate with static baking white paint
Color - Inside	Electrostatic baking black paint
Observation window	Tempered glass, surrounded by SUS304 stainless steel, size: 500 * 400 mm
Operation window	2 windows, total peripheral size Ф160 mm, outer 3.0 mm stainless steel edging
Exhaust system - Fan	Using a centrifugal fan to strongly exhaust the wind
Exhaust system - Sealed push-pull plate	2.0 mm stainless steel
Air inlet	4 inlets, size: 200 * 100 mm, sealed push-pull plates are 2.0 mm stainless steel plates
Bottom fixing frame	Size: 2.1(L) * 1.16(W) * 0.6(H)m, using 40 * 40 mm square pass, static baking white paint
Lighting equipment	Use of anti-fog and smoke incandescent lamps
Flame time	0 - 99.99 seconds arbitrarily set
Automation	Automatic ignition, automatic timing, counting function, high test accuracy
Dimensions	L2100 * W1630 * H2800 mm
Working power	AC220V, 50HZ

Product Functions

Accurate Flammability Assessment: Provides detailed evaluation of flame spread rate, smoke generation, and combustion time to determine fire hazard levels.
Compliance with Safety Standards: Enables testing according to international standards (IEC, UL) to ensure regulatory compliance.
Research and Development Support: Facilitates study of materials and designs to improve fire resistance properties.

Production and Quality Assurance

The Large Combustion Chamber is manufactured under strict quality control procedures with regular calibration using traceable reference standards. Our equipment has obtained relevant quality certifications and has been validated by independent testing laboratories to ensure accurate and reliable test results.

Application Areas

Wire and cable manufacturing facilities for product development and quality control
Research institutions studying fire safety and material performance
Quality assurance laboratories for compliance testing
