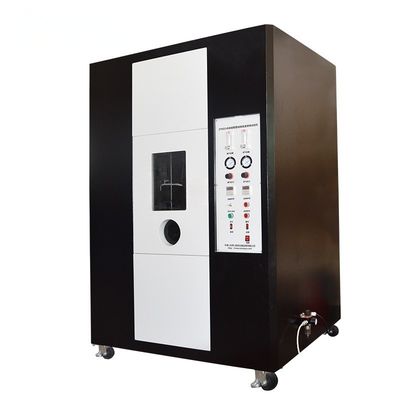

Single Wire Cable Vertical Combustion Testing Machine For Fire Safety And Regulatory Agencies

1. Product Name and Purpose

2. Product Features

• Robust and Controlled Testing Environment
  • The testing chamber is constructed from high-quality stainless steel or other heat-resistant materials. It is designed to have a well-defined testing area with proper ventilation to ensure accurate and reproducible measurement of flame characteristics. The chamber is equipped with a transparent observation window that allows operators to monitor the test progress without interfering with the test conditions. The interior surfaces are smooth and non-combustible to prevent any unwanted ignition sources or interference with the wire or cable sample's combustion.
  • The sample holder is adjustable and can accommodate different sizes and gauges of wires and cables. It is designed to hold the sample in a vertical position, ensuring that the flame impinges on the sample in a consistent manner. The holder is also made from heat-resistant materials to withstand the high temperatures during the test.
• Precision Flame Generation and Measurement Systems
  • The machine is equipped with a reliable flame source. The burner is calibrated to produce a specific flame height and temperature, typically a methane or butane burner with a controlled gas flow rate. The flame height can be adjusted accurately to meet the requirements of different testing standards. The tester also has a timer and sensor system to measure the afterflame time (the time the sample continues to burn after the flame source is removed) and the afterglow time (the time the sample glows without a visible flame).
  • The measurement system is accurate and reliable. The sensors can detect even small changes in the flame and sample characteristics. The data acquisition system records all the test parameters, including flame spread rate (calculated based on the distance the flame travels along the sample over time), afterflame time, and afterglow time. It can generate detailed reports, complete with graphs and charts, that provide a comprehensive analysis of the wire or cable's flammability performance.
• Safety Features and Compliance
  • The test chamber is equipped with multiple safety features. It has a safety shut-off valve for the gas supply in case of any abnormal combustion or emergency. The enclosure is designed to contain any potential flying debris or embers in case the wire or cable sample breaks apart during the test. The machine also complies with all relevant safety standards and regulations, ensuring the safety of the operator and the surrounding environment.

3. Specific Parameters

• Customized support	OEM, ODM
  Place of Origin	Guangdong, China
  Test Material	cable
  Standard	IEC60332-1-1~3
  Regulator	Adjust pressure and flow
  Combustion gas	Propane gas
  Size	1200mm* 300mm* 50mm;
  Material	Metal
  Keywords	test machine
  Temperature material	copper

4. Product Functions

• Accurate Flammability Evaluation
  • The primary function of the Single Wire and Cable Vertical Combustion Testing Machine is to provide a detailed and accurate assessment of the flammability of wires and cables. By precisely measuring the flame spread rate, afterflame time, and afterglow time, it determines how quickly a fire can spread on the wire or cable and how well it can self-extinguish. This information is valuable for comparing different wire and cable materials and selecting those with better fire resistance properties. For instance, in the production of electrical wiring for high-rise buildings or in automotive wiring harnesses, only wires and cables that pass strict flammability tests are used to ensure the safety of the occupants and the proper functioning of the electrical systems.
  • The measurement of these parameters also helps in understanding the combustion behavior of wires and cables. It can identify whether a wire or cable has a tendency to melt, drip, or produce excessive smoke during combustion, which are all important factors in assessing its overall fire hazard.
• Compliance with Safety Standards and Regulations
  • The wire and cable industry is subject to strict safety standards and regulations. The testing machine is a reliable tool for ensuring compliance. It enables manufacturers to conduct tests in accordance with relevant international and national standards, such as UL (Underwriters Laboratories) standards. By using this equipment, manufacturers can prove that their products meet the necessary flammability criteria, facilitating market access and enhancing consumer confidence.
  • Regulatory bodies rely on the accurate test results obtained from this chamber to enforce safety regulations. It serves as a dependable means for inspectors and certifying agencies to determine the suitability of wires and cables for use in different applications, ensuring that only those that meet the required safety levels are approved.
• Research and Development Support
  • In the field of wire and cable research and development, the test chamber is an invaluable asset. It allows engineers and scientists to study the effects of different conductor materials, insulation compositions, and cable designs on the flammability of wires and cables. For example, in the development of new flame-retardant wire coatings or improved cable insulation materials, the chamber can be used to evaluate the effectiveness of different additives and their impact on the overall performance of the wire or cable.
  • By understanding how various factors influence the flammability of wires and cables, researchers can optimize the design and production of fire-safe wires and cables. This could involve the selection of more suitable conductor alloys, the modification of insulation formulations, or the development of new cable construction techniques. The detailed data provided by the Single Wire and Cable Vertical Combustion Testing Machine serves as a roadmap for driving innovation and improving the overall fire safety of wires and cables.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Single Wire and Cable Vertical Combustion Testing Machine is manufactured under strict quality control procedures. Each component is carefully sourced and inspected for quality and performance. The assembly process is carried out by highly trained technicians in a clean and controlled environment, ensuring the proper alignment and functionality of all parts.
  • The calibration of the burner, sensors, and measurement systems is a critical and regular part of the manufacturing process. It is performed using traceable reference standards to guarantee the accuracy and reproducibility of the test results. Rigorous quality audits and inspections are conducted at various stages of production to maintain the highest level of product quality.
• Quality Certification and Validation
  Our testing machine has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to relevant international and national safety standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Wire and Cable Manufacturing Industry
  • A leading wire and cable manufacturer used the Single Wire and Cable Vertical Combustion Testing Machine to develop a new line of flame-retardant cables. The test results showed that the new cables had significantly reduced flame spread rates and afterflame times compared to their previous products. This enabled them to market the cables as a premium fire-safe option, meeting the increasing demand for fire-resistant wiring in commercial and industrial buildings. The company experienced an increase in sales and enhanced its reputation in the market.
  • A producer of specialty wires for the electronics industry utilized the equipment to optimize the performance of their wires. By testing different conductor and insulation combinations, they were able to improve the flame resistance of their wires used in high-power electronic devices, reducing the risk of fire-related accidents in electronics manufacturing and operation.
• Research Institutions
  • A research institute focused on materials science used the Single Wire and Cable Vertical Combustion Testing Machine to study the long-term durability of flame-retardant coatings on wires. The data obtained helped them develop new and more durable flame-retardant treatments that could withstand repeated thermal cycling and environmental stresses, contributing to the advancement of wire coating technology and the improvement of fire safety in electrical systems.
  • Another research institution investigated the effect of nanotechnology on the flammability of cables. Their studies led to the discovery of new nanoparticle-based flame-retardant additives that could enhance the fire resistance of cables without significantly affecting their electrical properties, opening up new possibilities for the development of high-performance fire-safe cables.
• Fire Safety and Regulatory Agencies
  • Fire safety agencies used the test results from the Single Wire and Cable Vertical Combustion Testing Machine to enforce safety regulations in building wiring and electrical installations. They could ensure that all wires and cables used met the required flammability standards, reducing the risk of fire incidents and protecting the public.
  • Regulatory agencies relied on the tester to certify wires and cables for different applications. The accurate test data provided by the machine enabled them to issue reliable certifications, giving consumers confidence in the safety of the wires and cables they purchase.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the Single Wire and Cable Vertical Combustion Testing Machine for their specific testing needs. We offer demonstrations and training to familiarize customers with the operation and functionality of the equipment before purchase. We also assist in selecting the appropriate test methods and accessories based on the wire and cable types and applications to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the test chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the equipment.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Single Wire and Cable Vertical Combustion Testing Machine and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with relevant standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies.
