Window Treatments Flammability Testing Equipment BS 5867 For Curtains And Drapes

Window Treatments Flammability Testing Equipment BS 5867 For Curtains And Drapes
Window Treatments Flammability Testing Equipment BS 5867 For Curtains And Drapes

Large Image :  Window Treatments Flammability Testing Equipment BS 5867 For Curtains And Drapes

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: ISO
Model Number: SBB20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now
Detailed Product Description
Customized Support: OEM ODM Origin: China
Material: Stainless Steel Usage: Combustion Equipment
Application: Test Function: Independent Research And Development
Highlight:

BS 5867 Flammability Testing Equipment

,

Window Treatments Flammability Testing Equipment

,

Curtains Flammability Testing Equipment

BS 5867 Flammability Testing Equipment for Curtains and Drapes
Product Attributes
Attribute Value
Customized support OEM ODM
Origin China
Material Stainless Steel
Usage Combustion equipment
Application Test
Function Independent research and development
Product Overview

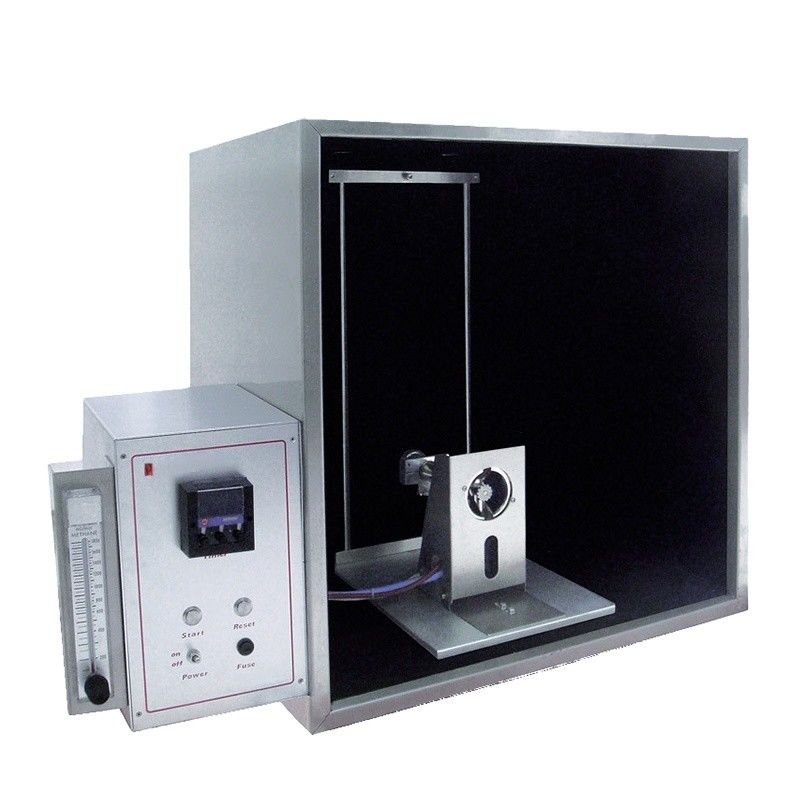

The BS 5867 Flammability Testing Equipment is a specialized apparatus designed to evaluate the fire performance of fabric-based window coverings according to BS 5867 standards. This essential tool serves textile manufacturers, quality control labs, and regulatory bodies by measuring flame spread, afterflame time, and char length to ensure window treatments meet safety requirements.

Key Features
  • Robust Testing Chamber: Constructed from stainless steel with heat-resistant materials, featuring adjustable ventilation and sample holders for various fabric sizes.
  • Precision Measurement: Equipped with calibrated ignition sources and sensors to accurately record flame spread, afterflame time, and char length.
  • Enhanced Safety: Includes automatic shut-off mechanisms, containment features, and complies with all relevant safety standards.
  • Comprehensive Data: Generates detailed reports with graphs and charts for complete flammability analysis.
Technical Specifications
Parameter Specification
Dimensions W675 × D500 × H700mm
Structure 12mm Marinite mineral plate with 1.2mm 304# stainless steel exterior
Compliance NFPA 701:2004 Chapter 5 Requirements
Burner Meker Burner with 10,500 BTU/Hour heat output
Sample Installation 9mm stainless steel strip with 0.7mm diameter needles
Control System Automated timing, air source control with 0.01s resolution timer
Primary Functions

Accurate Flammability Assessment: Precisely measures critical fire safety parameters to evaluate curtain and drape materials.

Regulatory Compliance: Ensures products meet BS 5867 and other international safety standards.

Research & Development: Supports textile innovation by testing various fabric compositions and treatments.

Quality Assurance

Manufactured under strict quality control procedures with regular calibration using traceable standards. Our equipment holds relevant quality certifications and undergoes independent laboratory validation to ensure consistent, reliable performance.

Applications
  • Textile and curtain manufacturing facilities
  • Quality control and testing laboratories
  • Research institutions studying fire-resistant materials
  • Regulatory and certification bodies
