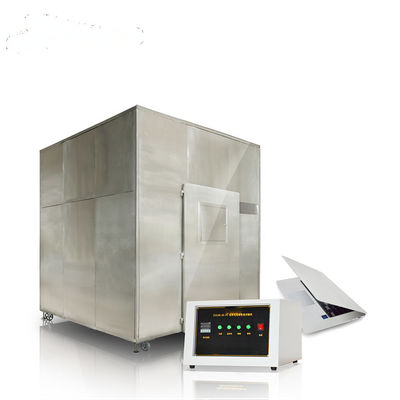

3M Cube Smoke Density Apparatus Chamber Meets IEC 61034 Standard

1. Product Name and Purpose

2. Product Features

• Robust and Sealed Construction
  • The chamber is constructed from high-quality stainless steel or other corrosion-resistant materials. It is designed to have a volume of exactly 3 cubic meters, with precise internal dimensions to ensure accurate test results. The walls are thick and well-insulated to minimize heat loss and maintain a stable environment during the test. The door of the chamber is equipped with a reliable sealing mechanism to prevent the leakage of smoke and ensure the integrity of the test.
  • The interior of the chamber is smooth and free from any protrusions or irregularities that could affect the flow of smoke or the measurement of light attenuation. It is also equipped with a ventilation system that can be precisely controlled to manage the air supply and exhaust during the test, simulating different ventilation conditions that might occur in real fire scenarios.
• Precision Optical Measurement System
  • The heart of the apparatus is its optical measurement system. It consists of a light source, usually a high-intensity lamp, and a photocell detector. The light source emits a beam of light that passes through the smoke-filled chamber, and the photocell measures the intensity of the light that reaches it. The system is calibrated to provide accurate readings of light attenuation, which is directly related to the smoke density.
  • The optical components are carefully selected and aligned to ensure a stable and reliable measurement. The light source has a known spectral distribution, and the photocell has a high sensitivity and linear response over a wide range of light intensities. The measurement system is also equipped with filters and apertures to control the light path and eliminate any stray light or interference.
• Controlled Combustion and Sample Mounting
  • The chamber is equipped with a sample holder and a combustion system. The sample holder can accommodate different types and sizes of samples, and it is designed to ensure that the sample is exposed to a uniform heat source during combustion. The combustion system can be adjusted to control the temperature, heat flux, and fuel supply, allowing for the simulation of various combustion conditions.
  • The ignition source is reliable and can be precisely controlled. It can be a spark ignition or a gas burner, depending on the nature of the sample. The system also has safety features such as automatic shut-off in case of abnormal combustion or excessive smoke generation, ensuring the safety of the operator and the integrity of the equipment.

3. Specific Parameters

• Warranty	1 Year
  Customized support	OEM, ODM, OBM
  Place of Origin	Guangdong, China
  Power	Electronic
  Test Material	Cables & optical cables
  Standard	IEC61034
  Light source	Imported quartz halogen lamp
  Measurable transmittance range	0% ~ 100%
  Fuel	1.00L±0.01L alcohol
  Dimension	L3 * W3 * H3 m
  nominal luminous flux	2000Lm ~ 3000Lm
  Nominal power	100 W
  Material	SUS 304 Stainless Steel

4. Product Functions

• Accurate Smoke Density Evaluation
  • The primary function of the IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber is to provide a detailed and accurate assessment of the smoke density of materials. By precisely measuring the light attenuation caused by the smoke, it determines the optical density and specific extinction area, which are key parameters for characterizing the smoke-producing potential of a material. This information is valuable for comparing different materials and selecting those with lower smoke density, which can improve visibility and reduce the toxicity risks in a fire.
  • The measurement of smoke density over time also allows for the study of the combustion kinetics and the development of smoke. It can help identify the stages of combustion when the most smoke is produced and understand how different factors such as temperature, ventilation, and sample composition affect the smoke density.
• Compliance with Safety Standards and Regulations
  • The fire safety industry is subject to strict standards and regulations. The IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber is a reliable tool for ensuring compliance. It enables manufacturers and testing laboratories to conduct tests in accordance with the IEC 61034-3 standard and other relevant international and national safety regulations. By using this apparatus, they can prove that their products meet the necessary smoke density criteria, facilitating market access and enhancing consumer confidence.
  • Regulatory bodies rely on the accurate test results obtained from this equipment to enforce safety regulations. It serves as a dependable means for inspectors and certifying agencies to determine the suitability of materials and products for use in different applications, ensuring that only those that meet the required safety levels are approved.
• Research and Development Support
  • In the field of materials science and fire safety research, the apparatus is an invaluable asset. It allows researchers to study the smoke density of new and innovative materials, such as flame-retardant polymers, composite materials, and bio-based materials. By understanding how different formulations and processing methods affect smoke density, they can optimize the design and production of fire-safe materials.
  • The detailed data provided by the IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber serves as a basis for developing new fire safety strategies and technologies. It can be used to evaluate the effectiveness of smoke suppressants, ventilation systems, and fire detection and suppression devices, contributing to the overall improvement of fire safety in various industries.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber is manufactured under strict quality control procedures. Each component is carefully sourced and inspected for quality and performance. The assembly process is carried out by highly trained technicians in a clean and controlled environment, ensuring the proper alignment and functionality of all parts.
  • The calibration of the optical measurement system, combustion system, and other sensors is a critical and regular part of the manufacturing process. It is performed using traceable reference standards to guarantee the accuracy and reproducibility of the test results. Rigorous quality audits and inspections are conducted at various stages of production to maintain the highest level of product quality.
• Quality Certification and Validation
  Our apparatus has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the IEC 61034-3 standard and other relevant international and national safety standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Building Materials Industry
  • A leading manufacturer of building insulation materials used the IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber to evaluate the smoke density of their new product line. The test results showed that a particular type of insulation material had a significantly lower smoke density compared to traditional materials. This led to the successful marketing of the new insulation as a fire-safe option, increasing its demand in the construction industry and enhancing the company's reputation.
  • A producer of interior wall panels used the apparatus to optimize the formulation of their panels to reduce smoke density. By testing different combinations of resins and fillers, they were able to develop a panel with improved fire performance, meeting the strict smoke density requirements for public buildings and commercial spaces.
• Electrical Equipment Industry
  • An electrical equipment manufacturer used the IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber to test the smoke density of their cable insulation materials. The data obtained helped them select a more suitable insulation material that produced less smoke during a potential fire. This improved the safety of their electrical products and reduced the risk of smoke-related damage and downtime in case of a fire.
  • A manufacturer of electronic enclosures used the apparatus to evaluate the smoke density of different plastic materials used in their enclosures. They were able to identify a material that not only had good mechanical properties but also a low smoke density, enhancing the overall fire safety of their products.
• Research Institutions
  • A research institute focused on fire safety used the IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber to study the effect of different flame retardants on the smoke density of polymers. The data they collected led to the development of new flame retardant formulations that effectively reduced smoke density while maintaining the polymer's other properties, contributing to the advancement of fire-safe polymer technology.
  • Another research institution investigated the smoke density of bio-based composites for automotive applications. Their studies helped in the design of more sustainable and fire-safe automotive components, reducing the environmental impact and improving passenger safety.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber for their specific testing needs. We offer demonstrations and training to familiarize customers with the operation and functionality of the equipment before purchase. We also assist in selecting the appropriate test methods and accessories based on the materials and applications to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the apparatus operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the equipment.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the IEC 61034-3 3 Metre Cube Smoke Density Apparatus Chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with relevant standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies.
