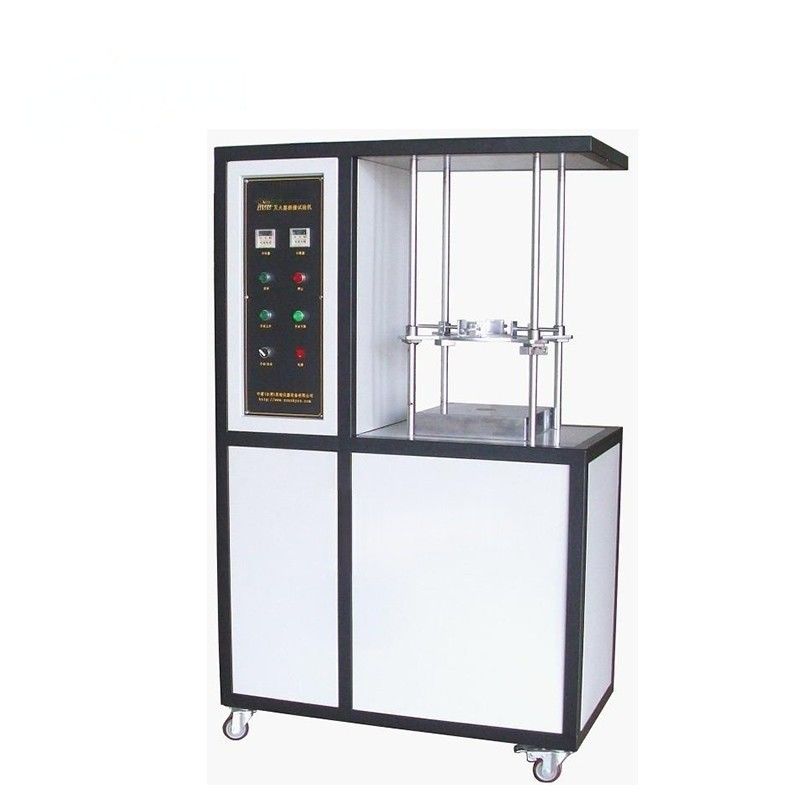

Fire Extinguisher Vibration Testing Machine Meets ISO 7165 Certification

Large Image : Fire Extinguisher Vibration Testing Machine Meets ISO 7165 Certification

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	SBB20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Origin:	China
Material:	Stainless Steel	Usage:	Combustion Equipment
Application:	Test	Function:	Independent Research And Development
Highlight:	Fire Extinguisher Vibration Testing Machine , ISO 7165 Vibration Testing Machine , Fire Extinguisher Vibration Testing Equipment

Fire Extinguisher Vibration Testing Machine Meets ISO 7165 Certification

Attribute	Value
Customized support	OEM ODM
Origin	China
Material	Stainless Steel
Usage	Combustion equipment
Application	Test
Function	Independent research and development

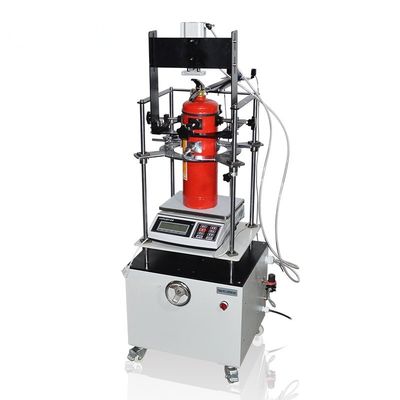

ISO 7165 Fire Extinguisher Vibration Testing Machine

This specialized equipment evaluates fire extinguishers' ability to withstand transportation and handling rigors through controlled vibration conditions, simulating real-world scenarios to ensure durability and reliability.

Product Features

Robust Construction: Heavy-duty steel frame with precisely machined vibration table and adjustable fixtures for secure extinguisher mounting.
Precision Control: Electromechanical/hydraulic actuators generate 5Hz-500Hz vibrations with adjustable amplitude (mm to cm range) via user-friendly control panel.
Advanced Data Analysis: Sophisticated acquisition system monitors extinguisher response, with software generating detailed performance reports and graphs.

Technical Specifications

Maximum test load	20kg ~ 32kg
Frequency range	1 Hz to 100 Hz
Amplitude	0 ~ 5mm
Maximum acceleration	< 20g
Vibration direction	Vertical + horizontal + lateral
Vibration waveform	Sine wave
Programmable settings	1Hz ~ 100Hz, 1-15 segments with arbitrary frequency/time settings, cyclable
Power supply	AC220V±10%, 0.75KW, max current: 5A
Host dimensions	L680 x W500 x H1350 mm, weight: 120 kg

Key Benefits

Accurately evaluates extinguisher structural integrity and component performance under vibration
Ensures compliance with ISO 7165 and other international safety standards
Supports R&D for improved extinguisher designs and materials
Validates product quality through stringent manufacturing and calibration processes

Applications

Essential for fire extinguisher manufacturers, quality control labs, research institutions, and regulatory agencies to ensure product reliability in industrial, marine, and commercial environments.

Quality Assurance

Manufactured under strict quality control with regular calibration using traceable standards. Independently validated to ensure accurate, reliable test results conforming to ISO 7165 requirements.
