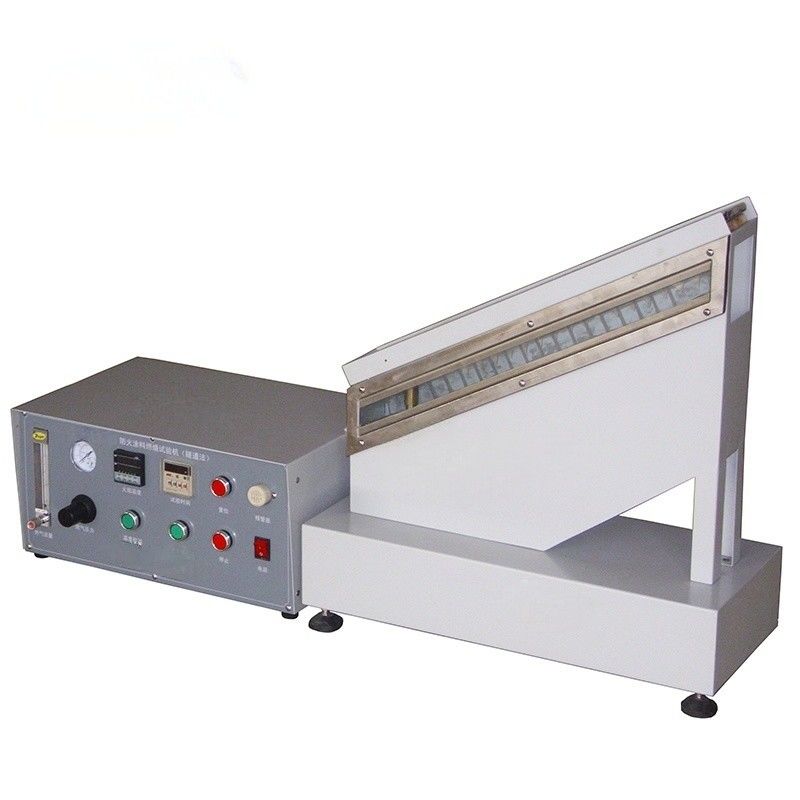

2 Feet Tunnel Flammability Tester for Fire Retardant Paints

Large Image : 2 Feet Tunnel Flammability Tester for Fire Retardant Paints

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	SBB20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Origin:	China
Material:	Stainless Steel	Usage:	Combustion Equipment
Application:	Test	Function:	Independent Research And Development
Highlight:	2 Feet Tunnel Flammability Tester , Tunnel Flammability Tester

2 Feet Tunnel Flammability Tester for Fire Retardant Paints

Customized support: OEM ODM

Origin: China

Material: Stainless Steel

Usage: Combustion equipment

Application: Test

Function: Independent research and development

Small Scale Evaluation of Fire Retardant Paints Flammability Tester (2-Foot Tunnel Method)

This specialized instrument is designed to assess the flammability characteristics of fire retardant paints with high accuracy using standardized small-scale testing. Ideal for research labs, paint manufacturers, and quality control departments, it provides critical data for evaluating fire safety performance.

Key Features and Benefits

Robust and Heat-Resistant Construction

Constructed from high-quality stainless steel and heat-resistant alloys
Precisely engineered 2-foot tunnel for stable, uniform heat and flame environment
Adjustable burner system with reliable fuel supply mechanism
Protective exterior casing for operator safety

Precision Instrumentation

Advanced optical sensors for accurate flame spread measurement
Temperature sensors for heat evolution monitoring
Intuitive user interface with real-time data acquisition
Detailed report generation with graphs and charts

Flexible Test Setup

Adjustable sample holder for various sizes and shapes
Configurable ventilation system for controlled air flow
Supports multiple test methods and standards

Technical Specifications

Parameter	Specification
Test station	1 station
Power supply	AC220 (±10%) V/50HZ, total power is 100W
Sample size	L600mm * W90mm, thickness of 5mm

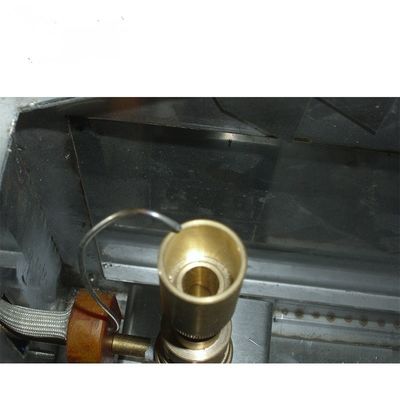

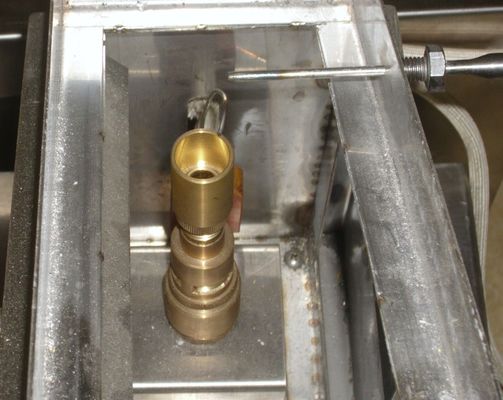

Burner	Gas burner with top diameter of 20 mm and height of 200 mm
Combustion gas source	Natural gas, liquefied petroleum gas or gas
Bunsen burner flame temperature	900℃±20℃
Tunnel furnace size	L610 x W250 x H640 mm
Control cabinet size	L480 x W320 x H245 mm

Core Functions

Accurate Flammability Evaluation

Measures critical parameters including flame spread rate, afterflame time, and smoke production to assess fire retardant paint effectiveness.

Compliance Verification

Supports testing according to ASTM D3806 and other international standards for regulatory compliance.

R&D Support

Enables formulation optimization by evaluating the impact of additives, pigments, and resin systems on fire resistance.

Quality Assurance

Manufactured under strict quality control with regular calibration using traceable reference standards. The tester holds relevant quality certifications and has been validated by independent testing laboratories.

Application Examples

Paint manufacturers developing high-performance fire retardant coatings
Building materials companies selecting fire-safe paints for wood products
Automotive manufacturers testing interior coatings for fire resistance
Transportation equipment developers creating fire-safe cargo coatings

Service and Support

Pre-sales technical consultation and demonstrations
On-site installation and commissioning
Comprehensive maintenance and calibration services
Operator training programs
24/7 technical support

The Small Scale Evaluation of Fire Retardant Paints Flammability Tester (2-Foot Tunnel Method) is an essential tool for ensuring fire safety in painted surfaces. With its advanced features and reliable performance, it empowers manufacturers to develop safer products and comply with international safety standards.
