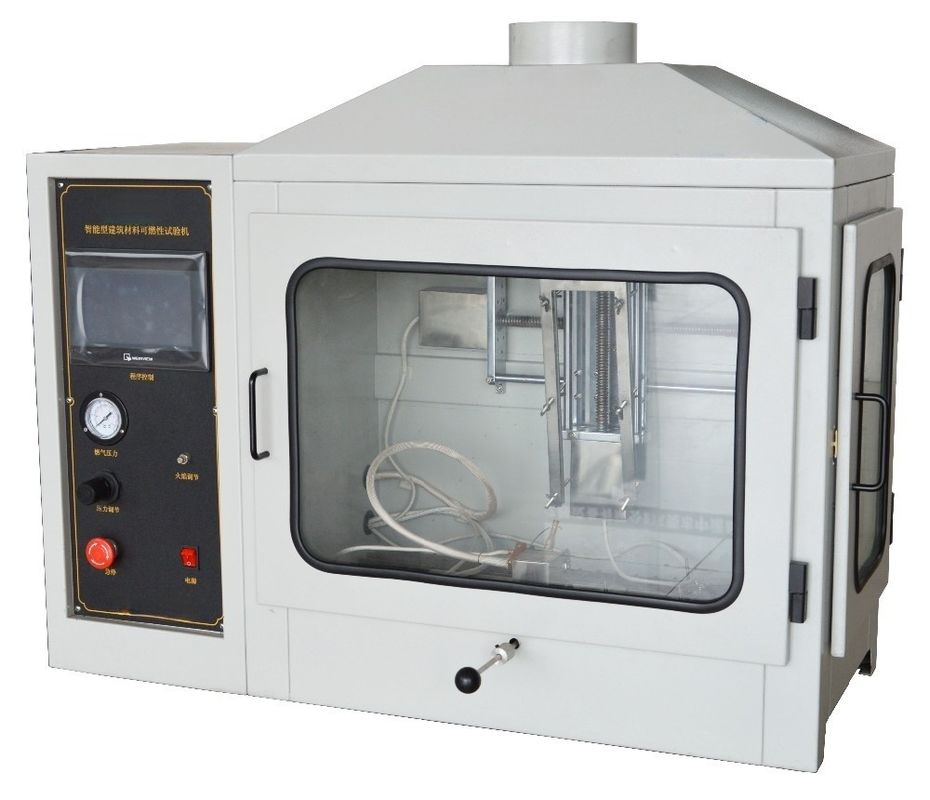

Building Materials Ignitability Flammability Tester For Single Flame Source Test
| Attribute |
Value |
| Customized support |
OEM ODM |
| Origin |
China |
| Material |
Stainless Steel |
| Usage |
Combustion equipment |
| Application |
Test |
| Function |
Independent research and development |
Product Overview
The Building Materials Ignitability Flammability Tester is a critical safety assessment tool for the construction industry. This precision instrument evaluates how building materials respond to controlled flame exposure, providing essential data for architects, engineers, and manufacturers to ensure fire safety compliance.
Key Features
Robust and Heat-Resistant Construction
Constructed from high-grade stainless steel for corrosion resistance and thermal durability. Features a precision-engineered burner with adjustable flame parameters and automatic safety shut-off mechanisms.
Precision Measurement Capabilities
Equipped with advanced sensors to accurately measure ignition time, flame spread rate, and combustion duration. Includes intuitive interface for parameter adjustment and real-time data recording with comprehensive reporting.
Flexible Testing Configuration

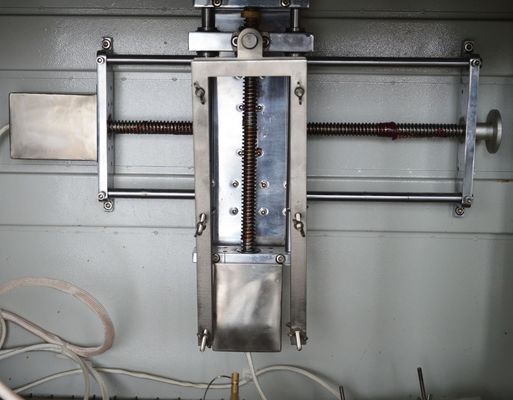

Accommodates diverse sample sizes and shapes with adjustable holders. Configurable for multiple international testing standards with controlled ventilation to simulate real-world conditions.
Technical Specifications
Complete configuration: Control cabinet, combustion chamber, burner, solenoid valve, igniter, and sample holder
Power supply: AC220V/10%, 50Hz
Gas requirement: >95% propane gas (customer-supplied)
Flame time setting: 0-99 minutes 99 seconds
Burner specifications: Nozzle diameter 0.17mm with four 4mm air suction holes
Standard flame height: 20±2mm at 45° inclination
Ignition system: High voltage electronic automatic ignition
Core Functions
- Accurate measurement of material ignitability and flame spread characteristics
- Compliance verification with ASTM E136 and other international safety standards
- Support for material R&D and fire performance optimization
- Quality control testing for manufacturing processes
Quality Assurance
Manufactured under strict quality control protocols with regular calibration using traceable standards. Independently validated and certified to meet international testing requirements, with continuous improvement based on technological advancements.
Applications
Building Material Manufacturers
Used by insulation and wallboard producers to develop and certify fire-resistant products, enabling compliance with stringent safety regulations and market expansion.
Architectural Firms
Supports material selection for high-rise buildings, ensuring optimal fire safety in critical areas like stairwells and corridors.
Research Institutions
Facilitates development of sustainable building materials with enhanced fire performance characteristics.
Service & Support
Comprehensive Technical Support
Includes pre-sales consultation, on-site installation, operator training, and ongoing maintenance services. Our technical team provides 24/7 support for troubleshooting and method optimization.
Conclusion
This Flammability Tester represents an essential investment for any organization committed to building material fire safety. Its precision measurements and reliable performance enable compliance with regulations while supporting innovation in fire-resistant material development.
