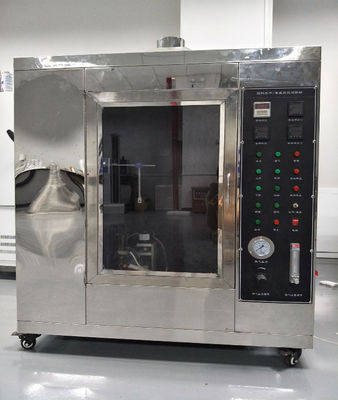

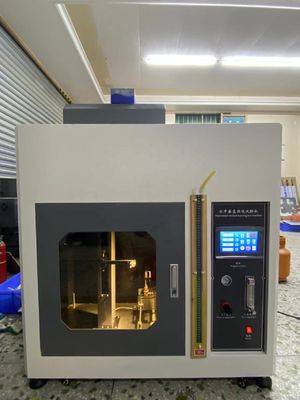

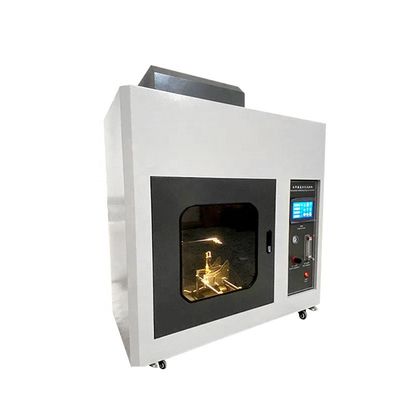

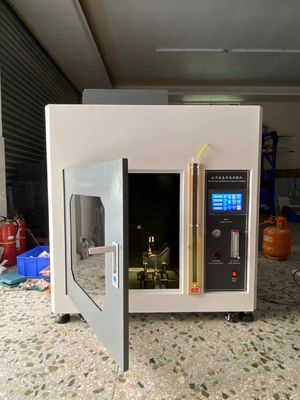

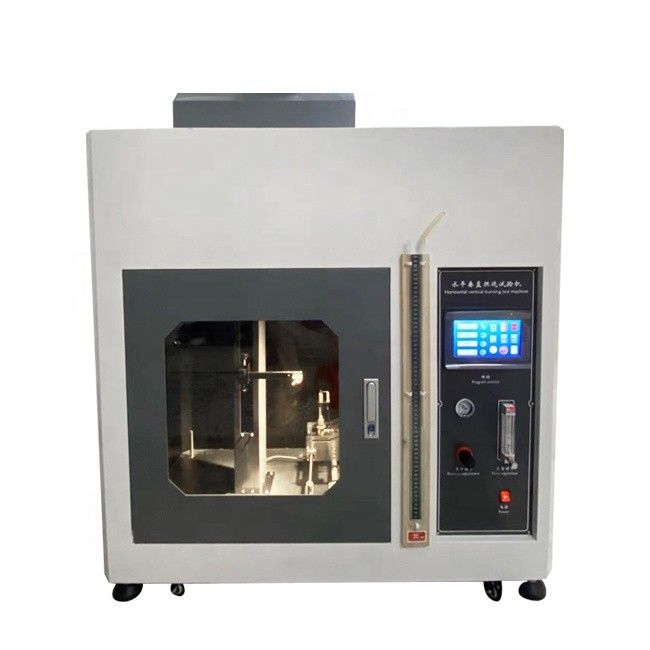

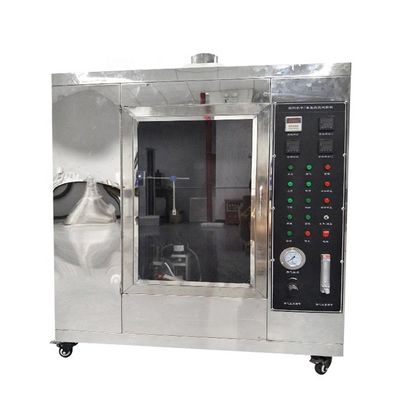

Vertical And Horizontal Flame Test Chamber for Automotive and Transportation

Large Image : Vertical And Horizontal Flame Test Chamber for Automotive and Transportation

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	SBB20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Origin:	China
Material:	Stainless Steel	Usage:	Combustion Equipment
Application:	Test	Function:	Independent Research And Development
Highlight:	Automotive Flame Test Chamber , Transportation Flame Test Chamber

Vertical And Horizontal Flame Test Chamber for Automotive and Transportation

In the highly regulated and safety-conscious automotive and transportation industries, ensuring the fire resistance of materials is critical. Our Vertical And Horizontal Flame Test Chamber is designed to meet stringent requirements, providing accurate assessment of material flammability and fire performance.

Customized support	OEM ODM
Origin	China
Material	Stainless Steel
Usage	Combustion equipment
Application	Test
Function	Independent research and development

Core Functionality

Engineered to conduct comprehensive flame tests in both vertical and horizontal orientations, this chamber serves manufacturers, suppliers, and research institutions in quality control of automotive and transportation materials. It measures critical parameters including flame spread rate, afterflame time, and heat release rate.

Key Features

Robust Construction

High-quality heat-resistant steel construction withstands extreme temperatures
Precision-engineered burner system with adjustable flame height, intensity, and angle
Safety features prevent accidental ignition

Advanced Instrumentation

State-of-the-art sensors monitor temperature changes and flame behavior
Calorimeter measures heat release rate
Real-time data acquisition with industry-standard software compatibility

Flexible Test Setup

Accommodates various sample sizes in vertical/horizontal configurations
Adjustable ventilation system simulates different air flow conditions
Supports multiple test standards including glow wire and needle flame tests

Technical Specifications

Item	Specification
Test temperature	0 ~ 500℃
Temperature accuracy	± 1℃
Opening diameter	25 mm
Air flow	0 ~ 100 mm/s (adjustable)
Power	AC 220 V, 50 HZ
Dimension	L 1400 * W 600 * H 1900 (mm)

Primary Functions

Accurate flammability assessment of automotive materials
Compliance verification with FMVSS, ECE, and other industry standards
Research and development support for new materials

Quality Assurance

Manufactured under strict quality management systems with regular audits and inspections. Each component is carefully sourced and calibrated using traceable reference standards. The chamber holds relevant quality certifications and has been validated by independent testing laboratories.

Application Areas

Automotive interiors (seats, carpets, dashboard components)
Transportation infrastructure (tunnels, railway stations)
Aerospace cabin materials and maritime components

Service & Support

Pre-sales technical consultation and demonstrations
Comprehensive after-sales service including installation and maintenance
Training programs and 24/7 technical support

The Vertical And Horizontal Flame Test Chamber is an essential tool for ensuring fire safety in automotive and transportation materials. Its advanced features and reliable performance empower industries to develop safer products while meeting strict compliance requirements.
