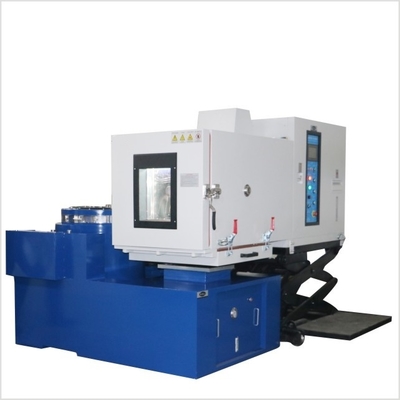

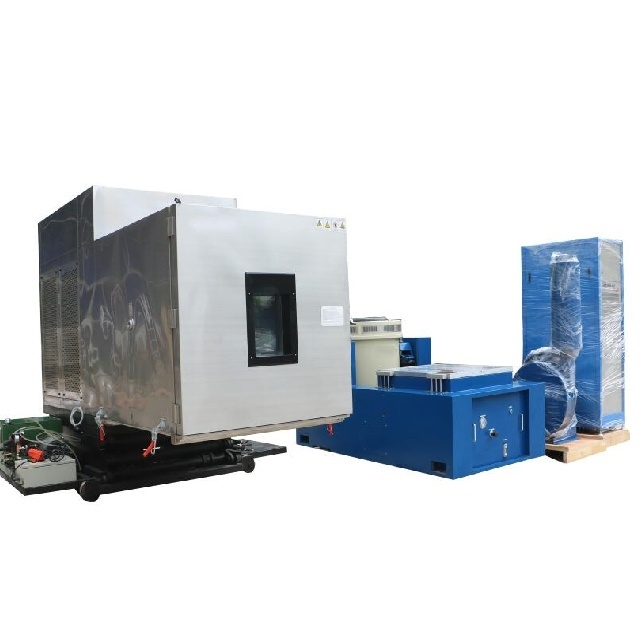

High-Payload Multi-Axis Vibration Chamber with -70°C to +180°C Climatic Chamber

Our High-Payload Multi-Axis Vibration Chamber is the ultimate integrated solution for comprehensive environmental stress testing of large and heavy products. This advanced system allows you to simultaneously subject your test articles to complex, multi-directional vibrations (X, Y, and Z axes) and a wide range of climatic extremes, from a frigid -70°C to a scorching +180°C. Engineered for the most demanding applications in automotive, aerospace, and energy sectors, this powerful chamber provides the most realistic simulation of real-world operational environments, uncovering critical design flaws and ensuring the unparalleled reliability of your products.

Key Features

• High-Payload Capacity: Designed to accommodate substantial weights, allowing for the rigorous testing of large assemblies, battery packs, server racks, and other heavy components with a high degree of accuracy.

• True Multi-Axis Vibration: Capable of generating complex vibration profiles along the X, Y, and Z axes, either simultaneously or sequentially. This accurately replicates multi-directional dynamic loads and stresses encountered during transportation and operation.

• Wide-Range Climatic Chamber: The integrated environmental chamber delivers a broad spectrum of temperatures, from a freezing -70°C to a searing +180°C, and includes precise humidity control. This enables testing under a full range of global climatic conditions.

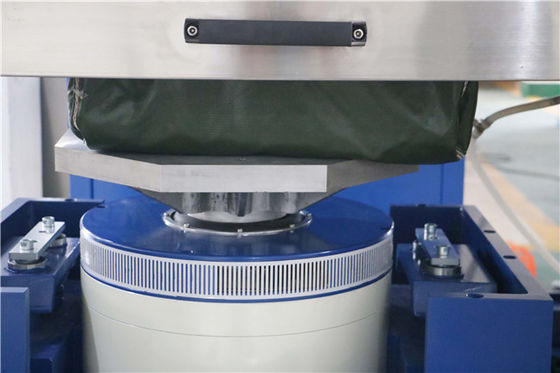

• High-Precision Electrodynamic Shaker: Our shaker provides accurate, repeatable, and controlled generation of complex vibration profiles including sine, random, and shock. This ensures your tests meet rigorous industry standards and specifications.

• Advanced Integrated Control System: A powerful, intuitive controller seamlessly synchronizes multi-axis vibration with the climatic cycles. This allows for precise programming and execution of intricate, multi-variable test sequences.

• Comprehensive Data Acquisition: Continuously monitors and records all environmental parameters (temp, humidity) and vibration data (acceleration, displacement), providing detailed insights and auditable data for analysis and compliance reports.

• Robust & Durable Construction: Built with industrial-grade components and a reinforced structure for longevity and reliability under continuous, demanding combined-stress operation.

• Customizable Fixturing: Our engineering team designs and manufactures application-specific fixtures to securely mount diverse products, optimizing stress transmission and ensuring test integrity.

Applications

• Automotive: Full validation of large EV battery packs, engine assemblies, and chassis components against combined road vibration and extreme climatic conditions.

• Aerospace & Defense: Qualification of large avionics racks, structural components, and payload systems for performance in harsh climatic conditions coupled with multi-axis flight vibrations.

• Energy Storage Systems (ESS): Comprehensive reliability and safety validation for large-scale battery modules and grid-scale storage units under combined operational and environmental stresses.

• Industrial & Heavy Equipment: Durability testing of control panels, communication equipment, and machinery components for use in challenging environments.

• Research & Development: Advanced structural dynamics analysis and new product validation for large prototypes under the most realistic conditions.

Benefits

• Unrivaled Realism: Provides the most accurate and comprehensive assessment of product performance by simulating multi-directional and combined environmental stresses. This reveals failure modes missed by single-factor tests.

• Accelerated Testing & Development: Significantly reduces overall test time by performing multi-axis vibration and climatic stress simultaneously, speeding up product validation and time-to-market.

• Superior Product Durability: Proactively identifies critical design flaws and weaknesses, ensuring products are robust enough to withstand extreme real-world conditions.

• Streamlined Operations: Integrates multiple test capabilities into one system, simplifying operations and reducing the need for separate equipment and facilities.

• Comprehensive Data Insights: Generates rich, synchronized data for in-depth analysis, contributing to superior design optimization and robust validation reports.

Technical Specifications


Shaker

Ready to push the boundaries of product testing with the most realistic environmental simulations? Contact our experts today to discuss your requirements for a High-Payload Multi-Axis Vibration Chamber.
