Custom Small Thermal Chamber Empowering Quality Assurance In Electronics And Electrical Appliances

Custom Small Thermal Chamber Empowering Quality Assurance In Electronics And Electrical Appliances
Custom Small Thermal Chamber Empowering Quality Assurance In Electronics And Electrical Appliances

Large Image :  Custom Small Thermal Chamber Empowering Quality Assurance In Electronics And Electrical Appliances

Product Details:
Place of Origin: CHINA
Brand Name: PRECISION
Certification: ISO
Model Number: THC-80
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6000
Packaging Details: Standard export packaging
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now chat now
Detailed Product Description
Customized Support: OEM ODM Origin: China
Material: Stainless Steel Controller: Programmable LCD Touch Screen
Temp Accuracy:: 0.5°C Temp Uniformity: 0.5°C
Refrigerant: Environmental Friendly
Highlight:

Electronics Small Thermal Chamber

,

Electrical Appliances Small Thermal Chamber

,

Custom Small Thermal Chamber

Custom Small Thermal Chamber Empowering Quality Assurance In Electronics And Electrical Appliances
Product Attributes
Attribute Value
Customized support OEM ODM
Origin China
Material Stainless Steel
Controller Programmable LCD Touch Screen
Temp accuracy 0.5°C
Temp uniformity 0.5°C
Refrigerant Environmental friendly
Introduction

In the vibrant and competitive landscape of the electronics and electrical appliances industry, product performance and reliability are of utmost significance. A custom small thermal chamber serves as an indispensable asset for manufacturers, researchers, and quality control teams. This specialized equipment is designed to simulate a diverse range of thermal conditions, enabling comprehensive testing of electronic components and electrical appliances.

Key Features
Precise Temperature Control
  • Wide-ranging Temperature Adjustment: The custom small thermal chamber offers an extensive temperature adjustment spectrum, typically spanning from -40°C to 150°C.
  • Exceptional Temperature Accuracy: Equipped with state-of-the-art temperature-control algorithms and high-precision sensors, the chamber can maintain the set temperature with an accuracy of ±0.3°C.
Compact and Portable Design
  • Space-saving Form Factor: Engineered with a compact and portable design, this thermal chamber is ideal for laboratories with limited space.

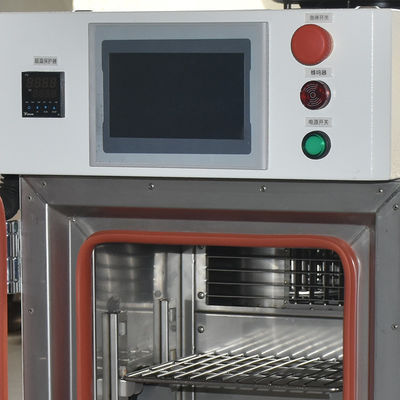

  • User-friendly Operation: The chamber features an intuitive control panel with digital display and easy-to-use interface.
Uniform Temperature Distribution
  • Advanced Air Circulation Technology: Equipped with strategically placed fans and air ducts to create uniform temperature distribution throughout the test volume.
Customizable Fixturing and Accessories
  • Product-specific Fixtures: Can be customized with various fixtures designed to securely hold different types of electronic components.
  • Optional Accessories: Humidity-control modules and gas-injection systems can be added for enhanced functionality.
Specifications
Internal Capacity 150L
Internal Dimensions(mm) W500×H500×D600
Sample Limitations
  • Flammable, explosive, and volatile material testing and storage
  • Testing and keeping corrosive materials in storage
  • Testing or keeping biological samples
  • Strong electromagnetic emission source specimens are tested and stored
Temperature Range -40°C~+150°C
High temperature zone temperature range +40°C/+150°C
Low temperature zone temperature range -40°C/0°C
Temperature recovery time ≤ 5 minutes (temperature changeover time: 30S)
High and low temperature exposure time ≥30min
Temperature fluctuations ±0.5℃
Temperature deviation ±2.0°C
Test weight 5 kg (excluding heat source)
Test environmental conditions Ambient temperature: 5 to 35°C
Relative humidity ≤ 85% RH
Meet test standards GB/T 2423.1-2001 Test A: Low temperature test method
GB/T 2423.2-2001 Test B: High temperature test method
GB/T 2423.22-2002 Test N: Temperature change test method Test Na
GJB 150.3-1986 High-temperature tests
GJB 150.4-1986 Low temperature tests
GJB 150.5-1986 Temperature shock tests
Ext. Dimensions(mm) W 1600×H 2150×D 1700
Benefits for the Electronics and Electrical Appliances Industry
Enhanced Product Performance and Reliability
  • Comprehensive Testing: Enables identification of potential design flaws and performance issues early in development.
  • Quality Assurance: High-precision temperature control ensures consistent and reliable test results.
Cost-Efficiency
  • Reduced Field Failures: Thorough thermal testing helps reduce product failures in the field.
  • Optimized R&D and Production Processes: Compact size and user-friendly operation accelerate the R&D cycle.
