Custom Benchtop Thermal Chamber Precision Environment Simulation For Semiconductor Components And PCB

Large Image : Custom Benchtop Thermal Chamber Precision Environment Simulation For Semiconductor Components And PCB

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	TSC-25

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Temp Range:	+150~-70℃
Internal Material:	304 Stainless Steel	External Material:	Powder Coated #304 Stainless Steel
Temperature Uniformity ℃:	0.01	Humidity Uniformity % R. H.:	0.1
Temperature Stability ℃:	±0.3
Highlight:	Custom Benchtop Thermal Chamber , PCB Thermal Chamber Precision Environment , Semiconductor Components Thermal Chamber

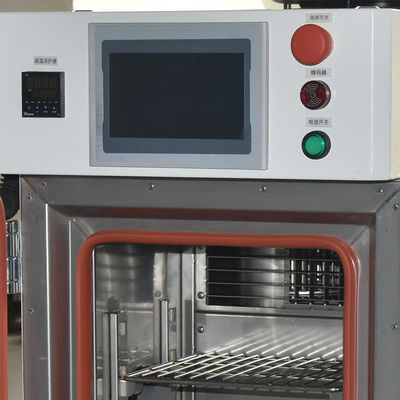

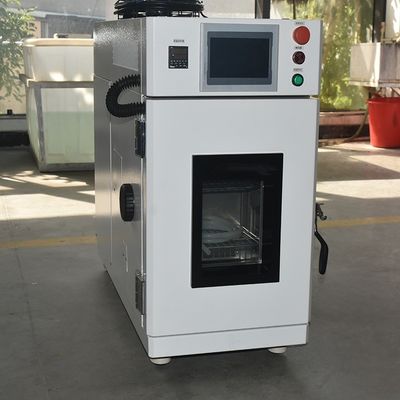

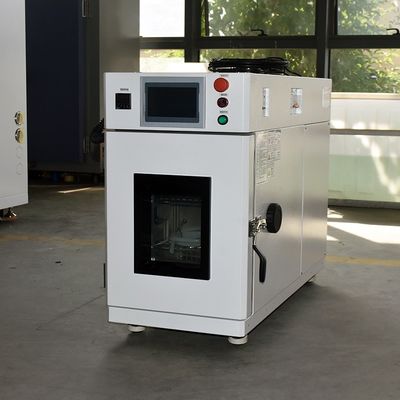

Custom Benchtop Thermal Chamber: Precision Environment Simulation for Semiconductor Components and PCB

1. Introduction

In the fast - paced and highly demanding semiconductor and printed circuit board (PCB) industries, the performance and reliability of components are of utmost importance. A custom benchtop thermal chamber is a specialized piece of equipment designed to meet the unique needs of testing semiconductor components and PCBs. This compact yet powerful device allows manufacturers and researchers to simulate a wide range of thermal conditions, ensuring that these critical components can withstand the rigors of real - world applications.

2. Key Features

2.1 Precise Temperature Control

Wide Temperature Range: The custom benchtop thermal chamber offers an extensive temperature range, typically from - 60°C to 250°C. This broad spectrum enables the simulation of extreme cold, such as the conditions in cryogenic storage for some semiconductor materials, as well as high - temperature scenarios, similar to those experienced during soldering processes for PCBs or under heavy - load operation in electronic devices.

High - Accuracy Regulation: Equipped with advanced temperature - control algorithms and high - precision sensors, the chamber can maintain the set temperature within an accuracy of ±0.1°C. This level of precision is crucial for semiconductor components, as even minor temperature fluctuations can significantly impact their electrical properties, such as the mobility of charge carriers and the performance of transistors. For PCBs, precise temperature control ensures consistent solder joint quality during reflow soldering simulations.

2.2 Compact and Benchtop - Friendly Design

Space - Saving Dimensions: Designed to fit on a standard laboratory bench, the chamber has a compact footprint. Its small size does not compromise its functionality but rather makes it highly accessible for R&D labs, quality control departments, and small - scale production facilities. This benchtop - friendly design allows for easy integration into existing workspaces without the need for major renovations or dedicated large - scale test areas.

User - Friendly Interface: The chamber features an intuitive user - interface, usually with a touch - screen display. Operators can easily set the desired temperature profiles, including ramping rates, hold times, and cycling parameters. The interface also provides real - time temperature readings, status updates, and historical data logging, making it convenient for users to monitor and analyze the thermal testing process.

2.3 Uniform Temperature Distribution

Advanced Air Circulation System: To ensure uniform temperature distribution inside the chamber, it is equipped with an advanced air - circulation system. This system uses strategically placed fans and baffles to create a consistent thermal environment throughout the test volume. For semiconductor components, which are often very small and sensitive to temperature gradients, uniform heating and cooling are essential to obtain accurate and reliable test results. In the case of PCBs, a uniform temperature distribution helps in simulating real - world operating conditions more effectively, where all components on the board should experience similar thermal loads.

2.4 Customizable Fixturing and Accessories

Component - Specific Fixtures: The chamber can be customized with a variety of fixtures designed specifically for semiconductor components and PCBs. These fixtures ensure secure and proper placement of the test samples, allowing for efficient heat transfer and accurate temperature control. For example, specialized holders can be used to hold delicate semiconductor wafers or small - form - factor PCBs, ensuring that they are evenly exposed to the thermal environment.

Optional Accessories: There are also optional accessories available, such as humidity - control modules (for applications that require combined thermal - humidity testing), gas - injection systems (for simulating different atmospheric conditions), and data - acquisition interfaces for seamless integration with external monitoring and analysis software.

3. Specifications

Specification Items	Details
Temperature Range	- 60°C to 250°C
Temperature Accuracy	±0.1°C
Temperature Uniformity	±0.5°C within the working volume
Internal Volume	Custom - sized, typically ranging from 20 liters to 80 liters
Heating Rate	Adjustable from 2.5 Heating Rate]°C/min to 15°C/min
Cooling Rate	Adjustable from 3°C/min to 15°C/min
Power Requirements	380V, 50/60Hz

4. Benefits for the Semiconductor and PCB Industries

4.1 Enhanced Product Performance and Reliability

Rigorous Testing: By subjecting semiconductor components and PCBs to a wide range of thermal conditions in the custom benchtop thermal chamber, manufacturers can identify potential weaknesses and design flaws early in the development process. This leads to improved product performance, as components are optimized to withstand extreme temperatures and thermal cycling. For example, a semiconductor device that has been thoroughly tested in the chamber is less likely to experience thermal - induced failures during its operational life, resulting in more reliable electronic products.

Quality Assurance: The high - precision temperature control and uniform temperature distribution ensure consistent and reliable test results. This helps in maintaining strict quality - control standards, as components that pass the thermal tests are more likely to meet the performance requirements of end - products. In the highly competitive semiconductor and PCB markets, quality assurance is a key factor in gaining customer trust and market share.

4.2 Cost - Efficiency

Reduced Field Failures: Thorough thermal testing in the chamber helps in reducing the number of component failures in the field. Since semiconductor components and PCBs are used in a wide range of applications, from consumer electronics to industrial equipment, a single failure can lead to costly repairs, product recalls, or system downtime. By identifying and addressing potential thermal - related issues on the benchtop, manufacturers can save on the costs associated with post - production failures.

Optimized R&D and Production Processes: The compact size and user - friendly interface of the chamber allow for quick and easy testing, which accelerates the R&D cycle. Engineers can rapidly iterate on their designs, test new materials, and optimize manufacturing processes. This not only reduces the time to market for new products but also minimizes the cost of R&D by eliminating the need for large - scale, expensive test facilities for initial prototyping and testing.

4.3 Flexibility and Adaptability

Customized Testing Solutions: The ability to customize the chamber with specific fixtures and accessories makes it adaptable to a wide range of semiconductor components and PCB designs. Whether it's testing a new high - power semiconductor device or a complex multi - layer PCB, the chamber can be tailored to meet the unique requirements of each test scenario. This flexibility allows manufacturers to stay ahead in a rapidly evolving industry, where new technologies and product designs are constantly emerging.

5. Applications

5.1 Semiconductor Component Testing

Wafer - Level Testing: During the manufacturing of semiconductor wafers, the custom benchtop thermal chamber can be used to perform thermal stress tests. This helps in detecting any defects or weaknesses in the wafer structure, such as cracks or delamination, which may occur due to thermal expansion and contraction. By identifying these issues early, manufacturers can improve the yield and quality of their semiconductor manufacturing processes.

Package - Level Testing: For semiconductor packages, the chamber can simulate the thermal conditions they will encounter in end - products. This includes testing for thermal resistance, which is crucial for efficient heat dissipation. Components with high thermal resistance can overheat, leading to performance degradation or failure. By testing the thermal performance of packages in the chamber, manufacturers can optimize the design of heat sinks and thermal interfaces to ensure proper heat management.

5.2 Printed Circuit Board Testing

Reflow Soldering Simulation: In PCB manufacturing, reflow soldering is a critical process for attaching components to the board. The custom benchtop thermal chamber can accurately simulate the reflow soldering profile, including the pre - heat, reflow, and cooling stages. This allows manufacturers to optimize the soldering process, ensuring strong and reliable solder joints. By testing different solder alloys and soldering parameters in the chamber, they can improve the quality and reliability of PCB assembly.

Thermal Cycling for Reliability Testing: PCBs used in electronic devices are often subjected to thermal cycling during their operational life. The chamber can be used to perform thermal cycling tests, where the PCB is repeatedly heated and cooled to simulate these real - world conditions. This helps in identifying any potential failures due to thermal fatigue, such as cracks in the solder joints or delamination of the PCB layers. By conducting these tests early, manufacturers can improve the long - term reliability of their PCBs.

6. Conclusion

The custom benchtop thermal chamber is an essential tool for the semiconductor and printed circuit board industries. Its precise temperature control, compact design, uniform temperature distribution, and customizable features make it an ideal solution for ensuring the performance and reliability of semiconductor components and PCBs. By using this equipment, manufacturers can enhance product quality, achieve cost - efficiency, and stay competitive in a rapidly evolving market. If you are involved in the semiconductor or PCB industry and are looking for a reliable and flexible thermal - testing solution, contact us today to discuss how our custom benchtop thermal chamber can be tailored to meet your specific needs.
