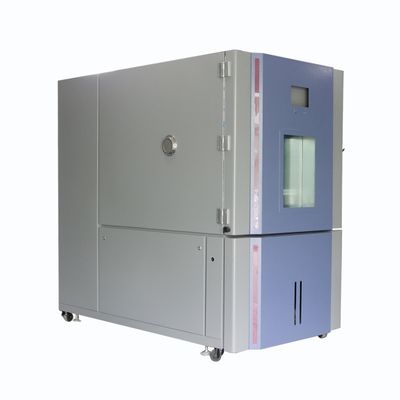

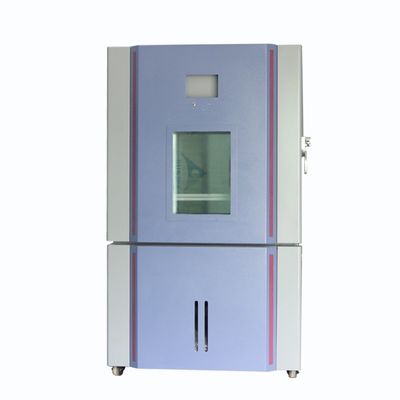

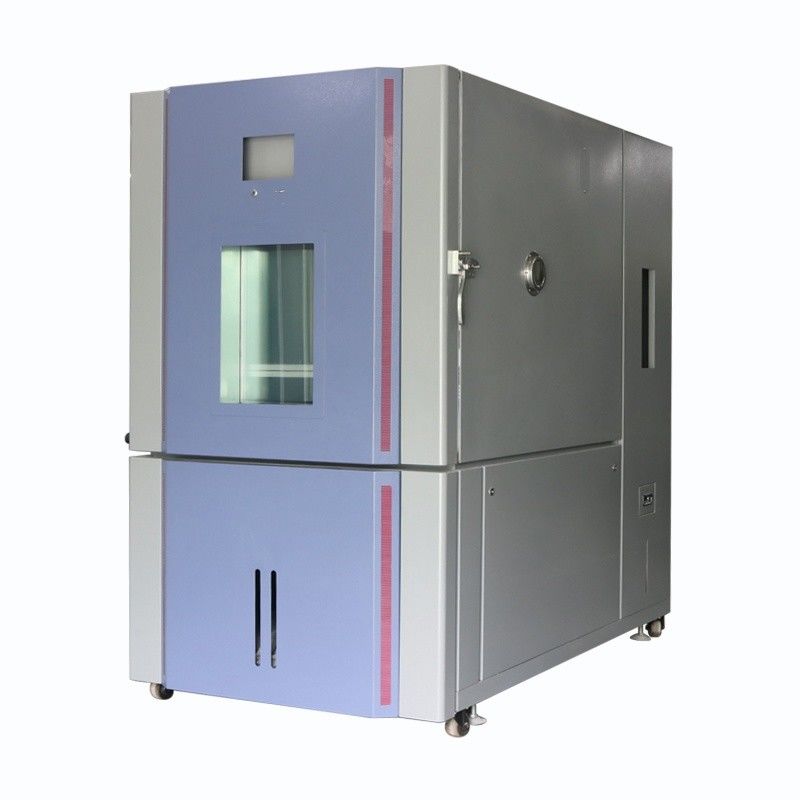

High Precision Medical Temperature Humidity Test Chamber For Disposable Syringes
Product Attributes
| Customized support |
OEM ODM |
| Origin |
China |
| Material |
Stainless Steel |
| Controller |
Programmable LCD Touch Screen |
| Temp accuracy |
0.5°C |
| Temp uniformity |
0.5°C |
| Refrigerant |
Environmental friendly R23/R404 |
Product Overview
Our high-precision medical temperature humidity test chamber is specifically designed for testing disposable syringes under controlled environmental conditions. This advanced solution enables manufacturers and quality control professionals to ensure syringe reliability and safety by simulating various temperature and humidity scenarios encountered during storage, transportation, and use.
Key Features
Ultra-High Precision Control
Achieves temperature control from -70°C to 150°C with ±0.1°C precision and humidity regulation from 10% to 90% RH with ±2% RH accuracy, replicating diverse environmental conditions with unparalleled precision.
Customizable Test Profiles
Allows creation of complex, multi-stage test sequences to simulate actual environmental changes throughout a syringe's lifecycle, including rapid temperature transitions and cyclic humidity variations.
High-Volume Capacity

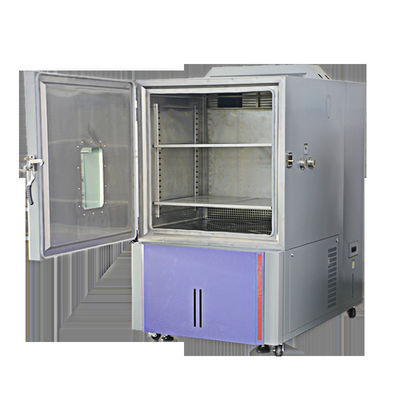

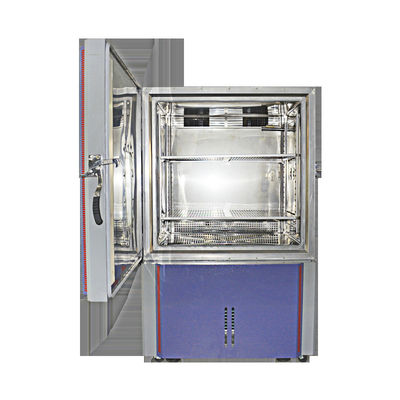

Optimized interior layout accommodates large quantities of syringes while ensuring proper air circulation for uniform exposure to controlled conditions, increasing testing efficiency and reducing cost per unit.
Advanced Monitoring and Data Logging
Integrated system with multiple sensors provides continuous monitoring and high-frequency data logging of temperature, humidity, and other parameters for real-time analysis and post-test evaluation.
Material Compatibility and Hygiene
Constructed with non-reactive, easy-to-clean materials and equipped with air filtration systems to maintain a hygienic testing environment without affecting syringe integrity.
Safety Features
Comprehensive safety systems including over-temperature/humidity protection, fire suppression, and emergency stop buttons ensure secure testing conditions for equipment and personnel.
Technical Specifications
| Model |
THC-225 |
THC-408 |
THC-800 |
THC-1000 |
| Inside dimension (W×D×H) mm |
50×75×60 |
60×85×80 |
100×100×80 |
100×100×100 |
| Outside dimension (W×D×H) mm |
75×165×170 |
85×175×190 |
125×190×190 |
125×190×210 |
| Temperature range |
+150℃~-70℃ |
| Humidity range |
5%~98% R.H |
| Temperature resolution |
0.01℃ |
| Humidity resolution |
0.1% R.H. |
| Temperature stability |
±0.3℃ |
| Humidity stability |
±2% R.H. |
Industry Benefits
By subjecting disposable syringes to precisely controlled temperature and humidity conditions, manufacturers can identify and address potential quality issues early in the production process, ensuring safer medical products for patients worldwide.
