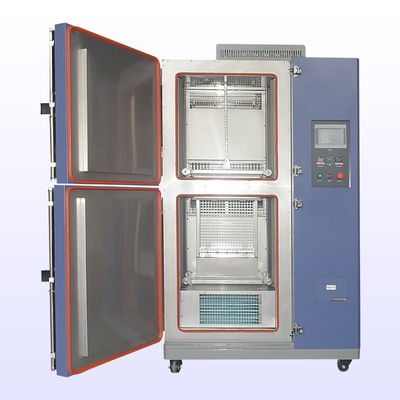

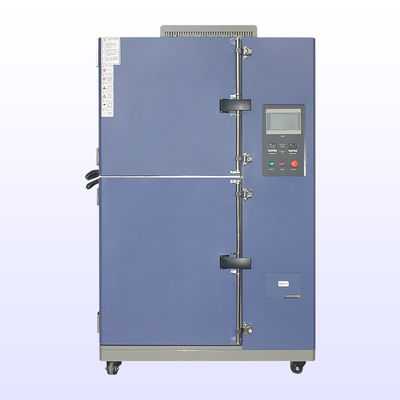

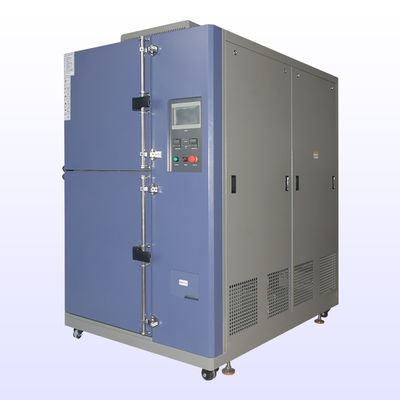

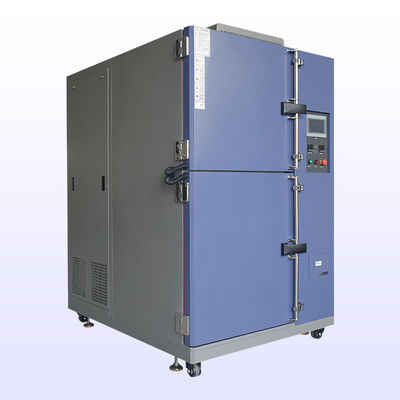

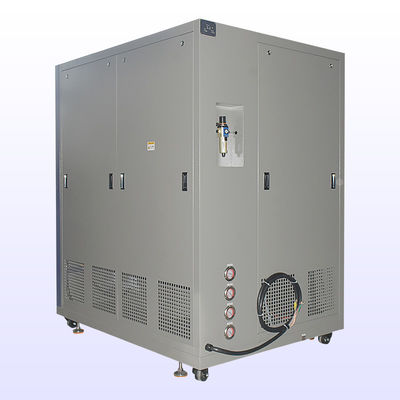

In the automotive industry, the reliability and performance of car engines and components are crucial for ensuring vehicle safety, efficiency, and durability. Our Custom Three - zone Thermal Shock Test Chamber is a specialized and innovative solution tailored to the unique testing requirements of car engines and their components. This advanced chamber allows for precise simulation of extreme temperature variations across three distinct zones, enabling automotive manufacturers to comprehensively evaluate the performance and integrity of their engine parts under realistic and challenging thermal conditions.
The most distinctive feature of our thermal shock test chamber is its three - zone design. Each zone can be independently controlled to achieve different temperature settings, allowing for the creation of complex thermal gradients. The temperature range in each zone can typically span from - 40°C to + 150°C, with a temperature accuracy of ± 1°C. This level of precision ensures that car engine components can be tested under a wide variety of thermal scenarios, such as the different temperature zones within an engine during operation or the temperature variations experienced during cold starts and hot shutdowns.
Similar to other high - end thermal shock test chambers, ours can achieve rapid thermal transitions between different temperature zones. The chamber can switch between high and low temperatures in a matter of seconds, accurately mimicking the sudden temperature changes that car engine components may encounter in real - world driving conditions. For example, when a car is driven from a cold environment into a hot, urban area with stop - and - go traffic, the engine and its components are subjected to rapid temperature fluctuations. The quick thermal transition time (usually within 5 - 8 seconds) significantly reduces the overall testing time, enabling manufacturers to conduct more tests in a shorter period and accelerate the product development cycle.
We understand that different car engine components have unique thermal stress requirements. That's why our three - zone thermal shock test chamber offers fully customizable test profiles. Manufacturers can program specific temperature cycles, dwell times, and transition rates for each zone based on the specific application and expected operating conditions of the component. For instance, a turbocharger may require a more extreme temperature cycle in one zone to simulate the intense heat generated during high - speed operation, while a coolant sensor may need a different profile to test its performance under varying coolant temperatures. The ability to customize test profiles ensures that each component is tested under the most relevant and realistic thermal conditions.
The chamber is designed with a spacious interior to accommodate a wide range of car engine components, from small sensors to large engine blocks. The standard chamber capacity is available in multiple sizes, starting from 49 liters up to 2000 liters, and can be customized to meet specific requirements. This allows manufacturers to test multiple components simultaneously or large - scale engine assemblies, increasing testing efficiency and reducing costs. Whether it's testing a batch of fuel injectors or a complete engine cylinder head, the large chamber capacity provides the flexibility needed to conduct comprehensive testing.
Built with high - quality materials and advanced engineering, our thermal shock test chamber is designed to withstand the rigors of continuous use in an automotive testing environment. The chamber's exterior is made of corrosion - resistant materials that can endure harsh chemicals and environmental conditions. The internal components are also carefully selected for their durability and reliability, ensuring minimal maintenance requirements and long - term performance. This robust construction not only guarantees the accuracy and consistency of the test results but also provides a safe and stable testing platform for automotive engineers.
The thermal shock test chamber features a user - friendly interface that simplifies the operation and monitoring of tests. The intuitive touch - screen control panel allows operators to easily set up test parameters for each zone, start and stop tests, and monitor real - time temperature data. The interface also provides access to historical test data, enabling users to analyze trends and make informed decisions about product design and quality improvement. Additionally, the chamber is equipped with comprehensive safety features, such as over - temperature protection, leakage protection, and emergency stop buttons, ensuring the safety of operators and the integrity of the testing equipment.
| Model |
TSC-49-3 |
TSC-80-3 |
TSC-150-3 |
TSC-216-3 |
TSC-512-3 |
TSC-1000-3 |
| Inside dimension(W x D x H) mm |
40 x 35 x 35 |
50 x 40 x 40 |
65x 50 x 50 |
60 x 60 x 60 |
80 x 80 x 80 |
100 x 100 x 100 |
| Outside dimension(W x D x H) mm |
128x 190 x 167 |
138 x 196 x 172 |
149 x 192 x 200 |
158 x 220 x 195 |
180 x 240 x 210 |
220 x 240x 220 |
| Internal material |
#304 Stainless Steel |
| External material |
Powder coated #304 Stainless Steel |
| High temperature range |
60 ℃ ~ 200 ℃ |
| Low temperature range |
0 ℃ ~ -70 ℃ |
| Test temperature range |
60 ℃ ~ 180 ℃ / 0 ℃ ~ -70 ℃ |
| Temperature recovery time |
1-5min |
| Temperature stability ℃ |
±2 |
| Cylinder switching time |
10s |
| High temperature ℃ |
150 |
150 |
150 |
150 |
150 |
150 |
| Heating time (min) |
20 |
30 |
30 |
30 |
30 |
30 |
| Low temperature |
-40, -50, -65 |
-40, -50, -65 |
-40, -50, -65 |
-40, -50, -65 |
-40, -50, -65 |
-40, -50, -65 |
| Cooling time (min) |
40, 50, 60 |
40, 50, 60 |
40, 50, 60 |
40, 50, 60 |
40, 50, 60 |
40, 50, 60 |
| Air circulation system |
Mechanical convection system |
| Cooling system |
Imported compressor, fin evaporator, gas condenser |
| Heating system |
Fin heating system |
| Humidification system |
Steam Generator |
| Humidification water supply |
Reservoir, Sensor-controller solenoid valve, recovery-recycle system |
| Controller |
Touch panel |
| Electrical power requirements |
3 phase 380V 50/60 Hz |
| Safety device |
Circuit system load protection, compressor load protection, control system load protection, humidifier load protection, overtemperature load protection, fault warning light |
|
By subjecting car engine components to realistic thermal shock testing in our three - zone chamber, manufacturers can identify potential weaknesses and design flaws early in the development process. This allows for timely adjustments to the manufacturing process or product design, resulting in higher - quality components that are more resistant to thermal stress and have a longer lifespan. Components that have passed rigorous thermal shock testing are less likely to fail in the field, reducing the risk of costly breakdowns and recalls.
Early detection of component failures through thermal shock testing can save automotive manufacturers significant costs. By addressing issues before mass production, companies can avoid expensive rework, warranty claims, and customer dissatisfaction. The rapid testing cycle and large chamber capacity also contribute to cost savings by enabling more efficient testing of multiple components or assemblies at once, reducing the overall testing time and resource requirements.
The automotive industry is subject to strict international and national standards regarding the safety and reliability of car engines and components. Our three - zone thermal shock test chamber helps manufacturers ensure that their products meet these standards. By conducting comprehensive thermal shock tests, companies can demonstrate compliance with regulations such as ISO 16750 (Road Vehicles - Environmental Conditions and Testing for Electrical and Electronic Equipment) and other relevant automotive standards, facilitating market access and building trust with customers.
In a highly competitive automotive market, offering reliable and high - performing engine components can give manufacturers a significant competitive edge. By using our custom three - zone thermal shock test chamber to conduct in - depth testing, companies can differentiate their products from competitors and showcase their commitment to quality. Customers are more likely to choose vehicles with components that have been thoroughly tested and proven to withstand extreme thermal conditions, enhancing the brand's reputation and market share.
- Engine Blocks and Cylinder Heads: Test the thermal stability and integrity of engine blocks and cylinder heads under different temperature gradients to ensure they can withstand the high - temperature combustion process and rapid cooling during engine shutdown.
- Turbochargers and Superchargers: Subject these components to extreme temperature cycles to evaluate their performance under high - heat and rapid - temperature - change conditions, which are common during forced induction operation.
- Cooling System Components: Test radiators, coolant pumps, and thermostats to ensure they can function properly in a wide range of temperature conditions, from cold starts to high - load, high - temperature operation.
- Fuel Injection Systems: Evaluate the performance of fuel injectors and fuel rails under different temperature scenarios to ensure accurate fuel delivery and combustion efficiency in various driving conditions.
- Electrical and Electronic Components: Test sensors, actuators, and control modules to ensure their reliability and functionality in the harsh thermal environment of a car engine, where temperature variations can affect their performance.
Our Custom Three - zone Thermal Shock Test Chamber for car engine and components is a state - of - the - art testing solution that combines advanced features, high - precision control, and user - friendly operation. With its ability to simulate complex thermal scenarios, customize test profiles, and accommodate a variety of components, it provides automotive manufacturers with a powerful tool to improve product quality, reduce costs, meet industry standards, and gain a competitive advantage. If you are interested in enhancing the reliability and performance of your car engine components through comprehensive thermal shock testing, please contact us. Our team of experts is ready to assist you in selecting the right chamber configuration and providing you with comprehensive support and service.
