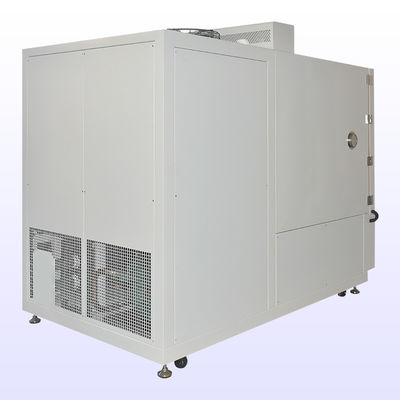

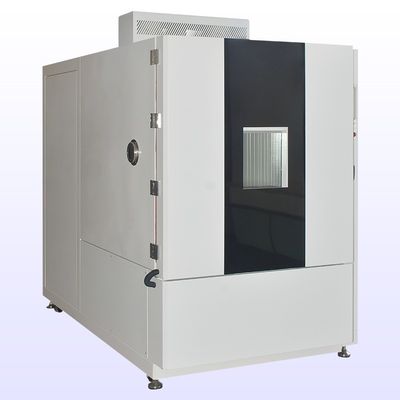

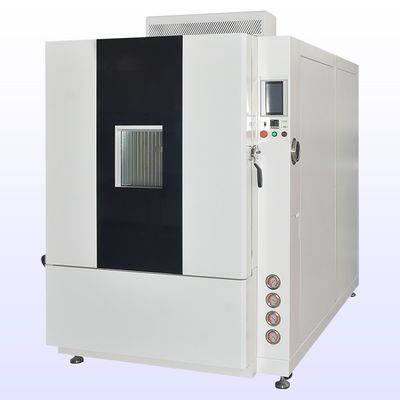

Sensors And Instruments Climate Chamber OEM

1. Product Name and Purpose

2. Product Features

Fast - Change - Rate Temperature Cycling

• High - Speed Temperature Ramping
  • The custom chamber is capable of achieving extremely rapid temperature change rates, typically ranging from 10°C/min to 100°C/min. This high - speed ramping is crucial for accurately replicating the real - world scenarios where sensors and instruments experience sudden temperature fluctuations. For example, in a chemical processing plant, sensors may be exposed to rapid temperature changes during a reaction process, or in an outdoor weather monitoring station, instruments may face sudden temperature drops due to passing weather fronts. The ability to precisely control the rate of temperature change allows for reliable testing of the devices' responses to such thermal transients.
• Wide Temperature Range
  • The temperature range of the custom chamber spans from - 60°C to + 150°C. This wide range covers the extreme temperature conditions that sensors and instruments may encounter. In cryogenic applications, sensors need to operate at very low temperatures, while in high - temperature industrial processes or in environments close to heat sources, instruments must withstand elevated temperatures. The chamber's ability to reach these extreme temperatures enables comprehensive testing of the devices' performance across the entire spectrum of relevant thermal conditions.

Humidity Simulation

• Precise Humidity Control
  • Humidity is a significant factor that can affect the performance of sensors and instruments. The custom chamber can precisely control humidity levels, typically ranging from 10% to 98% relative humidity. This allows for the simulation of different environmental humidity conditions, such as the high humidity in tropical regions or the low humidity in arid deserts. The humidity control accuracy is within ±2% relative humidity, ensuring reliable testing of the devices' resistance to moisture - related issues, such as corrosion, condensation, and changes in electrical properties.
• Humidity Cycling Capability
  • The chamber can perform humidity cycling tests, where the humidity level is repeatedly changed to mimic the real - world variations in humidity that sensors and instruments may experience. For example, in a food processing facility, humidity levels can fluctuate throughout the day, affecting the performance of moisture sensors. These humidity cycling tests help to identify potential weaknesses in the devices' seals, insulation materials, and sensor components.

Vibration and Shock Simulation

• Multi - Axis Vibration Testing
  • Sensors and instruments are often subjected to vibrations during transportation, installation, and operation. The custom test chamber is equipped with advanced vibration systems that can simulate multi - axis vibrations with adjustable frequencies, amplitudes, and durations. This allows for the testing of the devices' ability to withstand the mechanical stresses associated with vibrations, such as those caused by machinery, vehicles, or earthquakes.
• Shock Impact Testing
  • In addition to continuous vibrations, sensors and instruments may also experience sudden shock impacts. The chamber can simulate shock impacts with adjustable levels of severity, enabling the evaluation of the devices' structural integrity and their ability to protect sensitive components under extreme conditions. For example, in a military or aerospace application, instruments may be subjected to high - impact shocks during takeoff, landing, or in combat situations.

Electromagnetic Compatibility (EMC) Testing

• EMC Simulation
  • In modern environments, sensors and instruments are surrounded by various sources of electromagnetic interference (EMI). The custom chamber can simulate different EMC scenarios, including electromagnetic radiation, electrostatic discharge (ESD), and electrical fast transients (EFT). By subjecting the devices to these EMC tests, manufacturers can ensure that they meet the relevant EMC standards and are immune to electromagnetic interference, which can cause measurement errors, signal disruptions, or even device failures.
• EMC Monitoring
  • The chamber is equipped with EMC monitoring systems that can measure the electromagnetic emissions and susceptibility of sensors and instruments during the testing process. This allows for the identification of potential EMC issues and the implementation of appropriate countermeasures, such as shielding, filtering, or grounding.

Customizable Test Profiles

• Programmable Environmental Cycles
  • Operators have the flexibility to create highly customizable test profiles that simulate complex and realistic environmental transition scenarios. These profiles can include combinations of temperature changes, humidity variations, vibration/shock events, and EMC conditions, all programmed to occur in a specific sequence and duration. For example, a test profile can be designed to mimic the environmental conditions that a sensor experiences during a day in a particular industrial setting, including exposure to different temperature and humidity levels, vibrations from machinery, and EMC disturbances from nearby electrical equipment.
• Device - Specific Customization
  • The chamber can be customized to accommodate the specific dimensions and requirements of different sensors and instruments. Specialized fixtures and holders can be designed to securely hold the devices in place during testing, ensuring proper alignment and exposure to the environmental conditions. Additionally, the chamber can be equipped with custom - designed interfaces to connect the sensors and instruments and monitor their performance parameters in real - time during the environmental cycling tests.

Safety Features

• Over - Temperature and Over - Humidity Protection
  • The custom chamber is equipped with advanced over - temperature and over - humidity protection systems. In the event of a malfunction or an unexpected increase in temperature or humidity, the system automatically shuts down the heating, cooling, or humidification/dehumidification elements to prevent damage to the sensors and instruments and the chamber itself. This feature ensures the safety of the testing process and protects valuable devices from being destroyed due to overheating or excessive moisture.
• Electrical and Mechanical Safety Measures
  • Given the electrical and mechanical nature of sensors and instruments, the chamber is designed with strict electrical and mechanical safety measures. This includes proper grounding, over - current protection, short - circuit protection, and mechanical safeguards to prevent accidents during the loading and unloading of devices. The chamber's structure is also designed to withstand the vibrations and shocks generated during testing, ensuring the safety of the operators and the integrity of the testing equipment.

User - Friendly Operation and Monitoring

• Intuitive Control Interface
  • The custom chamber is equipped with an intuitive control interface that simplifies the operation process. The interface allows operators to easily set and adjust test parameters, such as temperature change rates, humidity levels, vibration frequencies, EMC test levels, and test durations. It also provides a clear display of the current test status, including the actual temperature, humidity, vibration levels, EMC parameters, and elapsed test time. The user - friendly design ensures that even operators with limited technical expertise can efficiently conduct tests on sensors and instruments.
• Remote Monitoring and Control
  • Many models of the custom chamber offer remote monitoring and control capabilities. This feature is highly beneficial for manufacturers, researchers, and quality control teams, as it allows them to monitor the test progress and adjust the test parameters from a remote location, such as an office or a laboratory. This is especially useful for long - term tests or when multiple tests are being conducted simultaneously. Remote monitoring and control enable timely intervention in case of any issues, ensuring the smooth and efficient operation of the testing process.

3. Specific Parameters

• Temperature Change Rate: 10°C/min - 100°C/min
• Temperature Range: - 60°C to + 150°C
• Temperature Accuracy: ±0.2°C
• Humidity Range: 10% - 98% relative humidity
• Humidity Accuracy: ±2% relative humidity
• Vibration Frequency Range: 1 Hz - 2000 Hz
• Vibration Amplitude Range: 0.1 mm - 10 mm
• Shock Impact Level: Adjustable up to specified maximum levels
• EMC Simulation: Electromagnetic radiation (up to specified levels), ESD (up to specified voltages), EFT (up to specified amplitudes and frequencies)
• Test Volume: Varies by model, typically from 0.1 m³ to 20 m³ (suitable for accommodating different sizes of sensors and instruments)
• Cooling Capacity: Adequate to achieve rapid cooling rates within the specified range
• Heating Capacity: Adequate to achieve rapid heating rates within the specified range
• Humidification/Dehumidification Capacity: Sufficient to maintain and change humidity levels as required
• Electrical Safety Features: Over - current protection, short - circuit protection, proper grounding
• Mechanical Safety Features: Secure device holding, overload protection, structural integrity
• Power Supply: Compatible with standard electrical supply systems

4. Product Functions

• Performance Evaluation
  • By subjecting sensors and instruments to fast - change - rate environmental cycles, the custom chamber helps evaluate their performance under dynamic conditions. This includes assessing parameters such as measurement accuracy, response time, sensitivity, and stability. For example, rapid temperature changes can affect the calibration of temperature sensors, while humidity can impact the performance of moisture - sensitive sensors. By measuring these parameters, manufacturers can understand how the devices' performance is impacted and make improvements to enhance their overall functionality.
• Reliability Testing
  • The custom chamber can be used to test the reliability of sensors and instruments under fast - change - rate environmental conditions. Repeated exposure to extreme temperature variations, humidity changes, vibrations, shocks, and EMC events can cause stress on the devices' internal structures and components, leading to potential failures over time. By subjecting the devices to multiple cycles of these environmental conditions, manufacturers can identify potential weak points and improve the devices' durability. This helps to ensure that the devices can withstand the rigors of long - term use in different environments without malfunctioning.
• Durability Assessment
  • Effective durability assessment is crucial for sensors and instruments, as they need to have a long service life. The custom chamber allows manufacturers to simulate the cumulative effects of environmental stress over an extended period. By subjecting the devices to accelerated aging tests, where the environmental conditions are more severe than normal operating conditions, manufacturers can estimate the devices' lifespan and determine their fitness for long - term use.
• Compatibility Testing
  • In many applications, sensors and instruments need to work in harmony with other devices and systems. The custom chamber can be used to conduct compatibility tests between different sensors, instruments, and other related components. By subjecting these devices to the same environmental cycles, manufacturers can ensure that they can maintain stable operation and proper functionality when exposed to different environmental conditions. This helps to prevent compatibility issues that could lead to inaccurate measurements or system failures.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The manufacturing of the custom fast - change - rate environmental test chamber follows strict quality control procedures. Each component, from the chamber's body and insulation materials to the temperature sensors, humidity sensors, vibration systems, EMC monitoring systems, and control electronics, is sourced from reliable suppliers and undergoes thorough inspection and testing.
  • The assembly process is carried out by highly skilled technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance. This includes testing the temperature control system, humidity control system, vibration and shock simulation systems, EMC simulation systems, and the functionality of all safety features.
• Quality Certification and Validation
  • Our custom fast - change - rate environmental test chamber has obtained relevant quality certifications, such as ISO standards for environmental testing equipment and specific industry standards related to sensors and instruments. It has also been validated by independent testing laboratories to ensure that it meets the strict requirements of the industry and provides accurate and reliable test results.
  • We continuously update and improve our product based on the latest technological advancements and customer feedback. This ensures that our custom fast - change - rate environmental test chamber remains at the forefront of sensors and instruments testing technology.

6. Application Areas and Success Stories

• Temperature Sensor Development
  • A sensor manufacturer was developing a new high - precision temperature sensor for industrial applications. The sensor was tested in the custom fast - change - rate environmental test chamber to evaluate its performance under rapid temperature changes and humidity variations. The testing revealed that the sensor's accuracy decreased significantly at high humidity levels and during rapid temperature ramps. Based on this result, the manufacturer improved the sensor's moisture resistance and optimized its calibration algorithm. The new sensor passed all subsequent tests and provided accurate temperature measurements, even in challenging environmental conditions.
• Spectrometer Optimization
  • A research institution was using a spectrometer for chemical analysis. The spectrometer was tested in the custom chamber to simulate the environmental conditions it would encounter during fieldwork. The testing showed that the spectrometer's optical components were affected by vibrations and EMC interference, leading to inaccurate spectral measurements. The institution worked with the spectrometer manufacturer to improve the device's mechanical stability and EMC protection. The optimized spectrometer passed all the tests and provided reliable spectral data, even in noisy and vibrating environments.
• Sensor Network Compatibility Testing
  • An industrial plant was implementing a new sensor network for process monitoring. The sensors and the network infrastructure were tested in the custom fast - change - rate environmental test chamber to evaluate their compatibility under different environmental conditions. The testing identified some communication issues and signal degradation between the sensors and the network nodes at high temperatures and during EMC events. The plant's engineering team worked with the device manufacturers to adjust the communication protocols and improve the shielding of the network cables. The integrated sensor network passed all the tests and provided reliable data for process control, even in harsh industrial environments.

7. Service and Support

• Pre - Sales Technical Consultation
  • Our team of sensors and instruments testing experts provides in - depth technical consultations to help manufacturers, researchers, and end - users understand the capabilities and suitability of the custom fast - change - rate environmental test chamber for their specific testing needs. We offer demonstrations and training sessions to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate chamber model and test parameters based on the customer's requirements.
• After - Sales Service and Maintenance
  • We offer comprehensive after - sales service, including on - site installation and commissioning. Our team of experienced technicians is available for regular maintenance, calibration, and emergency repairs. We provide genuine spare parts and timely upgrades to ensure the long - term performance and reliability of the chamber.
  • We also offer service contracts that include preventive maintenance and priority technical support. Our goal is to ensure that our customers' custom fast - change - rate environmental test chamber is always in optimal working condition, providing accurate and reliable test results.
• Training and Technical Support
  • We conduct training programs for new users to ensure that they can effectively operate the custom fast - change - rate environmental test chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization.
  • We also provide software updates and support for the control and monitoring systems of the chamber to keep it up - to - date with the latest features and technologies.
