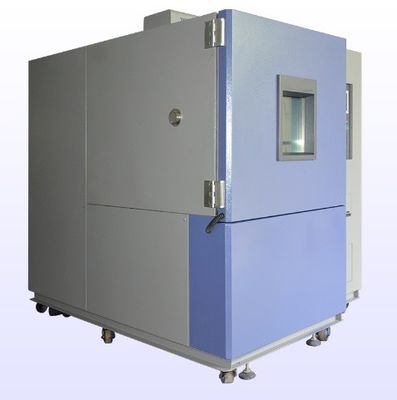

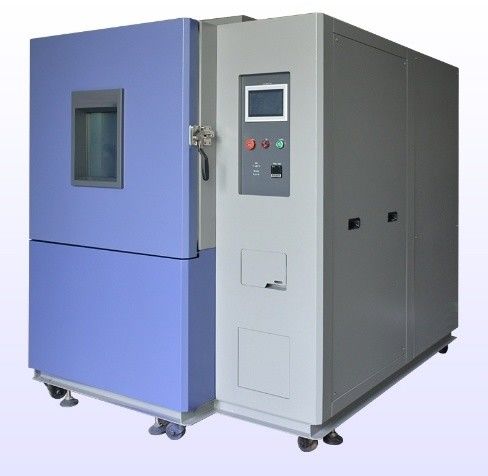

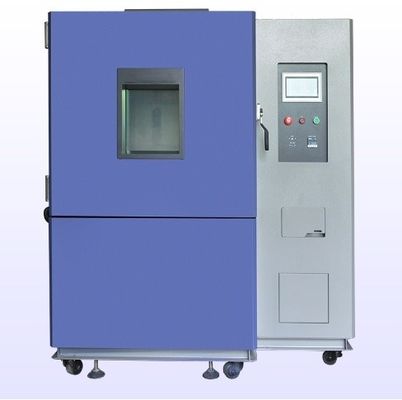

Large Power Climate Control Chamber For Rail Vehicle Components

1. Product Name and Purpose

2. Product Features

Fast - Change - Rate Temperature Cycling

• High - Speed Temperature Ramping
  • The custom chamber is capable of achieving extremely rapid temperature change rates, typically ranging from 10°C/min to 80°C/min. This high - speed ramping is essential for accurately simulating the real - world scenarios where rail vehicle components experience sudden temperature fluctuations. For example, when a train enters a tunnel after traveling in the open air, or when it moves from a warm region to a cold one, the components can be exposed to significant temperature changes in a short period. The ability to precisely control the rate of temperature change allows for reliable testing of the components' responses to such thermal transients.
• Wide Temperature Range
  • The temperature range of the custom chamber spans from - 70°C to + 150°C. This wide range covers the extreme temperature conditions that rail vehicle components may encounter. In cold climates, components may be exposed to sub - zero temperatures during winter months, while in hot regions or during periods of high - power operation, they can reach relatively high temperatures. The chamber's ability to reach these extreme temperatures enables comprehensive testing of the components' performance across the entire spectrum of relevant thermal conditions.

Humidity Simulation

• Precise Humidity Control
  • In addition to temperature changes, humidity is a significant factor affecting rail vehicle components. The custom chamber can precisely control humidity levels, typically ranging from 10% to 95% relative humidity. This allows for the simulation of different environmental humidity conditions, such as the high humidity in coastal areas or the dry conditions in arid regions. The humidity control accuracy is within ±2% relative humidity, ensuring reliable testing of the components' resistance to moisture - related issues, such as corrosion, electrical short - circuits, and material degradation.
• Humidity Cycling Capability
  • The chamber can perform humidity cycling tests, where the humidity level is repeatedly changed to mimic the real - world variations in humidity that rail vehicle components may experience. For example, when a train moves through different climate zones or when condensation forms and evaporates on the components during operation. These humidity cycling tests help to identify potential weaknesses in the components' seals, insulation materials, and electrical connections.

Vibration and Shock Simulation

• Multi - Axis Vibration Testing
  • Rail vehicle components are also subjected to continuous vibrations and occasional shocks during operation. The custom test chamber is equipped with advanced vibration systems that can simulate multi - axis vibrations with adjustable frequencies, amplitudes, and durations. This allows for the testing of the components' ability to withstand the mechanical stresses associated with rail travel, such as those caused by track irregularities, train acceleration, and braking.
• Shock Impact Testing
  • In addition to continuous vibrations, the chamber can also simulate sudden shock impacts, such as those that may occur during a collision or a hard braking event. The shock testing capabilities are adjustable to different levels of severity, enabling the evaluation of the components' structural integrity and their ability to protect sensitive electronics and mechanical parts under extreme conditions.

Customizable Test Profiles

• Programmable Environmental Cycles
  • Operators have the flexibility to create highly customizable test profiles that simulate complex and realistic environmental transition scenarios. These profiles can include combinations of temperature changes, humidity variations, and vibration/shock events, all programmed to occur in a specific sequence and duration. For example, a test profile can be designed to mimic the environmental conditions that a rail vehicle component experiences during a long - distance journey, including exposure to different climates, passing through tunnels, and encountering various track conditions.
• Component - Specific Customization
  • The chamber can be customized to accommodate the specific dimensions and requirements of different rail vehicle components. Specialized fixtures and holders can be designed to securely hold the components in place during testing, ensuring proper alignment and exposure to the environmental conditions. Additionally, the chamber can be equipped with custom - designed monitoring systems to measure key performance parameters of the components, such as electrical conductivity, mechanical stress, and deformation, during the environmental cycling tests.

Safety Features

• Over - Temperature and Over - Humidity Protection
  • The custom chamber is equipped with advanced over - temperature and over - humidity protection systems. In the event of a malfunction or an unexpected increase in temperature or humidity, the system automatically shuts down the heating, cooling, or humidification/dehumidification elements to prevent damage to the rail vehicle components and the chamber itself. This feature ensures the safety of the testing process and protects valuable components from being destroyed due to overheating or excessive moisture.
• Electrical and Mechanical Safety Measures
  • Given the electrical and mechanical nature of rail vehicle components, the chamber is designed with strict electrical and mechanical safety measures. This includes proper grounding, over - current protection, short - circuit protection, and mechanical safeguards to prevent accidents during the loading and unloading of components. The chamber's structure is also designed to withstand the vibrations and shocks generated during testing, ensuring the safety of the operators and the integrity of the testing equipment.

User - Friendly Operation and Monitoring

• Intuitive Control Interface
  • The custom chamber is equipped with an intuitive control interface that simplifies the operation process. The interface allows operators to easily set and adjust test parameters, such as temperature change rates, humidity levels, vibration frequencies, and test durations. It also provides a clear display of the current test status, including the actual temperature, humidity, vibration levels, and elapsed test time. The user - friendly design ensures that even operators with limited technical expertise can efficiently conduct tests on rail vehicle components.
• Remote Monitoring and Control
  • Many models of the custom chamber offer remote monitoring and control capabilities. This feature is highly beneficial for rail vehicle manufacturers and maintenance teams, as it allows them to monitor the test progress and adjust the test parameters from a remote location, such as an office or a maintenance depot. This is especially useful for long - term tests or when multiple tests are being conducted simultaneously. Remote monitoring and control enable timely intervention in case of any issues, ensuring the smooth and efficient operation of the testing process.

3. Specific Parameters

• Model	FC-150	FC-270	FC-456	FC-1000
  Inside dimension(W x D x H) mm	50 x 75 x 60	60 x 90 x 50	80 x 95 x 60	100 x 100 x 100
  Outside dimension(W x D x H) mm	105 x 181 x 140	115 x 200 x 165	135 x 210 x 170	154x 202 x 176
  Internal material	#304 Stainless Steel
  External material	Powder coated #304 Stainless Steel
  Temperature range	+ 150℃~ - 70 ℃
  Temperature resolution ℃	0.01
  Temperature stability ℃	±0.3
  High temperature ℃	100	100	100	100
  Heating time (min)	20	30	30	30
  Low temperature	0, -40, -70	0, -40, -70	0, -40, -70	0, -40, -70
  Cooling time (min)	20, 50, 70	20, 50, 70	20, 50, 70	20, 50, 70
  Air circulation system	Mechanical convection system
  Cooling system	Imported compressor, fin evaporator, gas condenser
  Heating system	Sus304 Stainless steel High-speed heater
  Controller	Touch panel
  Electrical power requirements	3 phase 380V ±10% 50/60Hz
  Safety device	Glass window, test hole 50 mm, action indicator lamp, box lighting, interlayer rack* 2 pcs, circuit system load protection, compressor load protection, control system load protection, heating system load protection, overtemperature load protection, fault indicator lamp

4. Product Functions

• Performance Evaluation
  • By subjecting rail vehicle components to fast - change - rate environmental cycles, the custom chamber helps evaluate their performance under dynamic conditions. This includes assessing parameters such as electrical performance, mechanical strength, and material integrity. For example, rapid temperature changes can affect the electrical conductivity of wires and the mechanical properties of metals, while humidity can impact the insulation performance of electrical components. By measuring these parameters, manufacturers can understand how the components' performance is impacted and make improvements to enhance their overall functionality.
• Reliability Testing
  • The custom chamber can be used to test the reliability of rail vehicle components under fast - change - rate environmental conditions. Repeated exposure to extreme temperature variations, humidity changes, and mechanical vibrations can cause stress on the components' internal structures, leading to potential failures over time. By subjecting the components to multiple cycles of these environmental conditions, manufacturers can identify potential weak points and improve the components' durability. This helps to ensure that the components can withstand the rigors of long - term use in rail vehicles without malfunctioning.
• Durability Assessment
  • Effective durability assessment is crucial for rail vehicle components, as they need to have a long service life. The custom chamber allows manufacturers to simulate the cumulative effects of environmental stress over an extended period. By subjecting the components to accelerated aging tests, where the environmental conditions are more severe than normal operating conditions, manufacturers can estimate the components' lifespan and determine their fitness for long - term use in rail vehicles.
• Compatibility Testing
  • In a rail vehicle, various components need to work together harmoniously. The custom chamber can be used to conduct compatibility tests between different components, such as the interaction between the traction motor and the power supply system or the compatibility of the braking system with the vehicle's control electronics. By subjecting these components to the same environmental cycles, manufacturers can ensure that they can maintain stable operation and proper functionality when exposed to different environmental conditions.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The manufacturing of the custom fast - change - rate environmental test chamber follows strict quality control procedures. Each component, from the chamber's body and insulation materials to the temperature sensors, humidity sensors, vibration systems, and control electronics, is sourced from reliable suppliers and undergoes thorough inspection and testing.
  • The assembly process is carried out by highly skilled technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance. This includes testing the temperature control system, humidity control system, vibration and shock simulation systems, and the functionality of all safety features.
• Quality Certification and Validation
  • Our custom fast - change - rate environmental test chamber has obtained relevant quality certifications, such as ISO standards for environmental testing equipment and specific rail industry standards. It has also been validated by independent testing laboratories to ensure that it meets the strict requirements of the rail industry and provides accurate and reliable test results.
  • We continuously update and improve our product based on the latest technological advancements and customer feedback. This ensures that our custom fast - change - rate environmental test chamber remains at the forefront of rail vehicle component testing technology.

6. Application Areas and Success Stories

• Traction Motor Development
  • A rail vehicle manufacturer was developing a new traction motor for high - speed trains. The motor was tested in the custom fast - change - rate environmental test chamber to evaluate its performance under rapid temperature changes, humidity variations, and vibrations. The testing revealed that the motor's insulation was prone to breakdown at high humidity levels and during rapid temperature changes. Based on this result, the manufacturer improved the insulation materials and the design of the motor's housing. The new traction motor passed all subsequent tests and provided reliable performance, even under the harsh environmental conditions of high - speed rail travel.
• Braking System Optimization
  • A braking system supplier was looking to optimize the performance and durability of its braking components. The components were tested in the custom chamber to simulate the environmental conditions they would experience during rail vehicle operation. The testing showed that the braking pads were wearing out quickly due to the combined effects of temperature changes and vibrations. The supplier then improved the material composition of the braking pads and enhanced their heat dissipation capabilities. The updated braking system passed all the tests and provided better braking performance and longer service life.
• Interior Fixture Compatibility Testing
  • A rail vehicle interior design company was integrating new interior fixtures, such as seats and luggage racks, into a new train model. The fixtures were tested in the custom chamber to evaluate their compatibility with the existing vehicle components under fast - change - rate environmental conditions. The testing identified some issues with the electrical connections of the seats and the structural integrity of the luggage racks under vibrations. The company worked with the component manufacturers to make the necessary adjustments. The integrated interior fixtures passed all the tests and provided a comfortable and safe environment for passengers.

7. Service and Support

• Pre - Sales Technical Consultation
  • Our team of rail vehicle component testing experts provides in - depth technical consultations to help rail vehicle manufacturers, suppliers, and maintenance teams understand the capabilities and suitability of the custom fast - change - rate environmental test chamber for their specific testing needs. We offer demonstrations and training sessions to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate chamber model and test parameters based on the customer's requirements.
• After - Sales Service and Maintenance
  • We offer comprehensive after - sales service, including on - site installation and commissioning. Our team of experienced technicians is available for regular maintenance, calibration, and emergency repairs. We provide genuine spare parts and timely upgrades to ensure the long - term performance and reliability of the chamber.
  • We also offer service contracts that include preventive maintenance and priority technical support. Our goal is to ensure that our customers' custom fast - change - rate environmental test chamber is always in optimal working condition, providing accurate and reliable test results.
• Training and Technical Support
  • We conduct training programs for new users to ensure that they can effectively operate the custom fast - change - rate environmental test chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization.
  • We also provide software updates and support for the control and monitoring systems of the chamber to keep it up - to - date with the latest features and technologies.
