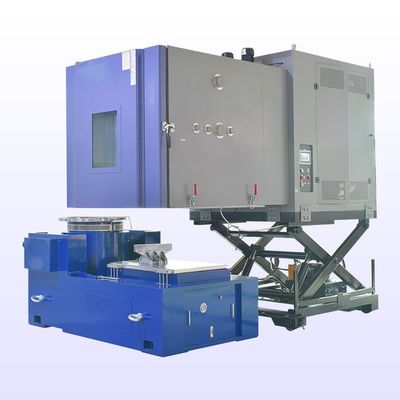

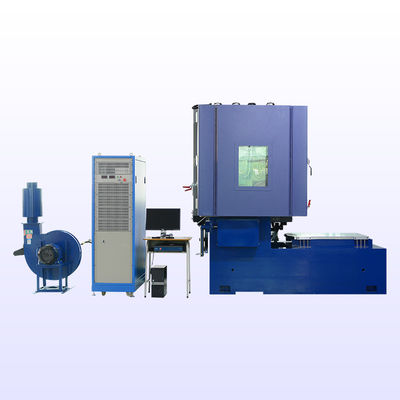

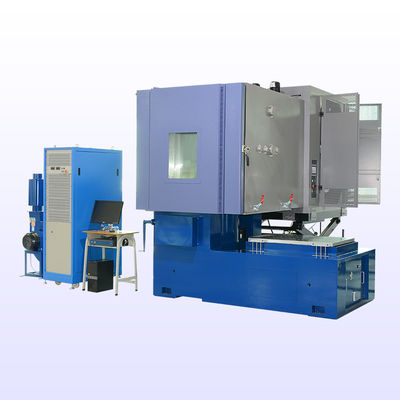

X Y And Z Axes Vibration Test Machine Combined Environmental Test Chambers For Automotive Electronics

In the automotive industry, the reliability and performance of automotive electronics are of utmost importance. The X, Y, and Z axes vibration test machine combined environmental test chamber is a sophisticated and essential piece of equipment designed specifically for automotive electronics testing. This integrated system allows manufacturers to subject automotive electronic components and systems to a comprehensive range of stressors, replicating the harsh and complex conditions they will encounter in real-world driving scenarios.

This specialized test system is tailored to meet the unique requirements of automotive electronics testing. By combining the capabilities of multi-axis vibration testing with environmental factors such as temperature and humidity, it enables a more realistic and thorough evaluation of automotive electronics.

The primary purpose is to assess how these components and systems perform and endure under the combined effects of mechanical vibrations in three axes (X, Y, and Z) and varying environmental conditions. This helps automotive manufacturers identify potential weaknesses in their designs, improve product quality, and ensure the long-term reliability and safety of automotive electronics.

• Three-Axis Vibration Capability

  The vibration test machine is capable of generating vibrations in the X, Y, and Z axes simultaneously or independently. This multi-axis functionality is crucial as automotive electronics are exposed to complex vibration patterns during vehicle operation.

  The vibration frequencies can be precisely controlled, typically ranging from 1 Hz to 2000 Hz. This wide range allows for the simulation of different types of vibrations, from the low-frequency rumbling of the engine at idle to the high-frequency vibrations caused by engine combustion or road impacts. The vibration amplitudes are also adjustable, with a range of 0.1 mm to 100 mm (peak-to-peak), enabling the reproduction of various levels of vibration intensity.

• Customizable Vibration Profiles

  Operators have the flexibility to create custom vibration profiles based on specific test requirements. These profiles can include continuous vibrations, intermittent shocks, or complex sequences that mimic the actual vibrations experienced by automotive electronics during different driving scenarios.

• High Payload Capacity

  The vibration test machine is designed to handle a wide range of automotive electronic components and systems, from small sensors and circuit boards to larger control units and infotainment systems. It has a high payload capacity, typically capable of supporting several hundred kilograms, ensuring that even the largest and heaviest automotive electronics can be tested accurately.

• Wide Temperature and Humidity Range

  The environmental test chamber integrated with the vibration test machine can achieve a broad temperature range, usually from -40°C to +85°C. This allows for the simulation of various climate conditions that automotive electronics may encounter, from the freezing cold of arctic regions to the sweltering heat of deserts.

  The humidity control can maintain relative humidity levels from 10% to 95%. This is essential for testing how automotive electronics respond to different moisture levels, as humidity can affect the performance and lifespan of electronic components.

  The temperature and humidity control is highly accurate, with an error margin of within ±0.5°C for temperature and ±3% for humidity. This precision ensures that the test conditions closely replicate the actual environmental conditions, providing reliable and consistent test results.
