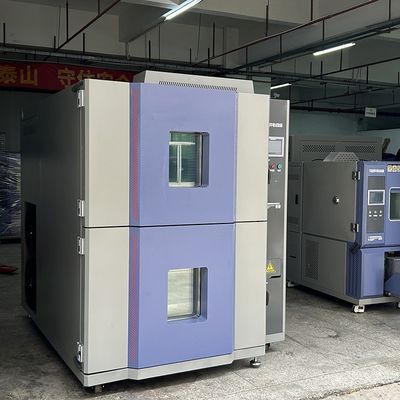

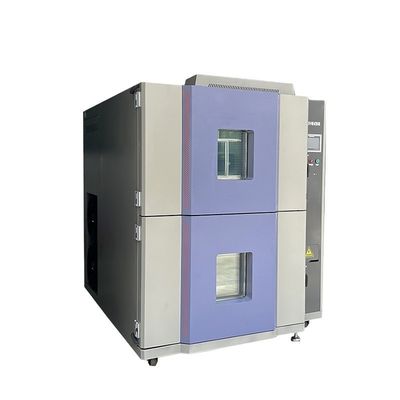

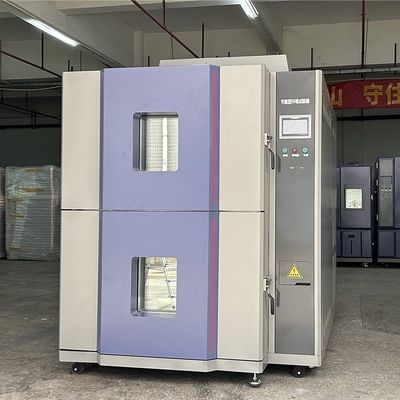

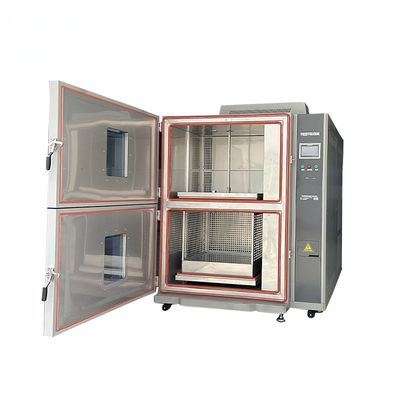

Control Panel Thermal Shock Test Chambers Meets EN 60204-1:2006/AC: 2010 Standards

In the electrical equipment manufacturing industry, compliance with international standards is non-negotiable. The Custom Thermal Shock Chambers, designed to meet the EN 60204-1:2006/AC: 2010 test standards, emerge as a cornerstone in ensuring the safety and durability of electrical equipment.

This bespoke thermal shock chamber is dedicated to subjecting electrical equipment and its components to the comprehensive testing regimen stipulated by the EN 60204-1:2006/AC: 2010 standard. It serves electrical equipment manufacturers, testing laboratories, and research institutions.

The primary objective is to evaluate the ability of equipment such as control panels, motors, transformers, and circuit breakers to withstand rapid and extreme temperature changes. By simulating the thermal shock conditions that these components may encounter during their operational lifespan, manufacturers can identify potential weaknesses, optimize design and manufacturing processes, and enhance the overall quality and reliability of their electrical products.

• Robust and Thermally Efficient Chamber Design: Constructed with heavy-duty materials that can endure the rigors of thermal shock testing. Features high-strength steel walls with advanced thermal insulation, precision sealing mechanism, and viewing window for monitoring.
• Precision Temperature Control System: Capable of achieving a wide temperature range (-50°C to +150°C) with ±0.3°C accuracy. Executes rapid temperature cycling with transition times as short as a few minutes.
• Intuitive Control Panel and Data Acquisition Interface: User-friendly programmable LCD touch screen for setting test parameters, displaying real-time information, and generating comprehensive test reports.
• Safety Features and Alarms: Includes over-temperature and over-current protection, emergency stop buttons, ventilation systems, and alarms for abnormal conditions.

• Temperature Range: -50°C to +150°C with ±0.3°C accuracy
• Thermal Shock Cycles: Programmable from 5 to 500+ cycles with adjustable dwell times
• Testing Volume: Customizable from 1 m³ to 8 m³
• Payload Capacity: Up to several tons
• Data Sampling: Up to 800 Hz frequency with 0.1°C resolution

Accurate simulation of EN 60204-1:2006/AC: 2010 test conditions for evaluating electrical equipment performance under extreme temperature variations. Provides reliable data for quality assurance and product improvement.
