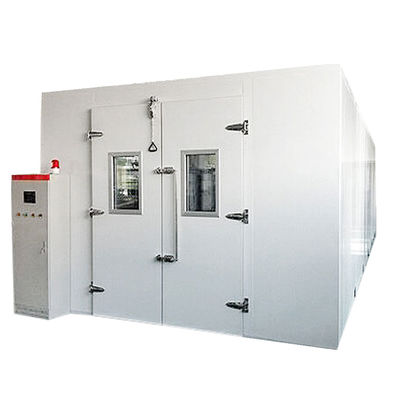

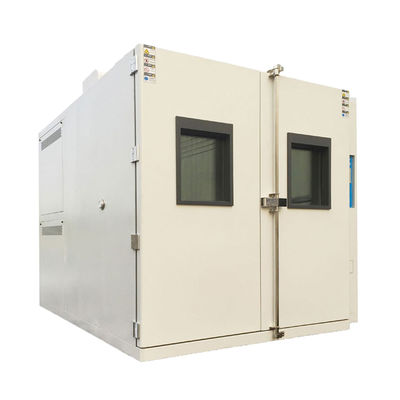

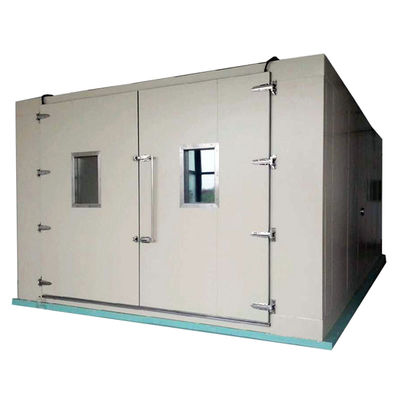

Custom Walk In Test Chambers For NES M0132 Thermal Cycle Test Plastic Parts

1. Product Name and Purpose

2. Product Features

• Tailored Chamber Design for Plastic Part Testing
  • The chamber is constructed with dimensions and an interior layout that are optimized to accommodate the specific size and shape requirements of the “NTC-1-5A” plastic parts. The walls are made of high-strength, thermally stable materials that provide excellent insulation and durability. The door is engineered with a precision sealing mechanism and a large viewing window, allowing operators to closely monitor the testing process without interfering with the internal environment. The interior is equipped with adjustable racks and fixtures to ensure proper positioning and uniform exposure of the plastic parts to the thermal cycling conditions.
• Precision Temperature Control System
  • Temperature Cycling Capability: The chamber can achieve a wide temperature range, typically from -40°C to +120°C, with an accuracy of ±0.3°C. It is equipped with a high-performance refrigeration unit and powerful heating elements, coordinated by a sophisticated control algorithm and multiple temperature sensors. This enables the chamber to precisely and rapidly cycle between the specified low and high temperatures, replicating the harsh thermal environments that plastic parts may experience in real-world applications. For example, automotive plastic components may face extreme cold in winter and intense heat in summer or near engine compartments.
• Intuitive Control Panel and Data Acquisition Interface
  • The control panel is designed for user-friendliness and ease of operation. Operators can easily set and adjust parameters such as temperature limits, cycling times, and ramp rates. The panel provides real-time displays of the current temperature, cycling status, and any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system that records all relevant test data. This includes temperature histories, cycling durations, and any observable changes in the physical or mechanical properties of the plastic parts. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats, facilitating easy documentation and sharing of results.
• Safety Features and Alarms
  • To ensure the safety of operators and the integrity of the testing process, the chamber is equipped with a range of safety features. These include over-temperature and over-current protection, emergency stop buttons, and alarms for abnormal temperature fluctuations, equipment malfunctions, or any other safety-related issues. The chamber is also designed with proper ventilation and exhaust systems to handle any potentially harmful gases or vapors that may be released from the plastic parts during the thermal cycling process.

3. Specific Parameters

• Temperature Range and Accuracy
  • The -40°C to +120°C temperature range with ±0.3°C accuracy provides a comprehensive and precise testing environment. This wide range allows for the evaluation of plastic parts' performance under both extremely cold and hot conditions. Different plastic materials have varying glass transition temperatures and thermal expansion coefficients, and this accurate temperature control ensures that the test conditions are precisely maintained, providing reliable and repeatable results.
• Thermal Cycling Parameters
  • The chamber can be programmed to perform a specific number of thermal cycles, typically ranging from 100 to 1000 or more, depending on the requirements of the NES M0132 standard and the nature of the plastic parts. The cycling time, including the time spent at each temperature extreme and the ramp-up and ramp-down rates, can also be adjusted. For instance, a rapid temperature change rate may subject the plastic parts to more severe stress, simulating sudden environmental changes or rapid heating and cooling processes in manufacturing.
• Testing Volume and Payload Capacity
  • The chamber offers a customizable testing volume, usually ranging from 3 m³ to 15 m³, to accommodate a significant quantity of “NTC-1-5A” plastic parts. The payload capacity is designed to handle a substantial amount of parts, with a maximum capacity of up to several tons, enabling efficient testing of multiple batches or large assemblies.
• Data Sampling Frequency and Resolution
  • The data acquisition system samples data at a frequency of up to 500 Hz. The temperature data has a resolution of 0.1°C. This high-resolution and frequent sampling allow for the detection of even the slightest temperature changes and trends, providing valuable insights into the behavior of the plastic parts during thermal cycling. The data can be used to identify potential failure points and understand the mechanisms of material degradation.

4. Product Functions

• Accurate Simulation of Thermal Cycling Conditions
  • The chamber replicates the thermal cycling conditions that the “NTC-1-5A” plastic parts may face in their actual usage. This includes both slow and rapid temperature changes, as well as extended exposure to extreme temperatures. By subjecting the plastic parts to these realistic conditions, manufacturers can ensure that they will perform reliably and maintain their structural integrity and functionality over time.
• Product Design Optimization and Quality Control
  • Through a series of tests on different plastic part prototypes, the data obtained from the chamber can be used to optimize product designs. Engineers can analyze the performance of various plastic formulations, additives, and manufacturing techniques under thermal cycling stress and make modifications to enhance the overall durability. The chamber also serves as a vital tool for quality control, ensuring that each production batch of “NTC-1-5A” plastic parts meets the required thermal cycling resistance standards. For example, if a particular plastic part shows signs of cracking after a certain number of cycles, the material composition or manufacturing process can be adjusted to correct the issue.
• Research and Development Support
  • In the field of plastic material research and development, the Custom Walk-In Environmental Test Chambers offer valuable insights. Researchers can use it to study the fundamental properties of new plastic materials and their interactions with thermal cycling. They can explore novel formulations and designs that result in more thermally stable and durable plastic parts. For instance, materials scientists can test the performance of biodegradable plastics or high-performance engineering plastics under thermal cycling conditions, using the chamber to evaluate their potential for use in various industries.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet the NES M0132 standard and other relevant industry regulations. The manufacturing industries have strict requirements regarding the thermal performance of plastic parts, and the test results obtained from the chamber can be used to certify that the parts meet these standards. This is crucial for market acceptance and the assurance of product quality and safety.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Custom Walk-In Environmental Test Chambers for NES M0132 Thermal Cycle Test Plastic Parts, “NTC-1-5A” are manufactured under strict quality control procedures. Each component, from the chamber structure and insulation materials to the temperature control unit and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the NES M0132 standard and other international and national testing standards for plastic parts. We also continuously update and improve our product based on the latest technological advancements and customer feedback from various industries to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Automotive Plastic Component Testing
  • An automotive manufacturer used the chamber to test the “NTC-1-5A” plastic parts used in the interior and exterior of their vehicles. The testing revealed that a particular plastic used for a bumper component had a tendency to warp after a significant number of thermal cycles. By adjusting the plastic formulation and adding reinforcing agents, the manufacturer was able to improve the part's resistance to thermal cycling and enhance its overall durability and appearance.
• Aerospace Plastic Part Evaluation
  • In the aerospace industry, a company tested the thermal cycling performance of plastic parts used in aircraft interiors. The chamber was used to subject the parts to extreme temperature changes, simulating the conditions during flight and ground operations. The results showed that a specific plastic material used for a control panel had poor adhesion between layers after thermal cycling. By modifying the manufacturing process and using a different adhesive, the company was able to improve the part's reliability and safety.
• Consumer Goods Plastic Product Quality Control
  • A consumer goods manufacturer used the chamber to perform quality control tests on a new line of plastic products. The “NTC-1-5A” parts were tested for thermal cycling resistance to ensure that they could withstand the temperature changes that occur during normal use and storage. Any parts that failed the test were redesigned or the manufacturing process was adjusted, resulting in a higher quality and more reliable product line.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific testing needs. We offer demonstrations and training, tailored to the relevant industry, to familiarize their engineers and technicians with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the “NTC-1-5A” plastic parts to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for NES M0132 thermal cycle testing of “NTC-1-5A” plastic parts.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Custom Walk-In Environmental Test Chambers and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with NES M0132 and other industry testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
