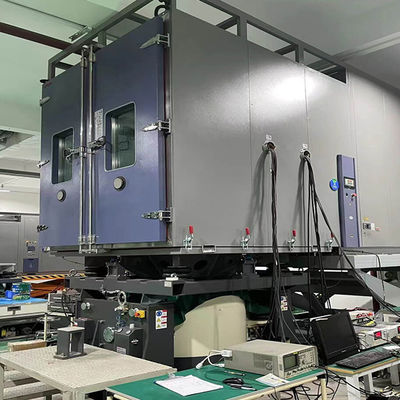

Pharmaceutical Vibration Environmental Test Chambers Energy Saving For Cold Storage

1. Product Name and Purpose

2. Product Features

• Efficient Insulation and Structural Design
  • The chamber is constructed with high-quality insulation materials that minimize heat transfer and maintain a stable internal environment. The double-wall structure, made of durable stainless steel or other corrosion-resistant alloys, provides excellent thermal insulation and structural integrity. The interior is designed to be smooth and easy to clean, ensuring a contamination-free testing space. The door is equipped with a reliable sealing mechanism and a viewing window, allowing operators to monitor the test process without disturbing the internal conditions. The overall design is optimized to reduce heat loss and energy consumption, making it an environmentally friendly choice.
• Precision Temperature and Humidity Control System
  • At the heart of the chamber lies a sophisticated temperature and humidity control system. It can achieve a wide temperature range, typically from -20°C to +60°C, with an accuracy of ±0.3°C. The humidity control range extends from 10% to 95% relative humidity, with an accuracy of ±2% RH. The system utilizes energy-efficient refrigeration units, heaters, humidifiers, and dehumidifiers, all coordinated by a precise PID controller. Multiple sensors are strategically placed throughout the chamber to provide real-time feedback, enabling the control system to make rapid and accurate adjustments to maintain the desired environmental conditions. The control system also features energy-saving modes, such as intelligent standby and optimized compressor operation, which significantly reduce power consumption during non-testing periods and idle times.
• Vibration Testing Capability
  • The chamber is equipped with a state-of-the-art vibration testing system. It can generate a wide range of vibration frequencies and amplitudes, simulating the vibrations that occur during transportation by road, rail, air, or sea. The vibration table is designed to provide uniform vibration across the test samples, ensuring accurate and reliable testing. The vibration testing system can be programmed to replicate specific transportation profiles or industry-standard vibration tests, allowing manufacturers to evaluate the effect of vibrations on the integrity of pharmaceutical products and their packaging.
• Intuitive Control Panel and Data Acquisition Interface
  • The equipment is equipped with an intuitive control panel that simplifies the operation and parameter setting. Operators can easily adjust the temperature, humidity, vibration parameters, test durations, and other settings using a user-friendly interface. The control panel also provides real-time displays of the current environmental conditions, vibration status, and any alarms or warnings. The chamber is integrated with a comprehensive data acquisition system. It records all relevant test data, including temperature and humidity histories, vibration profiles, and any observable changes in the test samples. The data can be stored in a built-in memory or exported to external storage devices for further analysis. The system can also generate detailed test reports in various formats, facilitating easy documentation and sharing of results.
• Safety Features and Alarms
  • To ensure the safety of operators and the integrity of the testing process, the chamber is equipped with a range of safety features. These include over-temperature and over-current protection, emergency stop buttons, and alarms for abnormal temperature fluctuations, humidity levels, or vibration patterns. The safety features are designed to prevent damage to the chamber, the test samples, and the surrounding environment, providing peace of mind during the testing operation.

3. Specific Parameters

• Temperature Range and Accuracy
  • With a temperature range of -20°C to +60°C and an accuracy of ±0.3°C, the chamber can subject pharmaceutical products to a wide spectrum of temperatures. This is crucial for testing drugs that may be stored in cold chain conditions or exposed to higher temperatures during transportation or handling. The accurate temperature control ensures that the test conditions are precisely maintained, providing reliable and repeatable results.
• Humidity Range and Accuracy
  • The humidity range of 10% to 95% RH, with an accuracy of ±2% RH, allows for a comprehensive evaluation of the effect of moisture on pharmaceutical products. The ability to precisely control the humidity level is essential for understanding how drugs and their packaging respond to different moisture environments, such as the hygroscopic nature of certain medications or the potential for condensation in cold storage.
• Vibration Parameters
  • The vibration testing system can generate frequencies ranging from 5 Hz to 500 Hz and amplitudes up to 50 mm. These parameters can be adjusted to simulate various transportation conditions, from the gentle vibrations of air travel to the more severe shocks and vibrations of road transportation. The ability to accurately control the vibration characteristics is vital for assessing the durability and integrity of pharmaceutical products and their packaging.
• Testing Volume and Payload Capacity
  • The chamber offers a customizable testing volume, typically ranging from 100L to 500L, depending on the specific model. The payload capacity can handle a significant amount of test samples, with a maximum capacity of up to 200 kg, depending on the size and density of the objects. This allows for efficient testing of a batch of pharmaceutical products or a single, relatively large item.
• Data Sampling Frequency and Resolution
  • The data acquisition system samples data at a frequency of up to 200 Hz, providing a highly detailed record of the temperature, humidity, and vibration changes. The resolution of the temperature data is 0.1°C, the humidity data is 0.1% RH, and the vibration data is 0.1 mm in amplitude and 0.1 Hz in frequency. This high-resolution data is invaluable for identifying even the slightest trends and potential failure points, allowing for a more accurate assessment of product performance.

4. Product Functions

• Accurate Simulation of Environmental and Vibration Conditions
  • The primary function of the chamber is to provide a precise and reliable simulation of the combined temperature, humidity, and vibration conditions that pharmaceutical products may face. By subjecting products to controlled environmental and vibration stresses, it allows manufacturers and researchers to evaluate their performance and durability. This is crucial for ensuring the quality and safety of drugs and vaccines, as any degradation or damage during storage or transportation could have serious consequences for patient health.
• Product Design Optimization and Quality Control
  • Through a series of tests on different pharmaceutical product prototypes, the data obtained from the chamber can be used to optimize product designs and packaging. Engineers can analyze the behavior of various materials and components under different temperature, humidity, and vibration stresses and make modifications to enhance the overall performance and integrity. The chamber also serves as a vital tool for quality control, ensuring that each batch of products meets the required environmental and vibration resistance standards. For example, in the manufacturing of vaccines, testing in the chamber can help ensure the stability of the vaccine under different storage and transportation conditions.
• Research and Development Support
  • In the field of pharmaceutical research and development, the Energy-saving Climate Chamber with Vibration Test offers valuable insights. Researchers can use it to study the fundamental properties of drugs and their interactions with different environmental and vibration factors. They can explore new formulations and packaging materials that are more resistant to temperature, humidity, and vibration extremes. For instance, materials scientists can test the performance of novel drug coatings or container materials under various environmental and vibration conditions, using the chamber to evaluate their effectiveness and paving the way for advancements in pharmaceutical technology.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet industry regulations and international standards. The pharmaceutical industry has strict requirements regarding the stability and integrity of products under different environmental and vibration conditions, and the chamber can be used to perform tests according to relevant standards such as ICH guidelines. The test results can then be used to obtain product certifications and ensure market acceptance.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Energy-saving Climate Chamber with Vibration Test for Pharmaceutical Testing and Cold Storage is manufactured under strict quality control procedures. Each component, from the outer shell and insulation materials to the temperature and humidity control units, vibration testing system, and safety features, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The chamber is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent pharmaceutical testing laboratories. It has been proven to provide accurate and reliable test results, conforming to international and national standards for pharmaceutical environmental and vibration testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the pharmaceutical industry to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Drug Stability Testing
  • A pharmaceutical company used the chamber to test a new oral medication. The drug was subjected to a combination of temperature, humidity, and vibration conditions simulating different storage and transportation scenarios. The testing revealed that the current tablet coating was prone to cracking under high humidity and vibration. By developing a more robust coating formulation, the company was able to improve the drug's stability and shelf life, ensuring its effectiveness when it reaches the patient.
• Vaccine Packaging Evaluation
  • A research institution tested a new vaccine packaging design in the chamber. The vaccine samples were exposed to extreme temperature and vibration conditions to evaluate the integrity of the packaging. The results showed that the seals on the original packaging were not sufficient to prevent moisture ingress during temperature cycling and vibration. By redesigning the seals and using a more moisture-resistant material, the institution was able to enhance the protection of the vaccine, reducing the risk of spoilage and ensuring its potency.
• Cold Chain Logistics Optimization
  • A pharmaceutical distributor used the chamber to test the performance of their cold chain logistics system. The chamber was programmed to simulate the temperature and vibration conditions that occur during the transportation of refrigerated pharmaceutical products. The testing identified areas where the insulation and shock absorption in the shipping containers could be improved. By making these modifications, the distributor was able to reduce the risk of temperature excursions and product damage during transit, ensuring the quality of the pharmaceuticals they deliver.
•

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of pharmaceutical testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the chamber for their specific testing needs. We offer demonstrations and training, tailored to the pharmaceutical industry, to familiarize customers with the operation and functionality of the chamber before purchase. We also assist in selecting the appropriate test parameters and accessories based on the pharmaceutical products or components to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for pharmaceutical temperature, humidity, and vibration testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Energy-saving Climate Chamber with Vibration Test and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with pharmaceutical environmental and vibration testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in testing.
