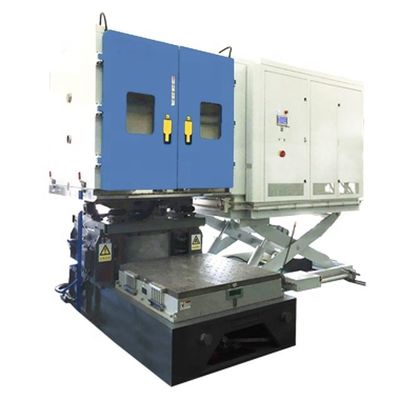

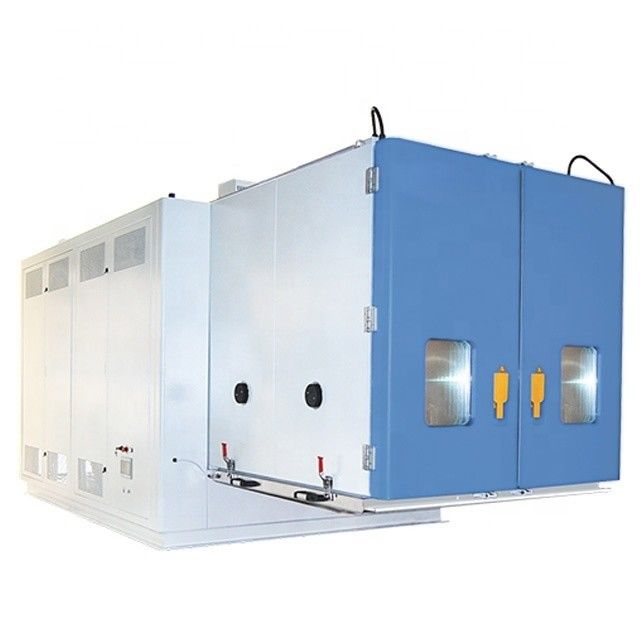

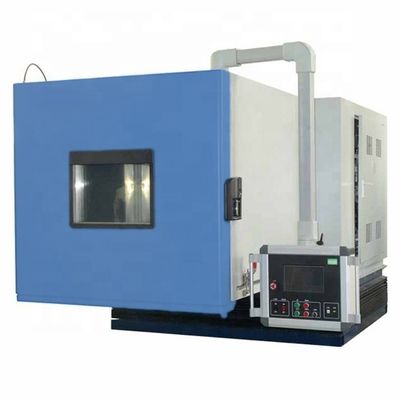

Vibration Climate Test Chamber Meeting ASTM D4169-16 Standard For Electrical Industry

1. Product Name and Purpose

2. Product Features

• Robust and Modular Chamber Construction
  • The climate chamber is built with a heavy-duty steel frame that provides exceptional rigidity and stability. The frame is coated with a corrosion-resistant finish to enhance its longevity. The chamber walls are made of high-quality insulation materials, which minimize heat transfer and maintain precise temperature and humidity levels. The insulation is carefully selected to withstand the rigors of continuous testing and prevent any external factors from interfering with the internal test environment. The chamber is also equipped with a hermetic door seal, ensuring a leak-free enclosure and consistent test conditions. The modular design allows for easy customization and integration of different components, such as the vibration test system.
• Precision Temperature and Humidity Control System
  • The chamber features a highly accurate temperature and humidity control system. It can maintain a wide temperature range, from -40°C to +180°C, with an accuracy of ±0.5°C. The humidity control range extends from 10% to 98% relative humidity, with an accuracy of ±2% RH. The system utilizes advanced refrigeration units, electric heaters, humidifiers, and dehumidifiers to achieve and maintain the desired environmental conditions. Temperature and humidity sensors are strategically placed within the chamber to provide real-time feedback, enabling the control system to make rapid and precise adjustments.
• High-Performance Vibration System
  • The integrated vibration test system is capable of generating a wide range of vibration frequencies and amplitudes. The frequency range can span from 2 Hz to 2000 Hz, allowing for the simulation of various real-world vibration sources, such as machinery operation, transportation vibrations, and seismic activity. The vibration amplitude can be adjusted from a few micrometers to several centimeters, depending on the test requirements. The vibration system is equipped with a rigid vibration table and a high-torque motor, ensuring uniform and stable vibration transmission. It also features advanced control algorithms that enable the creation of complex vibration profiles, including random vibrations, sine waves, and shock pulses.
• Synchronized Control and Data Acquisition
  • The system is equipped with a sophisticated control panel that allows for seamless synchronization of vibration and climatic parameters. Operators can precisely program the sequence and intensity of vibrations, temperature changes, and humidity levels, creating custom test profiles that meet ASTM D4169-16 requirements. The control panel also provides real-time monitoring of all test parameters, including temperature, humidity, vibration frequency, amplitude, and sample status. The data acquisition system records detailed information about the test, such as temperature and humidity profiles, vibration waveforms, and any changes in the physical properties of the electrical sample. The acquired data can be stored in a variety of formats and analyzed using specialized software to generate comprehensive test reports.
• Compliance with ASTM D4169-16 Standard
  • The equipment is specifically calibrated and programmed to perform tests in strict accordance with ASTM D4169-16. It can replicate the various vibration profiles, temperature and humidity cycles, and test durations specified in the standard. This ensures that the test results are valid and comparable, allowing manufacturers to make informed decisions about product design, material selection, and quality control. The chamber also provides a means for documenting compliance with the standard, which is essential for product acceptance in the electrical industry.

3. Specific Parameters

• Vibration Frequency Range
  • As mentioned, the vibration frequency range of 2 Hz to 2000 Hz covers a wide spectrum of vibrations that electrical products may experience. Low-frequency vibrations can affect the stability and alignment of larger components, while high-frequency vibrations can cause fatigue and failure in smaller, more delicate parts. Testing across this frequency range ensures a comprehensive evaluation of a product's performance under different vibration scenarios.
• Vibration Amplitude Range
  • The vibration amplitude can be adjusted from a few micrometers to several centimeters. This flexibility allows for the simulation of both mild and severe vibration conditions. For example, a small electronic circuit board may require a relatively small vibration amplitude to test its resistance to the vibrations of a delivery van, while a large industrial electrical enclosure may need to be tested at a higher amplitude to simulate the rough handling it might receive during shipping.
• Temperature Cycling Range
  • The chamber can perform temperature cycling within the range of -40°C to +180°C. This wide temperature range is crucial for testing electrical products that may be used in extreme climates or industrial environments. For instance, components used in outdoor power generation equipment may need to withstand high temperatures, while those in cold storage facilities or arctic applications may face extremely low temperatures. Temperature cycling also helps to evaluate the thermal expansion and contraction characteristics of products and their potential impact on performance and reliability.
• Humidity Cycling Range
  • The humidity cycling range of 10% to 98% relative humidity enables the assessment of product performance under different moisture levels. High humidity can cause condensation, corrosion, and other moisture-related issues, while low humidity can lead to drying and cracking. The chambers can accurately control the humidity levels and cycle them according to the ASTM D4169-16 standard, providing a comprehensive evaluation of product resistance to moisture.
• Testing Volume and Payload Capacity
  • The chamber offers customizable testing volumes, with options ranging from 1 m³ to 20 m³. The payload capacity can be adjusted according to the size and weight of the test samples, with a maximum capacity of up to 2000 kg. This flexibility allows for the testing of a wide variety of electrical products, from small electronic components to large industrial electrical assemblies.

4. Product Functions

• Accurate Simulation of Real-World Conditions
  • The primary function of the system is to provide a precise and reliable simulation of the combined vibration and environmental conditions that electrical products experience during their lifecycle. By accurately replicating these conditions, it allows manufacturers and researchers to evaluate the performance and durability of products. For example, in the consumer electronics industry, it can be used to test the reliability of smartphones, tablets, and laptops under different transportation and usage scenarios.
• Product Design Optimization and Quality Control
  • Through a series of tests on different product prototypes, the data obtained from the system can be used to optimize designs. Manufacturers can analyze the behavior of various materials and components under the specified environmental and mechanical stresses. For instance, an electrical equipment manufacturer can study the effect of temperature and humidity on the performance of a new transformer design and make adjustments to improve its reliability. The system also serves as a vital tool for quality control, ensuring that each batch of products meets the required standards and specifications.
• Research and Development Support
  • In the field of research and development, the combined vibration test system and climate chamber offer valuable insights. Researchers can use them to study the fundamental properties of materials and the interactions between different environmental and mechanical factors. They can explore new materials and technologies that are more resistant to vibration and environmental changes. For example, a research team may use the equipment to test the performance of a new type of insulation material and analyze its potential applications in high-voltage electrical equipment.
• Compliance Testing and Certification
  • The equipment is essential for conducting compliance testing to meet ASTM D4169-16 and other relevant industry standards. Many customers and regulatory bodies require electrical products to pass specific environmental and mechanical tests. The chamber can be used to perform the necessary tests, and the test results can be used to obtain product certifications and ensure market acceptance.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The customized vibration test system combined with a climate chamber is manufactured under strict quality control procedures. Each component, from the steel frame and insulation materials to the vibration system, temperature and humidity control units, and fixtures, is sourced from reliable suppliers and undergoes thorough inspection and testing. The assembly process is carried out by highly trained technicians in a clean and controlled environment. The equipment is calibrated and verified at multiple stages during production to ensure its accuracy and performance.
• Quality Certification and Validation
  Our system has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to ASTM D4169-16 and other international and national standards for vibration and environmental testing. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Consumer Electronics
  • A leading smartphone manufacturer used the system to test the durability of their new model. The tests involved subjecting the phones to a combination of vibration, temperature, and humidity conditions. The results showed that a particular component was prone to failure under high humidity and vibration. By redesigning the component and improving its sealing, the manufacturer was able to enhance the overall durability of the smartphone and reduce the number of warranty claims.
• Industrial Electrical Equipment
  • An industrial electrical equipment manufacturer tested a new series of motor controllers. The controllers were exposed to extreme temperature and humidity conditions while being subjected to vibration. The testing identified a problem with the thermal management of the controllers under high-temperature and vibration conditions. By modifying the heat sink design and using more durable components, the manufacturer was able to improve the performance and reliability of the motor controllers, ensuring their proper functioning in industrial applications.
• Telecommunications
  • A telecommunications company tested their outdoor base station equipment. The equipment was tested under a wide range of temperature, humidity, and vibration conditions as per ASTM D4169-16. The tests revealed a weakness in the equipment's enclosure, which could lead to water ingress and component damage. By improving the enclosure design and using a more corrosion-resistant material, the company was able able to enhance the equipment's resistance to environmental factors and reduce maintenance costs.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of electrical testing experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the customized system for their specific testing needs. We offer demonstrations and training, tailored to the electrical industry, to familiarize customers with the operation and functionality of the equipment before purchase. We also assist in selecting the appropriate test parameters and accessories based on the products or materials to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the system operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the tester for electrical product testing.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the customized vibration test system combined with a climate chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with ASTM D4169-16 and other electrical testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in vibration and environmental testing.
