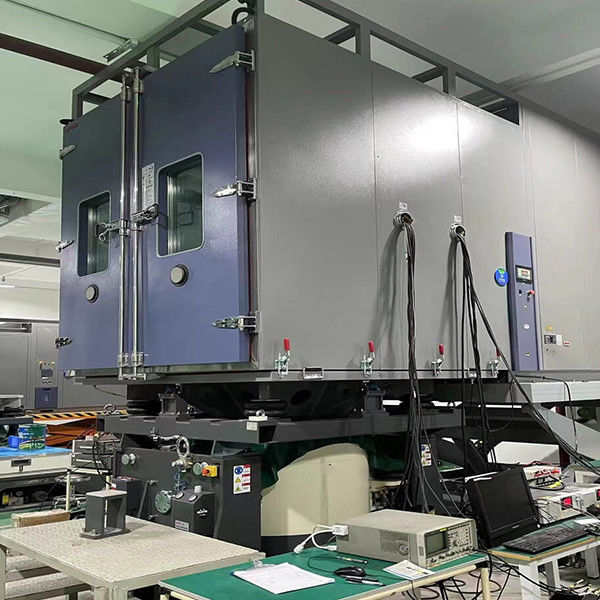

Vibration Shaker Climatic Chamber Meeting MIL STD-202g Method 201A Requirements

Large Image : Vibration Shaker Climatic Chamber Meeting MIL STD-202g Method 201A Requirements

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	VTHC-225

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Origin:	China
Material:	Stainless Steel	Controller:	Programmable LCD Touch Screen
Temp Accuracy::	0.5°C	Temp Uniformity:	0.5°C
Refrigerant:	Environmental Friendly R23/R404	Vibration Force:	2000kg.f(20kN)
Temp. Range:	-60°C To +180°C	Humdity Range:	10% To 98%
Highlight:	Vibration Shaker Climatic Chamber , MIL STD-202g Climatic Chamber , Vibration Shaker Climate Chamber

Vibration Shaker Climatic Chamber Meeting MIL STD-202g Method 201A Requirements

Product Specifications

Attribute	Value
Customized support	OEM ODM
Origin	China
Material	Stainless Steel
Controller	Programmable LCD Touch Screen
Temp accuracy	0.5°C
Temp uniformity	0.5°C
Refrigerant	Environmental friendly R23/R404
Vibration force	2000kg.f(20kN)
Temp. range	-60°C to +180°C
Humidity range	10% to 98%

Customized Climatic Chamber with Integrated Vibration Shaker

This advanced testing system combines environmental chamber capabilities with mechanical vibration testing to meet the rigorous MIL STD-202g Method 201A requirements for military, aerospace, and high-reliability industrial applications.

Key Features

Robust Chamber Construction Heavy-duty steel frame with corrosion-resistant coating and high-quality insulation materials for precise temperature/humidity control and vibration isolation.
Precision Environmental Control Maintains temperatures from -60°C to +180°C (±0.5°C) and humidity from 10% to 98% RH (±2%) using advanced refrigeration and humidity control systems.
High-Performance Vibration Shaker Generates vibration frequencies from 2 Hz to 2000 Hz with adjustable amplitudes up to ±75 mm displacement and maximum acceleration of 100 m/s².
Integrated Control System Programmable LCD touch screen controller for synchronized environmental and vibration testing with real-time monitoring and data acquisition.

Performance Parameters

Temperature Swing Rate Up to 5°C per minute for rapid thermal cycling simulations.

Humidity Change Rate Adjustable up to 10% RH per minute for dynamic humidity testing.

Testing Volume Options Customizable from 1 m³ to 20 m³ with payload capacity up to 2000 kg.

MIL STD-202g Method 201A Compliance

This system is specifically calibrated to perform combined environmental and vibration testing according to military standard requirements, ensuring valid test results for defense and aerospace applications.
