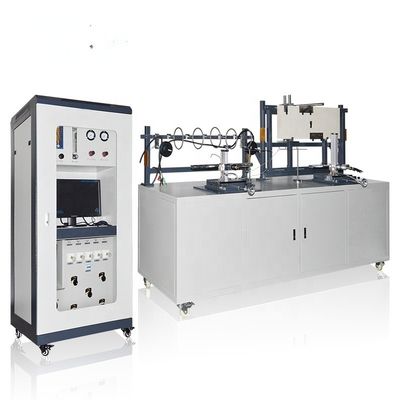

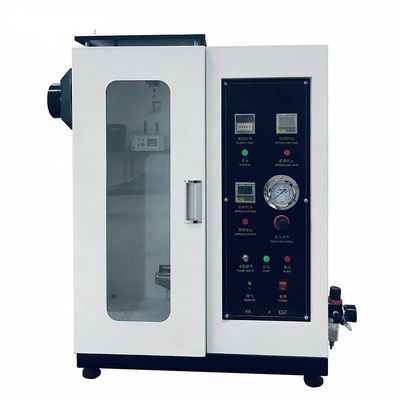

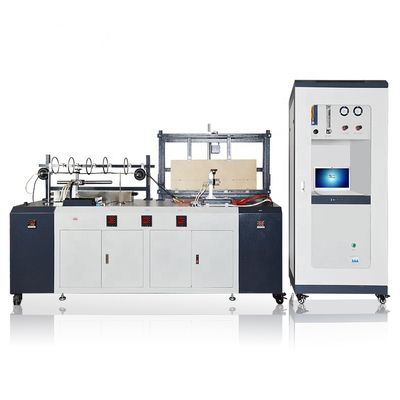

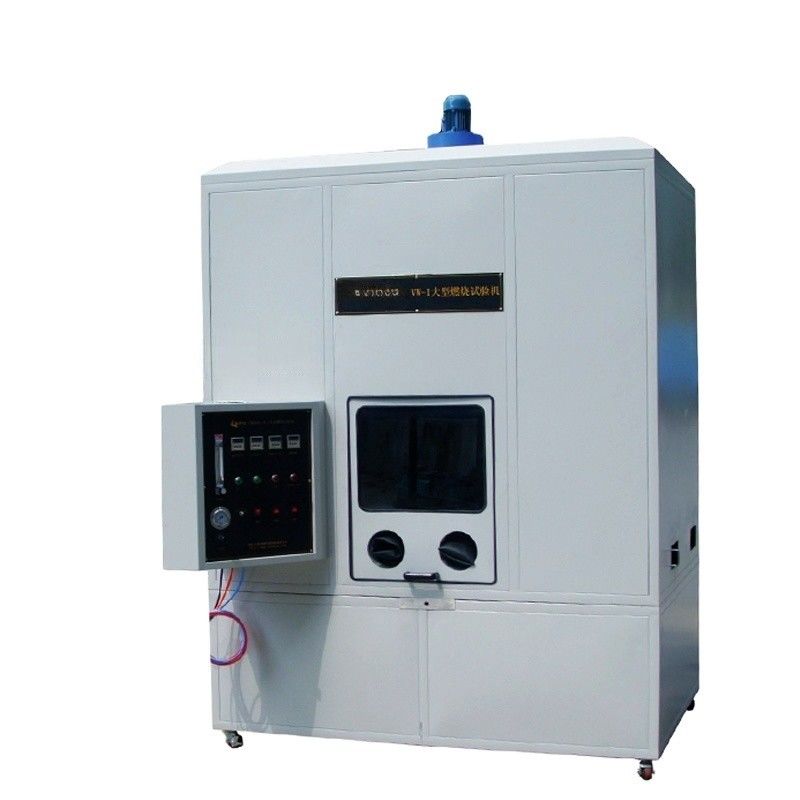

Customized Flame Resistance Testing Equipment for Fire Safety Analysis

Our customized flame resistance testing equipment serves as a critical tool for evaluating material performance under fire conditions across industries including construction, manufacturing, aerospace, and automotive. Engineered for precision and reliability, this equipment provides comprehensive data to ensure compliance with international fire safety standards.

• Constructed with high-grade heat-resistant alloys and steels
• Interior chambers withstand temperatures exceeding 1500°C
• Double-layered insulated access doors with high-performance sealing
• Heat-strengthened viewing windows for real-time monitoring

• Temperature range from ambient to 1200°C with ±2°C accuracy
• Advanced PID control algorithm with programmable temperature profiles
• Versatile flame generation with adjustable intensity and fuel types
• Precision air-fuel ratio control from 1:1 to 20:1

• High-speed data sampling at 10,000 samples per second
• Multi-sensor monitoring of temperature, flame characteristics, smoke density, and gas composition
• Specialized software for detailed data analysis and reporting

• Small: 0.3m × 0.3m × 0.3m
• Medium: 0.6m × 0.6m × 0.6m
• Large: 1m × 1m × 1m and above

• Temperature ramp rate: 0.5°C to 100°C per minute
• Flame intensity up to several MW/m²
• Fuel flow rate from milliliters to liters per minute
• Smoke density detection sensitivity: 0.005% opacity

Our equipment meets rigorous international standards including:

• ASTM E84 (Surface Burning Characteristics)
• ASTM E1354 (Heat and Visible Smoke Release Rates)
• ASTM E662 (Smoke Density)
• ISO 5660 (Reaction-to-Fire Tests)
• ISO 1716 (Calorific Value Determination)

• Testing wall panels, flooring materials, and insulation
• Evaluating fire resistance of building components

• Circuit board flame resistance testing
• Fabric and upholstery fire safety evaluation

• Aircraft interior material testing
• Vehicle wiring harness fire resistance assessment

Our fire safety experts provide technical guidance to help select the optimal configuration for your testing requirements.

• On-site installation and commissioning
• Regular maintenance and calibration services
• 24/7 technical support and troubleshooting

Comprehensive operator training and ongoing technical support ensure you maximize the capabilities of your testing equipment.
