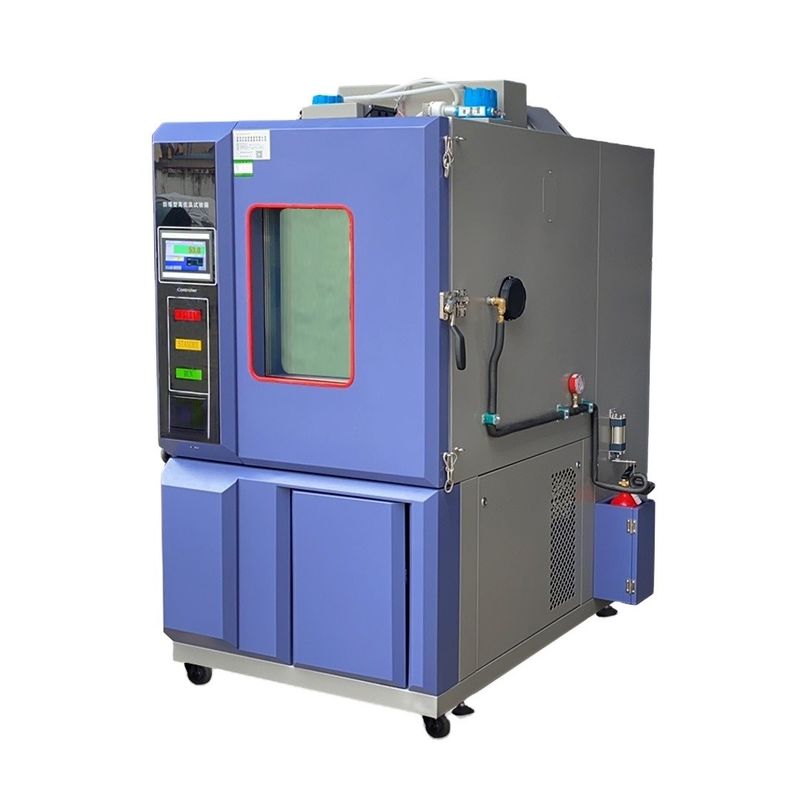

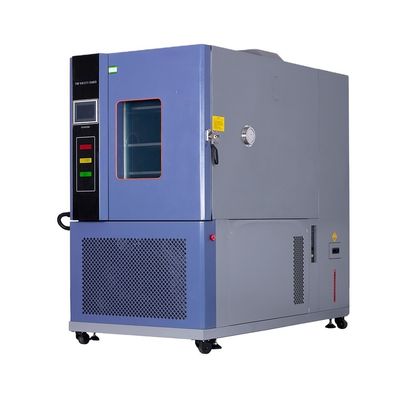

Customized Environmental Test Chambers For Home Appliances

In the highly competitive home appliance industry, ensuring durability, functionality, and safety is essential. Our Customized Environmental Test Chambers simulate real-world conditions that appliances encounter during their lifespan, enabling manufacturers to identify and address potential issues before products reach consumers.

These specialized chambers evaluate performance of home appliances including refrigerators, washing machines, air conditioners, microwave ovens, and televisions. Designed for manufacturers, quality control labs, and research institutions, they subject appliances to temperature, humidity, and mechanical stresses to optimize designs and improve product reliability.

• Sturdy and Spacious Design
  Constructed with strong steel framework and corrosion-resistant finish. Features thermally conductive interior lining, heavy-duty door with reliable sealing, and tempered glass viewing window.
• Precision Environmental Control

  Temperature: Range from -30°C to +60°C (±1°C accuracy) with programmable profiles.

  Humidity: 20% to 90% RH (±3% accuracy) with steam injection and condenser dehumidifier.

  Dust Simulation: Adjustable particle sizes and concentrations for testing air conditioners and vacuum cleaners.

• Mechanical Stress Testing

  Vibration: 5 Hz to 500 Hz frequency range with adjustable amplitudes.

  Door/Lid Cycling: Automated testing of hinges and seals with controlled force and frequency.

• Advanced Data Acquisition
  Comprehensive sensor suite monitoring temperature, humidity, vibration, power consumption, water and air flow. Data sampling at 1000 samples/sec with real-time analysis capabilities.
• Safety and Compliance
  Automatic shutdown system, fire suppression, ventilation for harmful gases, and compliance with IEC 60335 and other industry standards.

• Chamber Size: Available from small (few cubic meters) to large (20+ cubic meters)
• Temperature Cycling: 1-3 cycles/day with ramp rates from 0.5°C to 5°C per minute
• Humidity Cycling: 30 minutes to 2 hours transition time
• Vibration Range: 10 Hz to 200 Hz frequency, 1 mm to 10 mm amplitude
• Data Acquisition: 500 samples/sec recording rate
