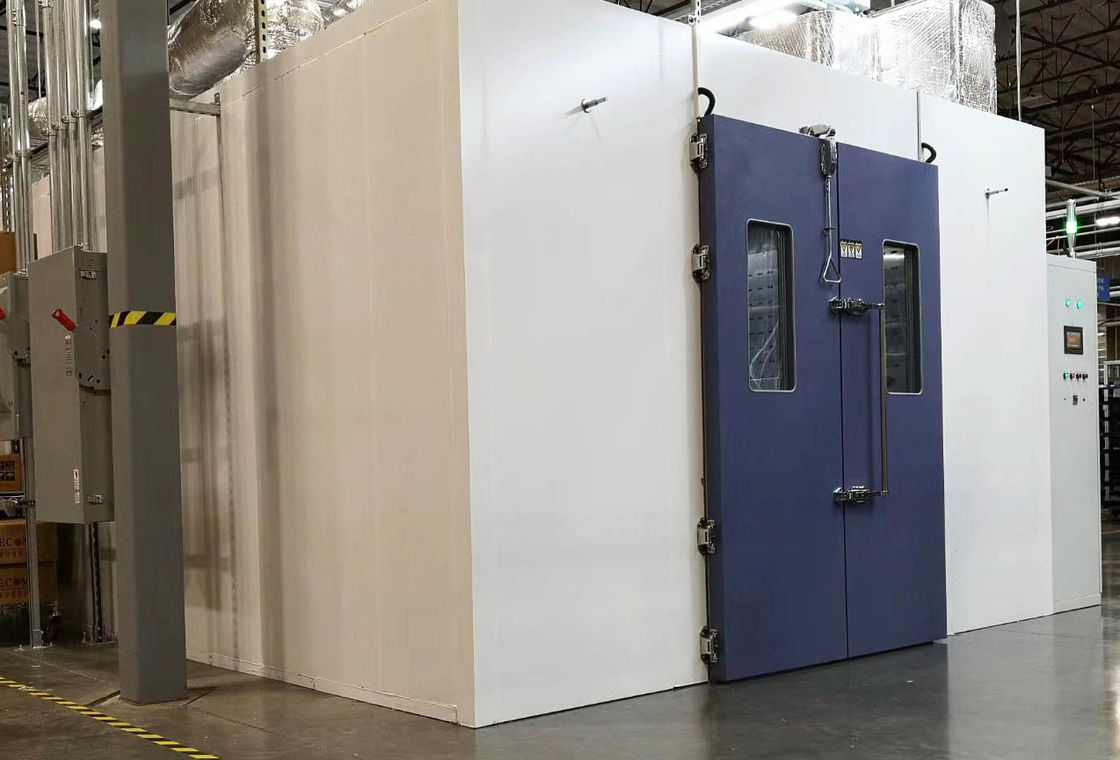

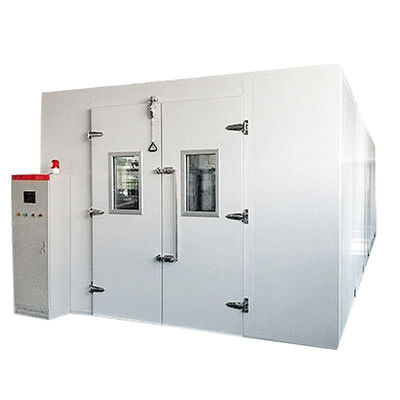

Programmable Walk In Chamber For Car Electronics And Electrical System Testing

In the modern automotive landscape, the role of electronics and electrical systems has become indispensable. These systems govern everything from engine control and safety features to in-car entertainment and connectivity. Our Customized Walk-In Environmental Chamber is specifically designed for testing car electronics and electrical systems, serving as a crucial tool in ensuring the seamless operation and reliability of these vital components.

• Spacious and Secure Design

  Constructed with a heavy-duty framework of corrosion-resistant stainless steel or high-strength alloy for durability and stability. Features EMI shielding material, airtight sealing mechanism with multi-point locking system, and toughened EMI-shielded viewing window.

• Precision Environmental Control Systems

  Temperature range: -50°C to +120°C (±0.5°C accuracy). Humidity control: 5% to 95% RH (±2% RH accuracy). Includes vibration and shock simulation (5Hz-2000Hz, up to 50mm amplitude) and comprehensive EMI testing capabilities (10kHz-18GHz range).

• Advanced Instrumentation and Data Acquisition

  Comprehensive sensor suite with high-speed data acquisition (500 samples/sec). Monitors temperature, humidity, vibration, EMI, and electrical parameters. Compatible with automotive-specific analysis software.

• Safety and Compliance Features

  Automatic shutdown system, fire suppression, EMI radiation protection. Complies with ISO 16750, CISPR 25, SAE J1455, and other automotive testing standards.

• Chamber Size: Available in various configurations from 5m³ to 20m³+ interior volume
• Temperature Cycling: 2-4 cycles/day between -30°C to +80°C
• Humidity Cycling: Rapid adjustment within 10-30 minutes
• Vibration Parameters: 5Hz-2000Hz frequency, up to 50mm amplitude
• Shock Parameters: 10-50ms duration, up to 1000m/s² acceleration
• EMI Testing: 10kHz-18GHz frequency range, adjustable field strength
• Data Acquisition: 500 samples/second sampling rate
