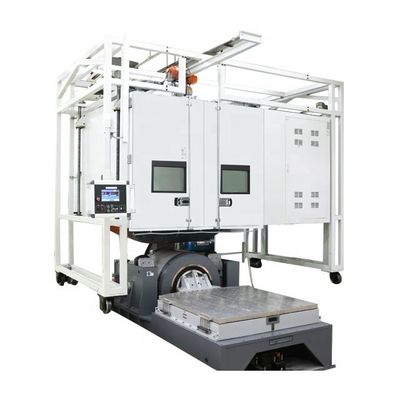

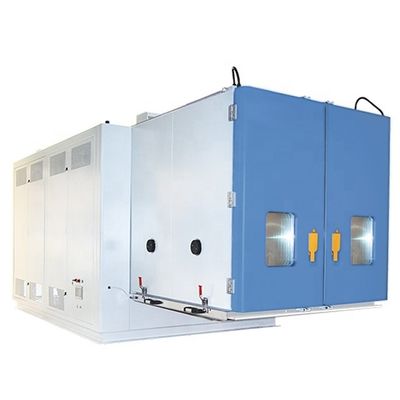

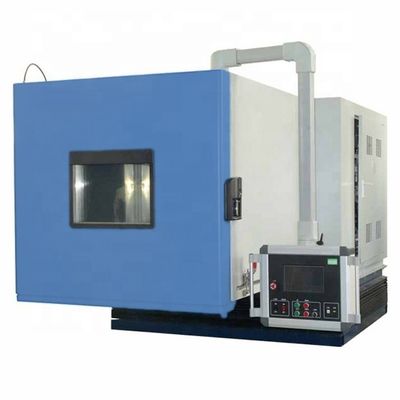

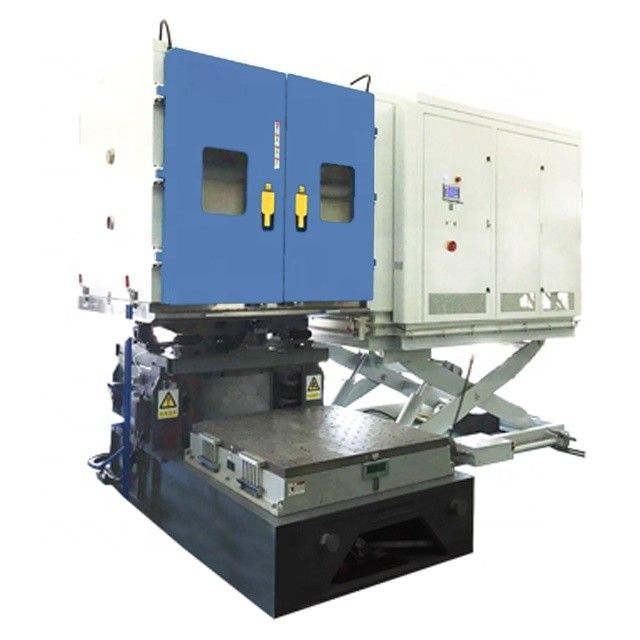

AGREE Climatic Environmental Test Chamber With R23/R404 Refrigerant

1. Product Name and Purpose

2. Product Features

• Robust and Integrated Construction
  • The chamber is constructed with a heavy-duty framework, typically made of high-strength steel, to withstand the rigors of simultaneous temperature, humidity, and vibration testing. The interior is lined with a non-reactive and smooth surface, such as stainless steel or a specialized polymer, to prevent any interaction between the chamber environment and the tested specimens. The insulation is of top-notch quality, ensuring minimal heat and moisture transfer, which is essential for maintaining precise temperature and humidity control. The vibration system is integrated seamlessly into the chamber structure, with vibration tables or platforms that can be adjusted to accommodate different sizes and weights of samples. The door of the chamber is engineered for a tight seal, featuring a reliable locking mechanism and a heavy-duty gasket. It also includes a large viewing window, usually made of tempered glass with anti-fog and anti-scratch properties, allowing for continuous visual monitoring of the testing process without disturbing the internal environment.
• Precision Environmental and Vibration Control Systems
  • Temperature Control: The temperature control system is highly accurate and can maintain a wide temperature range, typically from -70°C to +150°C, with an accuracy of ±0.3°C. It utilizes advanced refrigeration and heating technologies, along with a sophisticated feedback loop and multiple temperature sensors strategically placed throughout the chamber. This ensures uniform temperature distribution and rapid temperature change capabilities, essential for efficient testing. The system also has built-in safety features to prevent overheating or overcooling, protecting both the samples and the chamber itself.
  • Humidity Control: The humidity control system is equally precise, capable of adjusting the relative humidity from 5% to 95% RH, with an accuracy of ±2% RH. The chamber is equipped with a high-efficiency humidifier and dehumidifier, which work in harmony to achieve rapid and accurate humidity adjustments. Special care is taken to prevent condensation, which could affect the test results and damage the samples. The system also features a dew point control function, which is crucial for maintaining the correct moisture balance in the chamber.
  • Vibration Control: The vibration control system is designed to generate a wide range of vibration frequencies and amplitudes. It can simulate various vibration profiles, from simple sinusoidal waves to complex random vibrations that mimic real-world conditions such as those experienced during transportation or in operational machinery. The system is highly programmable, allowing users to create and store custom vibration sequences. It also has built-in safety features to prevent excessive vibrations that could damage the samples or the chamber. The control panel for the vibration system is user-friendly and intuitive, enabling easy setup and adjustment of vibration parameters.
  • Programmability: The overall control panel of the chamber is highly programmable, allowing users to create and store complex test profiles that combine temperature, humidity, and vibration settings. This enables the simulation of a wide variety of environmental and operational scenarios. For example, it can mimic the conditions that a military electronic device might experience during a mission, including rapid temperature changes, high humidity, and intense vibrations. The control panel displays the current status of all parameters, including temperature, humidity, vibration frequency, and amplitude, as well as the progress of the test program.
• Advanced Instrumentation and Data Acquisition
  • The chamber is outfitted with a comprehensive suite of sensors. Temperature sensors are distributed evenly to detect any temperature gradients and ensure a homogeneous thermal environment. Humidity sensors provide real-time data on the relative humidity levels. Vibration sensors measure the amplitude, frequency, and acceleration of the vibrations. These sensors are connected to a state-of-the-art data acquisition system that records and stores all the measured data. The data can be accessed and analyzed in real-time or retrieved later for in-depth studies. The data acquisition system is highly flexible and can be integrated with external software and databases, facilitating seamless data transfer and analysis. It can also be configured to send notifications and reports automatically, saving time and effort for the users. Additionally, the control panel includes built-in alarms and safety features that alert users in case of any abnormal conditions, such as temperature or humidity excursions outside the set limits, power failures, or equipment malfunctions.

3. Specific Parameters

• Volume and Dimensions: The chamber is available in various sizes to accommodate different testing requirements. The volume can range from a few cubic feet for testing small components to larger chambers with several cubic meters of space for testing more substantial products or multiple samples. The interior dimensions are carefully designed to optimize the distribution of temperature, humidity, and vibration, ensuring that all parts of the tested samples experience consistent environmental and mechanical stress. The external dimensions are configured to fit within a standard laboratory or production facility, taking into account factors such as access, ventilation, and clearance.
• Temperature Uniformity: The temperature uniformity within the chamber is maintained within ±0.5°C. This ensures that all parts of the tested samples experience a similar thermal environment, which is crucial for obtaining accurate and reliable test results.
• Humidity Uniformity: The humidity uniformity is within ±3% RH. This level of consistency in humidity distribution allows for precise testing of samples that are sensitive to moisture levels.
• Vibration Uniformity: The vibration system is designed to provide uniform vibration across the testing platform. The variation in vibration amplitude and frequency is kept within a very small tolerance, typically ±5%, ensuring that all parts of the sample are subjected to the same mechanical stress.
• Stability: Both the temperature and humidity stability are excellent, with minimal fluctuations over time. The vibration system also offers high stability, maintaining the set vibration parameters accurately throughout the test. This allows for long-term testing and the evaluation of a sample's performance under stable environmental and mechanical conditions, as well as its ability to withstand changes over extended periods.

4. Product Functions

• Accurate Simulation of Complex Environmental and Operational Conditions
  • The primary function of this chamber is to provide a highly accurate and realistic simulation of specific temperature, humidity, and vibration conditions. By precisely controlling these parameters, it allows users to evaluate how products and samples will behave in various real-world situations. For example, in the aerospace industry, it can test the performance of avionics components under the extreme temperature and humidity changes that occur at high altitudes, combined with the vibrations experienced during flight. In the automotive industry, it can assess the durability of engine parts and electronics under the combined stress of engine vibrations, temperature fluctuations, and humidity levels.
  • The ability to create complex test profiles that combine different environmental and vibration conditions is also a valuable function. This can help in uncovering potential weaknesses or failure points in products that may not be evident under single-parameter testing. For instance, a product that functions well under static temperature and humidity conditions may fail when subjected to simultaneous vibrations and rapid temperature changes. The chamber can accurately replicate such scenarios to determine the product's true durability and performance limits.
• Enhanced Product Quality and Research Capabilities
  • Through comprehensive testing in the chamber, manufacturers can identify and address potential issues in their products. If a product shows signs of degradation or failure under specific temperature, humidity, and vibration conditions, appropriate measures can be taken, such as modifying the design, changing the material composition, or improving the manufacturing process. This leads to the development of more stable and reliable products, reducing the risk of failures and recalls. In the research field, it allows for the exploration of new materials and the understanding of their properties under combined environmental and mechanical stress, which can lead to significant scientific breakthroughs.
  • The test chamber also serves as a valuable tool for quality control. By subjecting products to standardized tests that mimic real-world conditions, manufacturers can ensure that their products meet the required quality and performance standards. This helps in building customer trust and maintaining a good reputation in the market.
• Compliance with Industry Standards and Regulations
  • Many industries have strict standards and regulations regarding product testing under specific temperature, humidity, and vibration conditions. The Climatic Environmental AGREE Test Chamber is a reliable tool for ensuring compliance. For example, in the aerospace and defense industries, components must meet stringent standards for reliability and durability. In the electronics industry, products need to withstand a range of environmental and mechanical stresses to ensure proper operation. By using this chamber to conduct tests in accordance with relevant standards, manufacturers can prove that their products meet the necessary criteria, facilitating market access and enhancing consumer confidence. Regulatory bodies rely on accurate test results obtained from such chambers to enforce safety and quality regulations.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The Climatic Environmental AGREE Test Chamber is manufactured under strict quality control procedures. Each component, from the insulation panels to the environmental and vibration control systems, is carefully sourced and inspected for quality and performance. The assembly process is carried out by highly trained technicians in a clean and controlled environment, ensuring the proper installation and functionality of all parts.
  • The calibration of the temperature, humidity, vibration, and other sensors and control systems is a critical and regular part of the manufacturing process. It is performed using traceable reference standards to guarantee the accuracy and reproducibility of the test results. Rigorous quality audits and inspections are conducted at various stages of production to maintain the highest level of product quality.
• Quality Certification and Validation
  Our chamber has obtained relevant quality certifications and has been validated by independent testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the relevant international and national standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Aerospace Industry
  • An aerospace component manufacturer used the Climatic Environmental AGREE Test Chamber to test a new type of satellite communication module. The tests, which included exposure to extreme cold and vacuum conditions combined with high-frequency vibrations, revealed a problem with the solder joints on the circuit board. By implementing a new soldering technique and using more vibration-resistant components, they were able to improve the module's reliability and ensure its proper functioning in space.
  • A research institute in the aerospace field used the chamber to study the effects of temperature and humidity cycling combined with random vibrations on the performance of composite materials used in aircraft structures. The data obtained led to the development of new composite formulations and manufacturing processes that significantly increased the strength and durability of these materials.
• Defense Industry
  • A defense contractor used the test chamber to evaluate the durability of a new generation of military-grade electronics. The tests, which simulated the harsh environmental and mechanical conditions of a battlefield, identified a weakness in the sealing of the electronic enclosures. By improving the enclosure design and using more durable sealing materials, they were able to enhance the equipment's resistance to moisture, dust, and vibrations, ensuring its reliable operation in the field.
  • Another defense-related research center used the Climatic Environmental AGREE Test Chamber to study the performance of weapon systems under extreme temperature and humidity conditions combined with the vibrations caused by firing. The results helped in optimizing the design and maintenance procedures of these systems, increasing their accuracy and reliability.
• Electronics Industry
  • An electronics manufacturer used the chamber to test a new smartphone model. The tests under high temperature, humidity, and vibration conditions showed that the battery's connection to the motherboard was prone to loosening. By redesigning the battery connector and improving the shock-absorbing mechanisms, they were able to enhance the product's durability and user experience.
  • A semiconductor research company used the Climatic Environmental AGREE Test Chamber to study the behavior of new chip designs under different temperature, humidity, and vibration profiles. The data helped them optimize the packaging and thermal management of the chips, leading to increased performance and reliability.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the Climatic Environmental AGREE Test Chamber for their specific testing needs. We offer demonstrations and training to familiarize customers with the operation and functionality of the equipment before purchase. We also assist in selecting the appropriate test methods and accessories based on the products to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the test chamber operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the equipment.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Climatic Environmental AGREE Test Chamber and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with relevant standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies.
