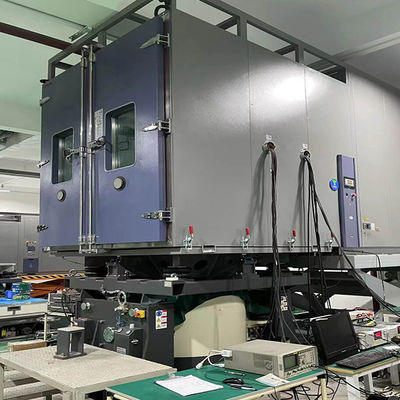

R23/R404 Vibration Test Chambers For NES M0131 High Temp Testing Passenger Parts
| Attribute |
Value |
| Customized support |
OEM ODM |
| Origin |
China |
| Material |
Stainless Steel |
| Controller |
Programmable LCD Touch Screen |
| Temp accuracy |
0.5°C |
| Temp uniformity |
0.5°C |
| Refrigerant |
Environmental friendly R23/R404 |
| Vibration force |
2000kg.f(20kN) |
| Temp. range |
-60°C to +180°C |
| Humdity range |
10% to 98% |
HALT HASS & AGREE Vibration Test Chambers for NES M0131 High Temp Testing Passenger Parts
In the automotive domain, the safety and comfort of passengers hinge on the reliability and durability of every component within the vehicle. The HALT HASS & AGREE Vibration Test Chambers, meticulously crafted for NES M0131 High Temp testing of passenger parts, emerge as a cornerstone in the pursuit of automotive excellence.
Product Name and Purpose
This state-of-the-art vibration test chamber is dedicated to subjecting passenger parts to the exacting NES M0131 High Temp testing protocol. It caters to automotive manufacturers, Tier 1 suppliers, and research institutions.
The primary objective is to evaluate the performance and integrity of passenger parts such as seat components, dashboard elements, door trims, and interior fittings under the combined duress of high temperatures and vibration. By replicating the most extreme and realistic conditions that these parts may face during a vehicle's operational lifespan, manufacturers can unearth potential design flaws, optimize materials and manufacturing processes, and ultimately enhance the overall quality and safety of the automotive passenger experience.
Product Features
Robust and Thermally Stable Chamber Construction
The chamber is constructed with heavy-duty, heat-resistant materials that can withstand the rigors of high-temperature and vibration testing. The walls are fabricated from a combination of high-strength steel and advanced thermal insulation layers, ensuring minimal heat loss and a stable internal temperature environment.
The interior is designed to accommodate a diverse range of passenger parts, with adjustable racks and fixtures that guarantee proper positioning and uniform exposure to both heat and vibration. The door is equipped with a precision sealing mechanism and a heat-resistant viewing window, enabling operators to monitor the testing process without compromising the integrity of the chamber's internal conditions.
Precision Temperature and Vibration Control Systems
Temperature Control: Capable of achieving a wide temperature range from ambient to +150°C with an accuracy of ±0.3°C. The system employs state-of-the-art heating elements, along with a sophisticated PID controller and multiple temperature sensors, to maintain a precise and uniform temperature throughout the chamber.
Vibration System: The chamber is outfitted with a high-performance vibration platform that can generate a broad spectrum of vibration frequencies and amplitudes. It can produce vibrations from 5 Hz to 2000 Hz with amplitudes up to 50 mm. The vibration system is engineered to replicate the diverse vibration sources experienced in a vehicle.
Intuitive Control Panel and Data Acquisition Interface
The control panel is designed with user-friendliness in mind, providing operators with effortless access to all test parameters. They can easily set and adjust temperature levels, vibration frequencies, amplitudes, and test durations.
The chamber is integrated with a comprehensive data acquisition system that records all pertinent test data. This encompasses temperature histories, vibration waveforms, and any observable changes in the physical or mechanical properties of the passenger parts.
Safety Features and Alarms
To ensure the safety of operators and the protection of the test specimens and the chamber itself, a suite of safety features is incorporated. These include over-temperature and over-vibration protection systems, emergency stop buttons, and alarms for abnormal temperature fluctuations, vibration malfunctions, or any other equipment failures.
Specific Parameters
Temperature Range and Accuracy
The broad temperature range from ambient to +150°C with ±0.3°C accuracy provides a comprehensive testing spectrum. This allows manufacturers to assess the performance of passenger parts not only under normal operating temperatures but also in extreme heat scenarios.
Vibration Parameters
The vibration system's ability to produce frequencies from 5 Hz to 2000 Hz and amplitudes up to 50 mm allows for a thorough evaluation of the passenger parts. Low-frequency vibrations can mimic the slow oscillations caused by engine idling or driving on a bumpy road, while high-frequency vibrations can replicate the rapid vibrations associated with high-speed rotating components or electrical switching.
