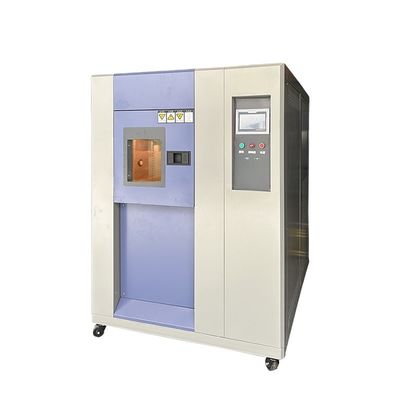

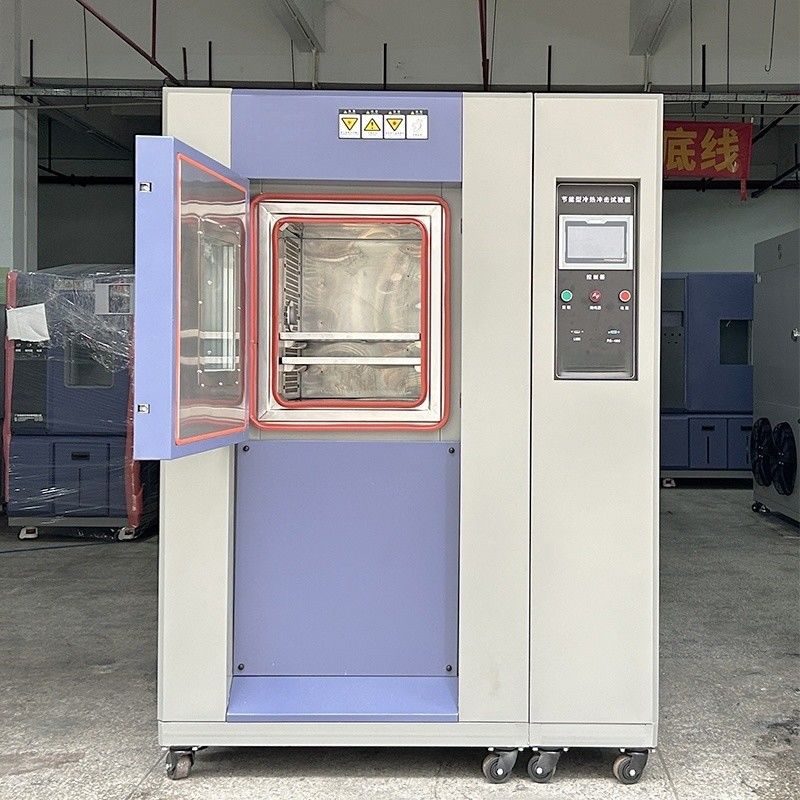

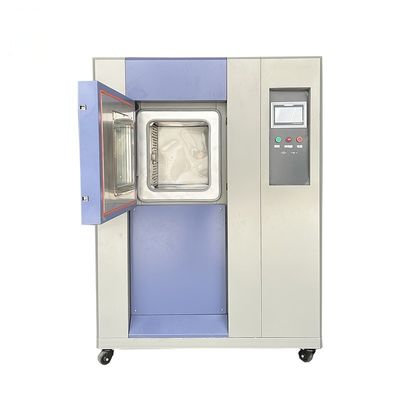

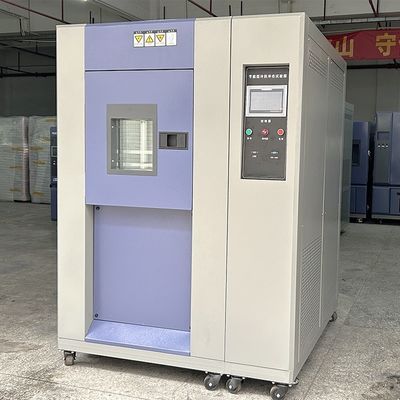

R23/R404 Refrigerant Thermal Shock Chambers For 2006/42/EC Test Standard

Large Image : R23/R404 Refrigerant Thermal Shock Chambers For 2006/42/EC Test Standard

Product Details:

Place of Origin:	CHINA
Brand Name:	PRECISION
Certification:	ISO
Model Number:	THC-800

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6000
Packaging Details:	Standard export packaging
Delivery Time:	15 working days
Payment Terms:	T/T
Supply Ability:	100/month

Contact Now

Detailed Product Description

Customized Support:	OEM ODM	Origin:	China
Material:	Stainless Steel	Controller:	Programmable LCD Touch Screen
Temp Accuracy::	0.5°C	Temp Uniformity:	0.5°C
Refrigerant:	Environmental Friendly R23/R404
Highlight:	R404 Refrigerant Thermal Shock Chambers , 2006/42/EC Thermal Shock Chambers , R23 Refrigerant Thermal Shock Chambers

R23/R404 Refrigerant Thermal Shock Chambers For 2006/42/EC Test Standard

Attribute	Value
Customized support	OEM ODM
Origin	China
Material	Stainless Steel
Controller	Programmable LCD Touch Screen
Temp accuracy	0.5°C
Temp uniformity	0.5°C
Refrigerant	Environmental friendly R23/R404

Custom Thermal Shock Chambers for 2006/42/EC Test Standard

Designed specifically for machinery manufacturing compliance, these chambers serve as essential tools for evaluating component reliability and safety under extreme temperature conditions.

Product Purpose

This thermal shock chamber subjects machinery components to rigorous testing per 2006/42/EC standards, helping manufacturers assess durability against rapid temperature changes. Ideal for testing gears, bearings, shafts, and housings to optimize material selection and manufacturing processes.

Key Features

Robust Chamber Construction High-strength steel walls with advanced insulation, reliable sealing mechanism, and viewing window. Unique interior configuration creates distinct hot/cold zones for uniform temperature transitions.
Precision Temperature Control Range: -60°C to +180°C with ±0.5°C accuracy. Rapid zone switching in minutes replicates real-world temperature shocks.
Intuitive Control System Programmable LCD touch screen for setting test parameters, real-time monitoring, and comprehensive data acquisition with report generation.
Advanced Safety Features Over-temperature/current protection, emergency stops, alarm systems, and ventilation for safe operation.

Technical Specifications

Temperature Range: -60°C to +180°C (±0.5°C accuracy)

Cycle Parameters: 10-1000+ cycles with adjustable dwell times

Testing Volume: 2 m³ to 10 m³ (customizable)

Payload Capacity: Up to several tons

Data Sampling: 500 Hz frequency with 0.1°C resolution

Compliance & Functionality

Accurately simulates 2006/42/EC test conditions to ensure component compliance and safety. Enables manufacturers to validate performance under real-world thermal shock scenarios.
