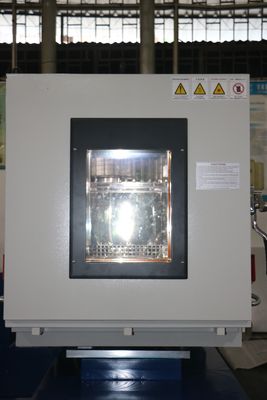

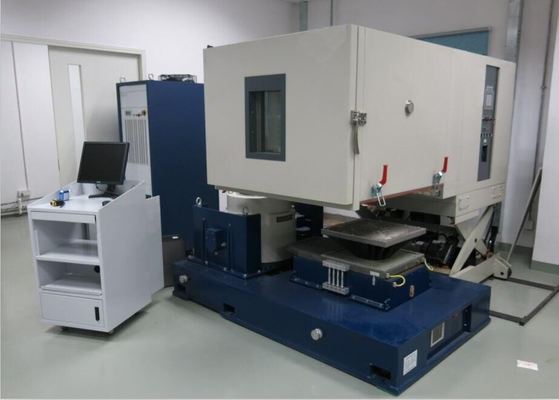

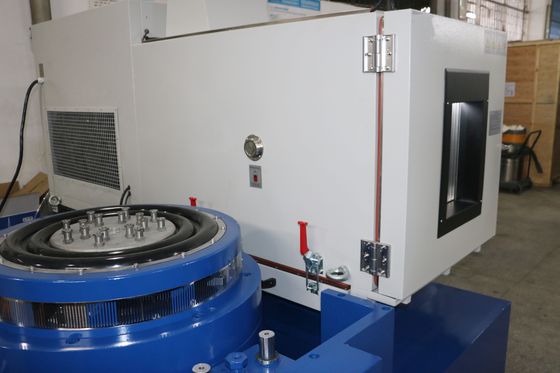

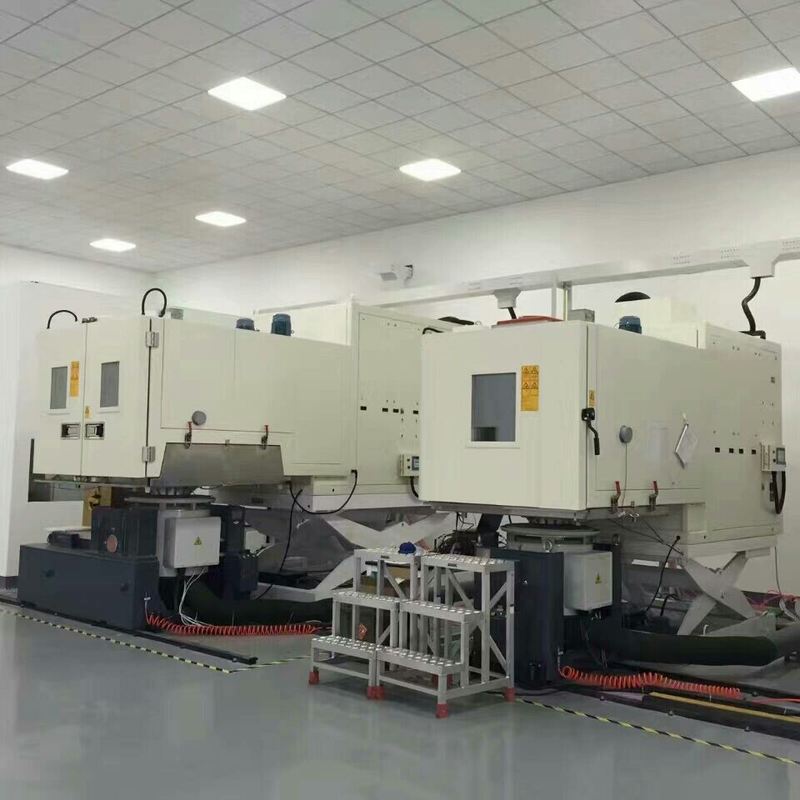

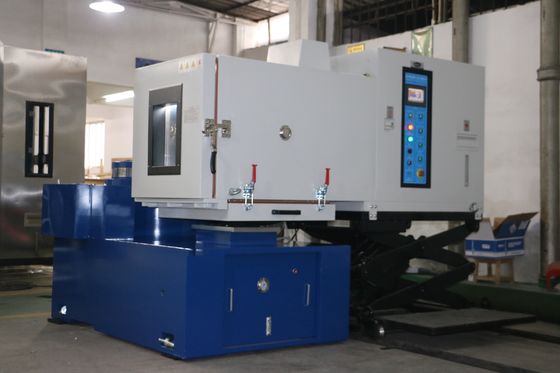

MIL-STD-810 Standard Climatic Chamber Combined with Vertical and Horizontal Vibration Shaker

Our integrated MIL-STD-810 Standard Climatic Chamber combined with a Vertical and Horizontal Vibration Shaker represents the ultimate solution for rigorous environmental stress testing of products designed for military and extreme environments. This powerful system allows you to simultaneously subject your components and systems to the full spectrum of MIL-STD-810 climatic conditions (temperature and humidity) alongside precise, multi-axis vibration (vertical and horizontal). By accurately simulating the combined, synergistic stresses encountered in the field—from harsh global climates to battlefield vibrations and transport shocks—our equipment is critical for ensuring unparalleled durability, reliability, and safety, accelerating MIL-STD qualification, and guaranteeing mission readiness.

Key Features

• Full MIL-STD-810 Compliance: Engineered to precisely execute combined environmental and dynamic test methods outlined in MIL-STD-810H (e.g., Method 514.8 Vibration, Method 501.7/502.7 High/Low Temperature, Method 507.6 Humidity, and others as applicable).

• Integrated Multi-Stress Testing: Conducts simultaneous vertical/horizontal vibration, wide-range temperature, and humidity testing in a single, seamless operation, providing the most realistic and accelerated simulation of complex military and operational environments.

• Vertical & Horizontal Vibration Capability: Features a robust electrodynamic shaker with a slip table, allowing for both vertical (Z-axis) and horizontal (X & Y-axis) vibration testing without re-fixturing. This enables comprehensive multi-directional stress application.

• Wide Range Climatic Chamber: The environmental chamber offers a broad spectrum of temperature capabilities (e.g., from −70∘C to +180∘C) and precise humidity control (e.g., 20% to 98% RH), crucial for simulating diverse global climates.

• High-Precision Electrodynamic Shaker: Provides accurate, repeatable, and controlled generation of complex vibration profiles including sine, random, shock, and mixed-mode tests, essential for meeting stringent MIL-STD dynamic requirements.

• Advanced Integrated Control System: A powerful, intuitive controller seamlessly synchronizes multi-axis vibration, temperature, and humidity cycles. This enables precise programming and execution of complex, multi-variable MIL-STD test sequences.

• Comprehensive Data Acquisition: Continuously monitors and records all environmental parameters (temperature, humidity) and vibration data (acceleration, displacement, PSD), providing detailed insights and auditable data required for MIL-STD compliance reports.

• Robust & Durable Construction: Built with industrial-grade components, a reinforced structure, and high-quality stainless steel interior for longevity and reliability under continuous, demanding combined-stress operation.

• Customizable Test Fixtures: Our engineering team designs and manufactures application-specific fixtures to securely mount diverse military-grade products, optimizing stress transmission and ensuring test integrity.

• Enhanced Safety Protocols: Incorporates multiple safety interlocks, emergency stops, and protection mechanisms to safeguard both the equipment and valuable test articles.

Applications

• Aerospace & Defense Systems: Full qualification of avionics, missile components, ground support equipment, and ruggedized electronics for performance in harsh climatic conditions coupled with multi-axis flight or operational vibrations.

• Military Vehicle Components: Durability testing of components, sub-assemblies, and battery packs for tanks, armored vehicles, and tactical trucks under combined off-road multi-axis vibration, extreme heat, cold, and humidity.

• Naval & Marine Equipment: Reliability validation of shipboard electronics, communication systems, and critical components against combined marine environmental factors and multi-directional ship vibrations.

• Ruggedized Portable Devices: Ensuring the robustness of military communication devices, sensors, and field equipment in diverse, unpredictable combat and deployment conditions.

• Regulatory Compliance & Certification: Essential for achieving necessary military certifications and clearances (e.g., MIL-STD-810H) for market entry and deployment.

• Research & Development: Accelerating the design and validation cycles for new and next-generation military technologies by understanding their behavior in multi-stress environments.

Benefits

• Guaranteed MIL-STD-810 Compliance: Ensures your products meet the highest military standards for vibration, temperature, and humidity, facilitating critical certifications and deployments.

• Unmatched Reliability & Durability: Proactively identifies and mitigates potential failure points, guaranteeing robust performance in extreme operational and combat environments.

• Accelerated Qualification: Streamlines the complex and lengthy MIL-STD testing process, significantly speeding up market entry for defense-related products.

• Most Realistic Simulation: Combined multi-axis vibration with climatic extremes provides the most accurate assessment of product performance under real-world synergistic stresses.

• Comprehensive Data & Reporting: Generates rich, synchronized data for in-depth analysis, contributing to superior design optimization and robust validation reports.

• Reduced Field Failures: Minimizes costly repairs, replacements, and operational disruptions in critical military and defense applications.

Technical Specifications

Shaker

Ready to secure the qualification of your products to the most rigorous MIL-STD standards under combined environmental extremes? Contact our experts today to discuss your requirements for a MIL-STD-810 Standard Climatic Chamber Combined with a Vertical and Horizontal Vibration Shaker.
